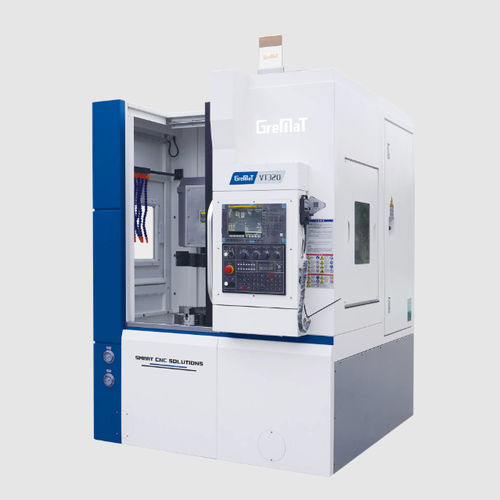

CNC turning center VT320vertical2-axisA2-5
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Spindle mount
- A2-5
- Number of tool stations
- 12 tools, 8 tools
- Drive system
- servo-driven
- Performance
- high-speed
- Other characteristics
- compact
- Diameter
450 mm
(17.72 in)- Spindle speed
2,500 rpm
(15,707.963 rad.min-1)- Maximum cutting diameter
320 mm
(13 in)- Axe X
300 mm
(12 in)- Axe Z
400 mm
(16 in)- Nominal power
15 kW, 18 kW
(20.4 hp, 24.5 hp)- Overall lenght
1,600 mm
(63 in)- Overall width
2,000 mm
(79 in)- Overall height
2,200 mm
(87 in)- Weight
5,500 kg
(12,125 lb)
Description
Capacity
Max. cutting height - mm - 400
Chuck
Chuck type - Hydraulic chuck
Chuck size - inch - 10"
Turret
Turret center height - mm - 100
Tool shank size - mm - 25 ×25, *BMT55
Others
Power consumption - kVA - 18
VIDEO
Catalogs
CNC turning center VT320
6 Pages
