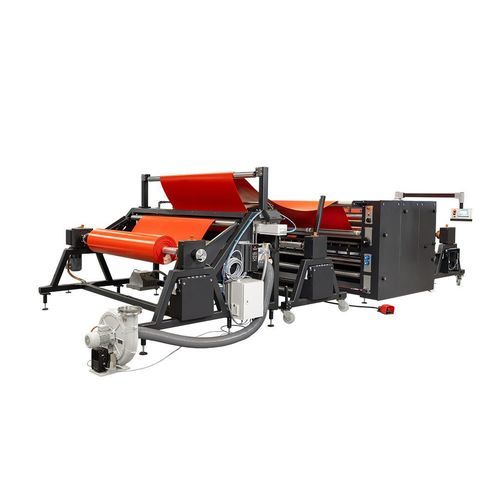

Máquina de laminar em rolo WSL

de rolo a rolode rolo a roloindustrial

Overview
The Crest WSL is a high-precision industrial slitter rewinder and optional inline laminator engineered for tension-sensitive conversion of flexible films, specialty foams and laminates. It integrates pneumatic circular slitting, loop-controlled center winding and an advanced inline lamination station to enable single-pass and dual-pass workflows while preventing material deformation and telescoping.

Key features

• Pneumatic circular knives (crush-cut) for ultra-clean, burr-free edges and fast, operator-friendly changeovers
• Loop-controlled center winding for deformation-free winding and consistent roll quality
• Optional inline laminator enabling lamination, slitting and rewinding in one platform
• Inline Corona surface activation for improved adhesive anchoring (used during foam activation pass)
• Precise nip roll and height adjustments with a dual-roller nip system to eliminate micro-air inclusions
• Heavy-duty platform designed for jumbo master rolls and high-volume production

Process workflow (dual-pass example)

• Pass 1 — Foam activation & adhesive coating: Raw specialty foam is Corona-treated to activate the surface and then coated/laminated with a high-tack adhesive under controlled nip pressure for a durable bond.
• Pass 2 — Backing application & slitting: The adhesive-laminated foam is relaminated with the plastic backing (Corona off) and pneumatically slit to customer-specified widths with precise web alignment.

Suitable materials

• Technical foam laminates (e.g., ProBAK®, Softprint®, Cushion-Mount™)
• Flexographic backing and compressible foams
• Polyester (PET) and PVC plastic backing films
• High-tack self-adhesive laminates
• Protective films and release liners
• Other tension-sensitive and compressible specialty materials

Applications & benefits

• Deformation-free converting of delicate, compressible foams and high-value laminates
• Accurate, clean slitting without adhesive bleeding or fraying
• Single-platform solution for single-pass and multi-pass lamination workflows, reducing handling and scrap
• Maximized yield and minimized scrap via responsive tension control and pneumatic slitting
• Heavy-duty uptime with quick changeovers for short-run flexibility and high throughput

Frequently noted capabilities

• Handles jumbo rolls up to ø1200 mm diameter and up to 500 kg via center winding
• Adjustable working widths up to 1650 mm (and configurable beyond)
• Flexible shaft handling with fast interchangeable setups for 3-inch and 6-inch cores
• Modular customization options (edge guiding, tension configurations, laminator options)

Warranty
A 5-year warranty applies provided a service agreement is in place.

Caractéristiques / spécifications techniques

• Model name: WSL
• Machine type: Industrial slitter-rewinder with optional inline laminator
• Slitting method: Pneumatic circular knives (crush-cut)
• Tension control: Loop-controlled center winding (closed-loop)
• Corona treatment: Inline Corona unit (optional, used for foam activation)
• Nip system: Dual-roller nip for precise lamination and elimination of micro-air inclusions
• Maximum roll diameter: up to ø1200 mm
• Maximum roll weight: up to 500 kg
• Working width: adjustable up to 1650 mm (configurable beyond)
• Core handling: Quick-change chucks for 3" and 6" cores
• Platform: Heavy-duty, jumbo-ready industrial design
• Warranty: 5 years with service agreement
