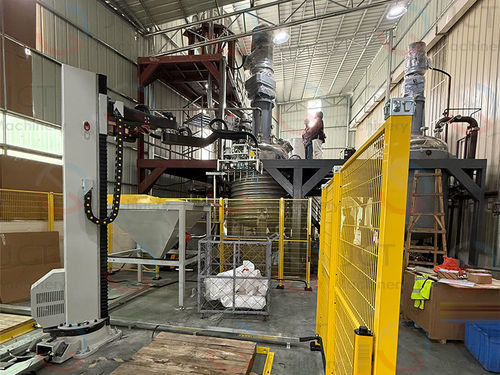

Robô de alimentação

articuladode 6 eixosde manipulação

System Components of the Robotic Arm Feeding System1. Robotic Arm: The multi-joint structure (usually six axes) supports movement with multiple degrees of freedom, allowing precise gripping and feeding. An optional vision positioning system can automatically identify the location and type of material.2. End Effector (Gripper/Suction Cup): Customizable design according to the type of packaging (bags, drums, boxes, pallets, etc.). Optional weighing module for precise feeding control.3. Feeding Port and Sealing Device: The feeding port is usually equipped with a dust cover or negative pressure suction system to reduce dust leakage. Can be connected to equipment such as reactors, sigma mixers, triple-shaft mixers, and double planetary mixers.4. Intelligent Control System (PLC+HMI): Centralized management of robotic arm movements, feeding sequence, and weighing signals. Can be integrated with MES/ERP systems for automatic recipe retrieval and production record tracking.Functions and Advantages of the Robotic Arm Feeding System1. Automatic feeding, reducing manual errors: The robotic arm automatically grabs raw materials according to recipe instructions, achieving quantitative feeding and precisely controlling the mixing ratio.2. Enhanced safety: Prevents human contact with flammable, toxic, or high-temperature materials, ensuring safe operation.3. Increased production efficiency: Enables continuous feeding and collaboration between multiple stations, reducing waiting time and suitable for continuous production lines.4. Reduced labor costs: One robotic arm can replace several human workers with greater stability.5. Data traceability: The entire feeding process is automatically recorded, ensuring transparent and standardized production.6. Strong compatibility and flexible deployment: Can be integrated into the existing production line without major modifications.Operating Principle of the Robotic Arm Feeding System1. Material identification and positioning: The robotic arm, working with a visual recognition system (or predefined coordinates), identifies the location of the drum, bag, or box of raw material to be fed. The system automatically determines the type of material and batch number to avoid incorrect feeding.2. Automatic gripping and handling: The robotic arm grabs the raw material using an end effector (suction cup or gripper). For bagged powders, a vacuum suction cup can be used; for barrels or solid blocks, a custom robotic gripper can be used.3. Weighing control: The robotic arm or feeding port is equipped with a weighing sensor to monitor the weight in real time during the feeding process. The control system automatically stops or adjusts the feeding amount based on recipe settings, ensuring a proportion accuracy of ±0.5%.4. Automatic feeding: The robotic arm feeds the material into the designated equipment. The feeding port can be equipped with a sealed cover and dust removal device to prevent dust leakage and raw material waste.5. Data recording and traceability: The robotic arm feeding system automatically records information such as material name, weight, batch, and time of each feeding. This data can be uploaded to the MES or ERP system, enabling fully traceable production management.6. Next cycle: The robotic arm feeding system automatically requests the next raw material based on the production recipe list, performing the feeding task in a repetitive cycle.RecommendationJCT recommends that customers use the automated robotic arm feeding system because it can help factories operate more efficiently, safely, and standardized, and is an indispensable part of the smart factory.Technical Specifications / FeaturesMulti-joint robotic arm (typically six axes) for high flexibilityOptional vision positioning system for material identificationCustomizable end effector (gripper/suction cup) for various packaging typesOptional weighing module for precise feedingFeeding port with dust cover or negative pressure suction systemIntegration with reactors, sigma mixers, triple-shaft mixers, double planetary mixersCentralized intelligent control system (PLC+HMI)MES/ERP integration for recipe management and traceabilityAutomatic data recording of material, weight, batch, and timeProportion accuracy: ±0.5%Continuous and repetitive feeding cycles
