Telefone analógico KNSZ-11

VoIPIP66para túnel

Product Overview

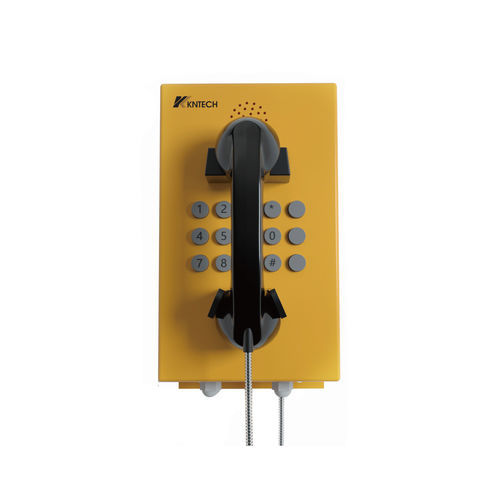

Waterproof Tunnel Telephone KNSZ-11. Model: KNSZ-11. Size: 250*165*142.6(mm). Material: Cold-roll steel sheet.

Features

• Cold-roll steel sheet, vandal & tamper-resistant hardware, easy installation.
• Waterproof rating IP66, dust proof.
• Full keypad with memory; 3-button programmable telephone; support for hotline dialing.
• Heavy duty handset with hearing-aid compatible receiver and noise-canceling microphone.
• Handset with industrial strong armored cord.
• Silicon keypad to keep waterproof and dust proof.
• Service temperature range from -40°C to +75°C.
• Magnetic reed hook-switch; telephone line powered.
• Lightning protection to ITU-T recommendation K.21.
• Phone integrity wiring to enable the telephone system to check if the telephone unit is still operational (if PBX supports it).
• Optional 7-minute timeout to release the line if handset left off-hook (upon buyer requirement).
• Typical applications: tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge.

Installation
Designed for straightforward installation with vandal-resistant fittings and mounting provisions suitable for tunnel and outdoor environments.

Dimensions
Overall size 250 x 165 x 142.6 mm. Detailed installation and dimensional drawings provided in product documentation.

Certification
Meets EN55022 (emissions) and EN55024 (immunity). Ingress protection: GB4208-93 IP66. FCC compliance and ITU-T Recommendation K.21 lightning protection. EMC: EN50121 for railway applications.

VoIP & Analogue Options
Available in both PSTN analogue and VoIP versions. Analogue and VoIP specifications provided for respective models; VoIP-specific technical details are available in product documentation.

Caractéristiques / Spécifications techniques

• Denomination commerciale (model): KNSZ-11
• Size: 250*165*142.6 (mm)
• Material: Cold-roll steel sheet
• Ingress protection: IP66 (dust proof and waterproof)
• Operating temperature: -40°C to +75°C
• Handset: Heavy duty, hearing-aid compatible receiver, noise-canceling microphone, industrial armored cord
• Keypad: Full silicon keypad, waterproof and dust proof; 3 programmable buttons; memory dialing (up to 12 groups, each up to 16 digits)
• Powering: Telephone line powered (analogue); compatible with SPC exchange, PABX and dispatch systems with feeding voltage 33-60V
• Dialing: DTMF dialing (analogue)
• Reliability: MTBF ~100000 hours; MTTR ~2 hours
• Connection (analogue): RJ11 screw terminal pair cable (RJ11 socket/plug on request)
• Acoustic: Ringing sound level over 70 dB(A)
• Call transmission index (5 KM): SLR < 12, RLR < -1, STMR > 10; output impedance 600 Ohm; maximum distance 7 KM
• Lightning protection: ITU-T Recommendation K.21
• Phone integrity wiring: Supported for system monitoring (if PBX supports)
• Optional feature: 7-minute automatic timeout to release the line if handset left off-hook
• Certifications: EN55022, EN55024, GB4208-93 IP66, FCC, ITU-T K.21, EN50121 (EMC for railway)
