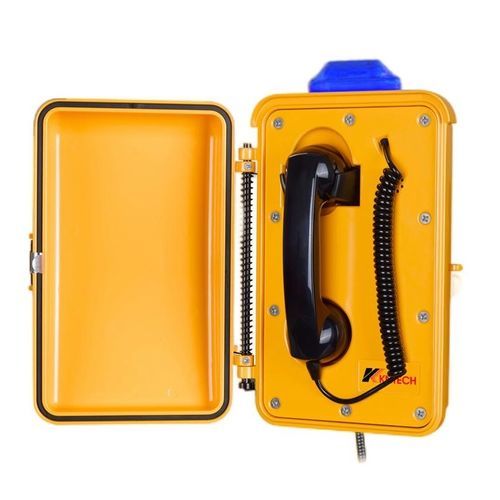

Telefone analógico KNSP-03-D23

IPPoELAN

Product
Blue Light Stations designed for outdoor and industrial emergency alarm applications. Model: KNSP-03-D23. Size: 320*205*120mm. Material: Aluminum alloy.

Features

• Robust aluminium alloy die-cast body with vandal & tamper-resistant hardware.
• Waterproof rating IP66 (dust proof).
• With line powered blue indication lamp.
• Noise cancelling microphone: filters out train/car noise for clearer call quality; supports hotline setting and scroll dialing; no keypad by default.
• Magnetic reed hook-switch.
• DC input overvoltage and overcurrent protection and RJ45 surge protection.
• Heavy duty handset with hearing aid compatible (HAC) receiver.
• Handset with industrial strong curly cord.
• Door cover: orients automatically with good self-closing for convenient use.
• Operating temperature range: -40°C to +70°C.
• Support echo cancellation.
• Support remote software upgrade, configuration and monitoring.
• Powder coated in UV stabilized polyester finish.
• Typical applications: tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge, industrial hazardous zones.

Order information
Model number | Power Suppl | Item Number
KNSP-03-IP-Y_AD | DC12V 1A | SP0030052
KNSP-03 -IP-Y_P | POE | SP0030022
KNSP-03 -IP-Y_ADP | DC12V 1A + POE | SP0030092
*AD = Adapter UL (Input: AC110~240V, Output: DC12V 1A); *P = POE

Certifications

• Australian communications: AS/CA S004
• Australian Equipment-safety: AS/NZS 60950.1:2015
• RCM: AS/NZS CISPR 32
• EMC: EN55032, EN55024, EN61000-3-2

Installation / Packing

• Unit size: 320 * 205 * 120 mm.
• Unit net weight: 4.86 KG.
• 1 pcs packing box size: 439 * 277 * 191 mm; N.W: ~5.8 KG.
• 6 pcs in 1 outer carton size: 730 * 390 * 340 mm; N.W: ~36.5 KG (aggregated).

System & Application
The blue light station is intended for industrial telephone systems as an emergency alarm/warning device used in chemical industry, nuclear power generation areas and other hazardous or outdoor industrial environments. It can be integrated into IP-based emergency communication systems.

Detailed pictures
Multiple-angle images and application photos available showing the unit installed in tunnels, industrial sites and roadside emergency positions.

caractéristiques / spécifications techniques

• Protocol: VoIP SIP 2.0 telephone.
• DTMF dialing supported (SIP Info, RFC2833).
• Audio codecs: G.711, G.723, G.726, G.729.
• MTBF: 100,000 hours; MTTR: 2 hours.
• Network: 10/100 Base-TX Ethernet, RJ45 (Cat5e or better).
• Free dial: max length 32 digits.
• Communication: full duplex 2-way.
• IP Protocols: IPv4, TCP, UDP, RTP, DHCP, SIP.
• Call control signaling: VOIP SIP Info (DTMF), RFC 2833.
• LAN: 1 x LAN with Power over Ethernet (PoE, IEEE 802.3af) and 1 x LAN (IEEE 802.3 for network access).
• Power: Power over Ethernet IEEE802.3af Class 0; local power option 12V DC (Idle 2W, Max 10W).
• Control & network features: IEEE 802.1x, STP (IEEE 802.1d), RSTP (IEEE 802.1d-2004).
• Auxiliary contacts: optional.
• Programming & configuration: non-volatile flash memory; programming and configuration through Web GUI; supports remote automatic software upgrade and centralized monitoring.
• 1 Aux Output (dry contact) provided for external alarm integration.
• Dry contact rated load: 0.3 A at 125 VAC; 1 A at 30 VDC. Rated carry current: 1 A. Max switching voltage: 125 VAC, 30 VDC. Max switching current: 1 A.
• Echo cancellation: ITU-T G.167 / G.168.
• Environmental: IP66 waterproof; corrosion resistant; suitable for outdoor and hazardous industrial environments.
• Mechanical: robust die-cast aluminium alloy body; vandal-resistant hardware; powder coated UV-stable polyester finish.
• Accessories and power choices: local DC adapter (AC110~240V input, DC12V 1A output) and PoE options.
