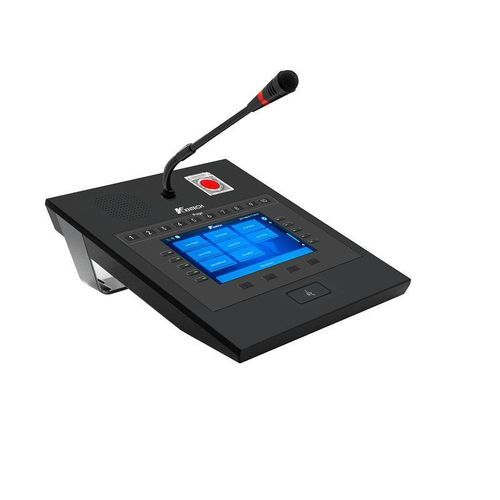

Telefone de emergência call-box IP KNPA800miniR

PoEEthernet4,3"

Product Overview
PA Call Station model KNPA800miniR is a professional IP network paging console designed for PAGA/PA systems, intended for Safe Area control rooms and operation centers. It enables zone paging, emergency paging activation and system status monitoring for mission-critical communications.

General Information
Model: KNPA800miniR
Size: 213 (L) x 190 (W) x 76 (H) mm (excluding microphone)
Material: ABS (Acrylonitrile Butadiene Styrene)

Key Functional Features & Benefits

• 100-zone one-touch paging with a covered red emergency key.
• Gooseneck unidirectional microphone with PTT (momentary, non-locking).
• 4.3-inch TFT color display for zone selection, call status and fault indication.
• Engineered for professional PA applications with certified safety compliance (EN 54-16 and ISO 7240-16).
• Designed for continuous 24/7 operation with energy-saving standby features.
• Intuitive user interface and at-a-glance status confirmation for power, communication and push-to-talk activation.
• Adjustable microphone sensitivity, volume control and software-configurable parametric equalization for audio tuning.
• 3.5 mm jack for wireless microphone input to integrate external audio sources.
• Selective paging options: zone, group-zone and all-call paging; automated and scheduled announcements including pre-recorded messages.
• Priority-based audio routing to ensure emergency announcements override lower-priority audio.
• PoE (Power over Ethernet) operation for simplified installation and cost-effective deployment.
• Dual Ethernet ports for network redundancy.
• Secure and encrypted communication using AES67 for audio and AES70 for control.

Operational Capabilities

• 100-key paging console layout: 10 pages × 10 physical paging buttons, plus 4 function keys, one main paging key and a guarded red emergency key under a safety cover to prevent accidental triggering.
• Concurrent live paging support for non-overlapping zones; system handles zone conflicts with predefined priority/occupancy policy (override/queue/restriction).
• Background music (BGM) and live paging mixing with automatic BGM attenuation (ducking) during announcements.
• System monitoring with power/communication/fault indication and support for fault acknowledge.

Integration, Security & Compliance

• Supports enterprise-grade integration and simplified installation.
• Cybersecurity support aligned with IEC 62443 requirements: configurable user privilege and password policies, minimization of enabled ports/services; works with PAGA controller for encrypted control and prevention of unauthorized access.
• Certified for life safety and voice evacuation by EN 54-16 and ISO 7240-16.

Mounting & Environmental

• Supports Desktop, Wall Mount and Flush (Panel) Mounting. Cut-out dimensions and mounting brackets available as optional accessories.
• Front panel protection rated to IP22 (minimum) for indoor control room environments.

Area of Use
Designed for Safe Area control room applications. For Hazardous Area use, IECEx/ATEX certified field paging stations/telephones should be used as required.

Additional Features

• Built-in chime tone prior to live paging announcements; configurable.
• Supports simultaneous live paging from multiple stations when zones are non-conflicting.
• Local and external alarm indication on the 4.3" TFT with acknowledge/mute support; supports integration with PAGA Controller/Server for external alarm inputs and system events indication.

Caractéristiques / Spécifications techniques

• Model: KNPA800miniR
• Dimensions: 213 × 190 × 76 mm (L × W × H), excluding microphone
• Material: ABS
• Certifications: EN 54-16, ISO 7240-16
• Paging zones: 100-zone one-touch paging
• Paging console: 10 pages × 10 paging buttons, 4 function keys, main paging key, guarded red emergency key
• Microphone: Gooseneck unidirectional microphone with PTT (momentary)
• Display: 4.3" TFT color display for zone selection, status and fault indication
• Audio inputs: 3.5 mm jack for wireless microphone input
• Network: PoE operation, dual Ethernet ports for redundancy
• Audio protocols / Security: AES67 for audio, AES70 for control; encrypted and authenticated communications
• System features: Built-in chime, concurrent live paging, zone conflict priority handling, BGM mixing/ducking, scheduled announcements, system monitoring and fault acknowledge
• Cybersecurity: Supports IEC 62443 related access control and security measures
• Mounting: Desktop, Wall, Flush (Panel) mount supported
• IP Rating: Front panel IP22 (minimum)
• Intended use: Safe Area control rooms and operation centers (use IECEx/ATEX certified devices for hazardous areas)
