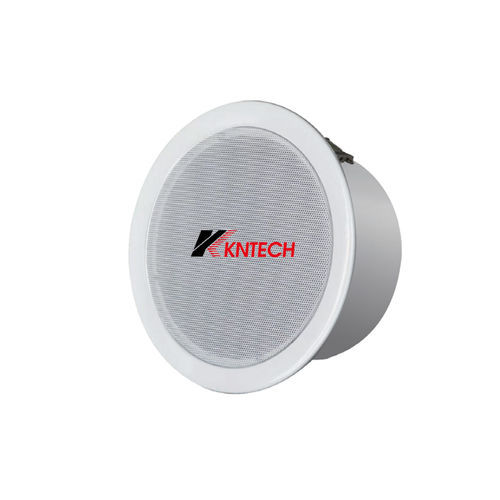

Alto-falante de teto KNL9-A-6W

à prova de fogopara edifício do setor terciário

Résumé
Model: KNL9-A-6W
Size: 197*165*98mm
Material: Metal & Fire Rated Metal Rear Cover

Key Features
The loudspeaker shall incorporate a single 12 cm (5") full range cone-type transducer with a smooth frequency response of 80 Hz to 20 kHz measured on axis.
The loudspeaker shall produce a Sound Pressure Level (SPL) of 90 dB on axis at 1 meter with a power input of 1 watt and shall be capable of producing 6 watts (for 100V Line) and 3 watts (for 70V Line) of power.
The loudspeaker shall be fitted with a factory mounted transformer with easy selectable power tappings of 6W, 3W, 1.5W and 0.8W when using 100V Line and 3W, 1.5W, 0.8W and 0.4W when using 70V Line. Push-in-type connectors shall make cable connection quick and easy and shall allow bridge wiring when necessary.

Application

• Conference rooms
• Cafes
• Churches
• Background music
• Entertainment venues
• Home theaters

Products Dimensions
Size: 197*165*98mm

Caractéristiques / spécifications techniques

• Model: KNL9-A-6W
• Overall size: 197 x 165 x 98 mm
• Material: Metal with fire rated metal rear cover
• Transducer: single 12 cm (5") full range cone-type
• Frequency response: 80 Hz to 20 kHz (on axis)
• SPL: 90 dB on axis at 1 m with 1 W input
• Power handling / transformer taps (100V line): 6 W, 3 W, 1.5 W, 0.8 W
• Power handling / transformer taps (70V line): 3 W, 1.5 W, 0.8 W, 0.4 W
• Connector: Push-in type connectors allowing quick cable connection and bridge wiring
• Typical applications: public address and background music in rooms and venues
