Gerador a vácuo MSVE series

multifuncional

Product overview

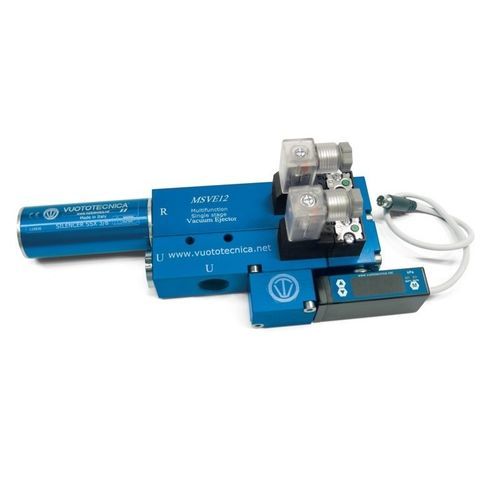

The vacuum generators of this new series can fully drive a negative pressure gripping system. By means of coaxial shutters, the original compressed air supply system feeds large quantities of air to both the ejectors and the ejection system, thereby ensuring faster gripping and release of the load. These vacuum generators are equipped with single-stage ejectors, are powered by low pressure (max. 4 bar), and feature an extremely high emptying speed in relation to their suction flow rate. All this allows for increasingly faster high-performance work cycles.
Two micro solenoid valves manage the compressed air supply to the vacuum ejector and adjustable discharge blow off. The intensity and duration of the latter are managed through a screw-type flow regulator. The check valve built into the suction connector maintains the vacuum in the event of a power outage. A digital vacuum switch, equipped with a display and commutation LED, manages the compressed air supply and provides a signal to start a cycle under safety conditions. An anodised aluminium distributor with vacuum connectors has an integrated suction filter that can be easily inspected.
By activating the compressed air power micro solenoid valve, the generator creates vacuum for use. As soon as the set maximum value is reached, the digital vacuum switch acts on the electric coil of the micro solenoid valve and stops the air supply, reactivating it when the vacuum falls below the minimum level. Besides maintaining the vacuum level within set safety values (hysteresis), this modulation allows for considerable compressed air savings. A second signal from the vacuum switch (also adjustable and independent with respect to the first) can be used to start the cycle when the vacuum level reached is suitable for use. Once the work cycle is completed, the micro solenoid valve that supplies compressed air to the generator is deactivated while, at the same time, the ejection solenoid valve is activated for quick restoration of the atmospheric pressure upon use.
Features

• Coaxial shutters feed air to ejectors and ejection system for faster gripping and release
• Single-stage ejectors for efficient vacuum generation
• Operates at low pressure (maximum 4 bar)
• Extremely high emptying speed relative to suction flow rate
• Two micro solenoid valves: supply and ejection/blow-off control
• Adjustable discharge blow-off managed by a screw-type flow regulator
• Check valve in suction connector to maintain vacuum during power outage
• Digital vacuum switch with display and commutation LED for control and safety signals
• Anodised aluminium distributor with integrated, inspectable suction filter
• Modulated control to allow compressed air savings

Applications

• Suction gripping systems
• Handling metal sheets, glass, marble, ceramics, plastic, cardboard, wood
• Industrial robotics and automated handling where high performance with limited weight/bulk is required

Accessories / related items

• Cable set with built-in energy saving device
• Connector, axial and radial cable options
• NC micro supply solenoid valve; NC supply and blowing micro solenoid valve
• Digital vacuum switch

Caractéristiques / spécifications techniques

• Denomination commerciale: MSVE series
• Operating pressure: low pressure, max. 4 bar
• Ejector type: single-stage ejectors
• Control: two micro solenoid valves (supply and ejection/blow-off)
• Blow-off regulation: screw-type flow regulator (adjustable intensity and duration)
• Vacuum retention: check valve in suction connector
• Vacuum monitoring: digital vacuum switch with display and commutation LED; two independent adjustable signals
• Distributor: anodised aluminium with integrated suction filter (inspectable)
• Installation: can be installed in any position
• Suitable for: suction gripping systems for glass, metal, marble, ceramics, plastic, cardboard, wood, etc.
• Compatible product codes / models (examples found on page): MSVE3, MSVE5, MSVE8, MSVE8IO, MSVE12, MSVE12IO, MSVE20
