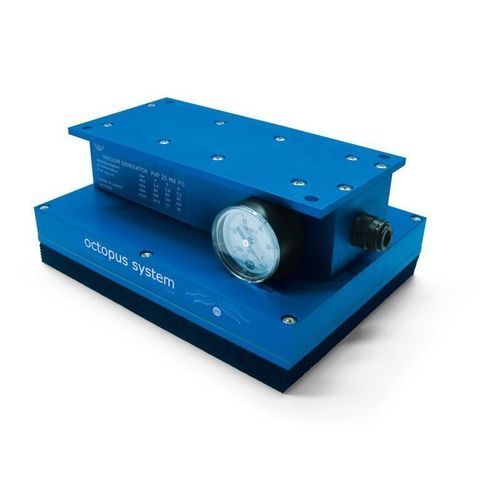

Balancim com ventosas para big-bags OCTOPUS

para chapas metálicaspara placas de madeirapara caixas

General description
The OCTOPUS system is a vacuum gripping solution designed for high operational flexibility for palletising robots and vacuum gripping applications. It allows gripping objects of varied shapes and materials (unless excessive transpiration) without needing to place or change individual vacuum cups, even when the object's surface occupies only a small percentage of the suction plate. The maximum liftable weight is proportional to the effective gripping surface.

Standard composition

• One or two compressed air-fed vacuum generators (to be ordered separately in most versions).
• An anodised aluminium box, open on one side, with an internal micro-fine stainless steel mesh filter protecting the vacuum generator and easy to inspect.
• A suction plate sealing the box, made of anodised aluminium with equidistant calibrated holes and coated with special perforated foam rubber, allowing adaptation to smooth, rough or irregular surfaces.
• Top-side connections on the box for installation of control devices or solenoid valves to quickly restore atmospheric pressure when required.

Key features

• Adaptability to many surfaces (smooth, rough, irregular) via perforated foam-coated suction plates.
• Capability to grip surfaces with limited contact area (e.g. as little as ~5% of plate area).
• Optional variants and suction plate types available upon request in different dimensions and with different vacuum tables/generators.

Variants and example product codes
Small OCTOPUS systems

• SO0808X, SO0712X, SODO10X, SODO18X

Standard / general models

• SO1520MX (example single unit including generator in code)
• SO2030X, SO2040X, SO2060X

Larger systems and bars

• SO40100X, SO6080X, SO60120X, SO80100X
• Gripping bars: BO0860X, BO0880X, BO08100X, BO1240X, BO1260X, BO1280X, BO12100X, BO08120X, BO12120X, BO12140X

Suction plate families and codes
Standard PX / P2X plates

• PX range (foam rubber 15 mm for PX; 30 mm for P2X): PX0712, PX0808, PX1520, PX2030, PX2040, PX2060, PX3030, PX3040, PX3050, PX4040, PX4060, PX40100, PX6080, PX60120, PX80100 and corresponding P2X versions.

Special PH / P2H plates (for empty cans, tins, jars, vials without lids)

• PH1520, PH2030, PH2040, PH2060, PH3030, PH3040, PH3050, PH4040, PH4060, PH40100, PH6080, PH60120, PH80100, PH110130 and corresponding P2H variants.

PXE / P2XE plates (PX/P2X with shut-off valves)

• PXE/P2XE variants (shut-off valves in each hole) for energy saving and use in any orientation; codes include PXE2030, PXE2040, PXE2060, PXE3030, PXE3040, PXE3050, PXE4040, PXE4060, PXE40100, PXE6080, PXE60120, PXE80100 and P2XE equivalents.

PY / P2Y plates (higher force / rough surfaces)

• PY1520, PY2030, PY2040, PY2060, PY3030, PY3040, PY3050, PY4040, PY4060, PY40100, PY6080, PY60120, PY80100 and P2Y equivalents.

PY2E / P2Y2E plates (PY/P2Y with shut-off valves)

• PY2E and P2Y2E families with shut-off valves to reduce generator flow rate and allow operation in any orientation.

Vacuum cup plates (PV / P2V) and PVE (with shut-off valves)

• PV family designed for uneven and very flexible surfaces (recommend bellows cups); supports are 1/8” gas for PV, 1/4” gas for P2V. Example codes: PV1520, PV2030, PV2040, PV2060, PV3030, PV3040, PV3050, PV4040, PV4060, PV40100, PV6080, PV60120, PV80100 and P2V equivalents. PVE variants include shut-off valves per vacuum cup support.

Bag gripping plates (PJ)

• PJ series designed to grip paper or plastic bags with powders, granules, liquids etc.; examples: PJ0712, PJ0808, PJ1520, PJ2030, PJ2040, PJ2060, PJ3040, PJ3050, PJ4060.

Accessories and spare parts

• Digital vacuum switches (1/8” gas axial), electrical cables with axial or radial connectors, vacuum gauges (Ø40 mm), pressure gauges (Ø40 mm), silencers, sealing kits and reed valves, stainless steel disc filters, supports for vacuum cups with calibrated hole, shut-off valves, various kits and spare items.

Notes on customization
OCTOPUS systems can be supplied on request in custom dimensions, with different vacuum tables, vacuum generators, and can be made lighter using thermoplastic material (Polizene) to reduce weight by about 40%. Some special products can be produced by 3D printing in colours (blue, black, white, red).

Caractéristiques / spécifications techniques

• Materials: anodised aluminium for box and suction plates; stainless steel micro-fine mesh filter.
• Suction plate coating: special perforated foam rubber (typical thicknesses: 15 mm for PX, 30 mm for P2X; some gripping bars use 20 mm PX variant).
• Calibrated holes in plates allow calculation of vacuum generator flow rate and predictable minimum vacuum under loss conditions.
• Design vacuum level used for lifting force calculation: at least -75 kPa (approx. -0.75 bar).
• Safety factor used in lifting force calculation: 3.
• Vacuum generators: compressed air-fed multi-stage generators used; some OCTOPUS codes include generator, others require separate order.
• Vacuum cup supports: typically 1/8" gas (PV) or 1/4" gas (P2V) depending on plate type.
• Shut-off valves option: available per-hole or per-cup to automatically close in absence/defective grip, reducing generator flow and enabling operation in any orientation.
• Interchangeability: many suction plate families are interchangeable across OCTOPUS systems and bars.
