The range of helicoid aerotherm consists in 7 different models used either in heating or cooling mode.
These equipment are intended to large volume buildings, store house, garage, workshop...
Aircalo aerotherm enables rapid heating or cooling volumes at the same time, mixing the air sufficiently to prevent its stratification (it is possible to complete this mixing by using zephir air recyclers).
Depending upon the characteristics of the building to be equipped, the Aircalo aerotherm may be hung (vertical blowing) or wall mounted (horizontal blowing).
CAUTION :
In cooling operation, the vertical mounting (horizontal blowing) should only be used. In this case, a condensate vessel is supplied.

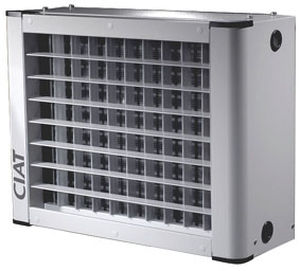

These Aircalo aerotherm are designed to satisfy quality criteria and standards in force.
|
|
* Fan motor assembly with ROTOREX technology and streamlined impeller providing the best compromise between air handling efficiency and acoustic comfort.
* Double deflector diffuser with JET+ technology as standard. A CIAT innovation based on Bernoulli's principle on fluid dynamics and on the NACA0012 type aeroplane wing profile. Comfort, silence and energy saving are not optional at CIAT...
* Highly efficient heat exchanger with tapered baffles. With seventy years' experience in the field of coils, CIAT provides the best combination of tube geometry and fin design on the market.
* Antibacterial condensate drain pan with integrated quick connection fitting for cooling or reversible applications.
* Wide range of accessories for all site requirements (mounting, filtration, fresh air, mixing etc.)
* Extensive range of regulation units for all uses (on/off, proportional, electric battery etc.)
|
|
Effective air flow heating, variable designs:
The best way to heat airflow, as seen in automatic devices or tumble dryers. We produce adapted heating elements for your fans or, when required, with fan.
Open wire heating elements are the best solution for air heating when used in fans. Because of our longlasting experience in this field, we can offer you a series construction in most cases. To use our open wire heating elements in air, the installation of a cut-out is necessary (heat accumulation). The connection is done by a plug at the element (Faston 4,8 or 6,3) or by a cord set.
|
|
|
|
|
|
MODULE FOR INCREASING TEMPERATURE
MM-050-TEC / MM-090-TEC / MM-160-TEC
DESCRIPTION:
Heating module designed for increasing the temperature of the air canalised inside of it (thermal difference of 17ºC to 60ºC).
Its big versatility turns it into an equipment with great application in the premises heating area, as well as in that one of materials drying processes as for example: furniture, metal pieces, vegetables, etc.
Its main features are:
-Operation with heating gas oil, natural gas or liquefied petroleum gases.
-Combustion oven made for achieving a performance of 90%.
-Tubular structure painted with black priming.
-External panel thermally and acoustically insulated.
-It has three operating thermostats (fan start-up, burner stoppage and security thermostat).
-Fastening hooks for an easy transport.
The base equipment does not incorporate fan nor electric panel, but it can be supplied if you ask it so.
FUEL:
Heating gas oil / natural gas / LPG
APPLICATIONS:
Premises heating, products drying, etc.
|
|
- Robust and compact design
- Can be used for fixed mounting on the wall
- Low noise level and high air flow

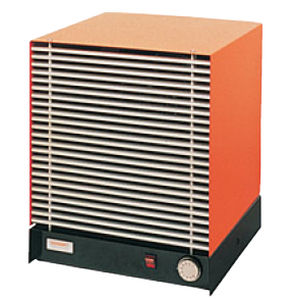

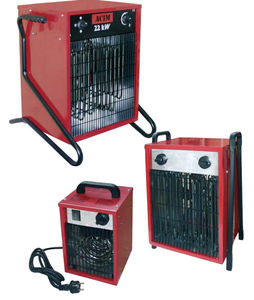

Proff is a range of compact, portable fan heaters designed for
craftsmen and others who need both temporary and permanent
heating for buildings sites, warehouses, workshops etc. It is
particularly well suited for drying applications. The heaters
have a handle and can easily be mounted onto the wall.
Proff fan heaters must not be used in the proximity of
swimming pools or other places where there is open water.
The units are made of galvanised steel with heating elements
of stainless steel. Powder coated in light grey with a black
stand and grille. Proff 2 kW and 3 kW are supplied with a
2 m supply lead and a DIN grounded plug. The Proff
5 kW and 9 kW are also supplied with 2 m lead but with a
CEE round-pin plug for 3 phase power supply. The Proff
15 kW, 20 kW and 30 kW are supplied with a 1.8 m cable
without plug.
The thermostat can be set between 5°C and 40°C.
|
|
Applications

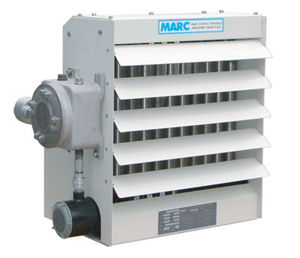

Type T3C Explosion Proof Unit Heaters are suitable for Hazardous Location Classes I and II, Groups C, D, F, and G. Ignition Temperature Code Rating is T3C, (320ºF), (160ºC).
Standard Features
*Industry's lowest ignition temperature code rating compliant.
*Epoxy coated corrosion resistant cabinet with adjustable louvers.
*Redundant overtemperature protection with dual automatic reset thermal cutouts for safety.
*Sealed heat exchanger with nontoxic Propylene Glycol heat transfer fluid and low pressure 70 PSIG relief valve.
* Cast aluminum electrical enclosure with 24V control circuit.
Options
Contact Gaumer for: Group E (Metal Dust) Construction, Dirty Duty Corrosion Resistance, Arctic Duty Motor (-40ºF/-40ºC), Non-standard motors (ie. 50Hz), Adjustable Thermostat, 120 Volt Control Circuit, Auto/Fan Selector Switch, Manual Reset Thermal Cutout with Magnetic Contactor, Pilot lights.
|
|
SAVANA is a new heating unit. It is offered in four various designs, which enable a wide spectrum of use. The design with a silver front cover with
V-lamellas or Jets is most suitable for supermarkets, stores and sports complexes. The industrial design without a front cover is recommended for production halls and other industrial premises.
SPECIFICATION:
- 4 types of design
- Air output up to 6900 m3/h
- High heater power up to 92 kW
- "V-TECHNOLOGY” and “JET System” for higher output and comfort
- Adjustable bracket for horizontal and vertical setting
- Easier installation for connecting water
|
|
Their flexibility and fast heating feature make it necessary to use the Armagnac in premises such as :
- Sales and/or storage areas
- Sports hall
- Agriculture and breeding premises
- Industrial and commercial buildings.
Over a pleasant presentation, electric aerothem Armagnac are fitted with all components and accessories allowing a quick installation, a safe and quiet operation.
- Armoured resistance
- Slow speed helicoid fan
- Power contactor
- Safety and control thermostats
- Fan timer
- On/off switch with light signal
- White RAL 9003 painted sheet steel frame, RAL 9010 lacquered deflectors protected with a removable plastic film.
Produced in 2 sizes, for power from 6 to 24 kW.
For powers from 15 kW to 24 kW only, the equipment is fitted with contactors allowing a two step operation if necessary.
|
|
|
|
|
|
Heater fans PHE and PHD
Robust, powerful and durable
For heating and ventilation of
Workplaces
Day rooms
Showrooms
Portacabins
Construction sites
or for drying of damp or moist rooms
Robust housing made of galvanised sheet-steel, coated, corrosion-resistant.
Carrying handle as tubular stand with sufficient floor clearance.
Heating elements made of stainless steel, non-glowing.
Thermal overload protection as standard feature. Switches motor off under thermal overload and comes on automatically again after cooling down.
With wall bracket
For portable or stationary operation.
High air circulation. Rapid heating.
5 power classes: from 3 to 20 kW.
Dual-walled housing offers safety.
Robust motor with ball bearings, maintenance-free
Fan and heater can be switched in 3 or 4 steps.
PHD 9/ 15/ 20 with timer: Switch-on time can be preselected up to 24 hours.
Heating thermostat with temperature range which can be set (infinitely variable) to between 0 °C - 40 °C. Fan continues to operate once the temperature has been reached.
|
|
These equipment may be connected either with vertical or horizontal vent or through a chimney.
These aerotherms do meet the main requirements of the CE standards requirement related to gas-fired aerotherm.
CAUTION :
These equipment can only be used in sufficiently aerated premises, except where a tight connection is provided.
The proper operation of the aerotherm depends on a correct installation and start-up.
Aerotherm should not be installed in :
- Hazardous areas
- Premises containing vapours of chlorinated combination
- Areas with high contents of inflammable dusts
- Highly humid rooms.
|
|
BABCOCK WANSON offers a complete range of solutions suitable for the heating of large spaces and smaller buildings :
- air unit heaters gas fired or for use with secondary heat transfer fluids ;
- warm air cabinet heaters gas-fired and light oil fired ;
- air handling units, make-up air replacement heaters and modular units with exchangers, mixing chambers and filter sections ;
- radiant tubes, door heaters, destratification fan units.
BABCOCK WANSON manufactures equipment to deal with a variety of drying applications :
- heaters with direct combustion (up to 12000 kW and 1200°C) ;
- heaters with indirect combustion (up to 3000 kW and 300°C).
|
|
Adding a fan to a heater creates artificial air movement. This air movement allows for a more compact heater than the convection heater since rapidly moving air removes the heat from the heater surface more quickly. The forced air heater forces air over very long distances and is usually the choice for heating larger areas.
Applications
- Shipping and Receiving Areas
- Pump Houses
- Power Generating Stations
- Aircraft Hangers
- Factories
- Warehouses
- Garages
|
|

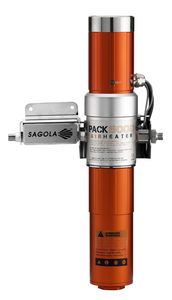

Consisting of carrier tube in nickel-plated or stainless steel. With spot-melded metal frame and carriers made from mica. Different messures, voltages and outputs are possible.
Applications: Mechanical engineering, plant construction, chemical industry, plastics technology, e.g.
|
|
Fan heaters of simple and robust design for heating recirculated air in areas such as workshops, factory shopfloors, warehouses, refectories, sports halls, garages, shops, greenhouse ...
Vulcanic manufactures a very large range of fan heaters, such as portable fan heaters, fan heaters with castors, and high power fan heaters for wall mounting.
|
|
The air heater units Gejze are designed for heating nad ventilating the industrial halls assembly rooms, workshops, shopping malls row of shops and similar huge objects.
Gejzer works based on:
- recirculated air (Gejzer I, Gejzer II),
- mixture of fresh and recirculated air (Gejzer MIX).
The heating medium is water delivered to Cu/Al heater from heat source.
There is a possibility of co-operation of several some devices for large building complexes. in the case of large rooms.
There are two models available in market:
- Gejzer I with max. heating power of 26 kW in max. heating power,
- Gejzer II with max. heating power of 52 kW in max. heating power.
|
|
|
|
|
|
Proheat Air is the new standard for heavy-duty truck air heaters, quietly delivering constant and reliable heat in cold weather environments. Available in 2 and 4 kW models, its high-efficiency design reduces overall vehicle emissions and engine wear by eliminating the need to idle the engine to heat the sleeper cab. Proheat Air saves fuel costs for fleets and operators while helping drivers comply with local idling restrictions. A digital remote panel provides comprehensive and precise control of Proheat Air from anywhere inside the truck cab.
Air Heater Features
- 2kW (A2) and 4kW (A4) models available
- Built-in temperature sensor for safety and control
- Ultra-quiet operation
- Optional diagnostic software kit available
- Two year warranty
Digital Control Panel (DCP) Features
- Backlit LCD display
- Easy set-up and control
- At-a-glance display of heater status
- Temperature, time, and power
- Stores multiple timer events
- Surface-mount design
Optional Components
- Proheat Monitor (Diagnostic Software Kit)
- Temperature sensor
- Heater mounting plate
|
|
DESCRIPTION:
Stove of industrial firewood with ventilator with operation to firewood, shavings, charcoal, etc.
Ideal for the heating of the industrial premises with a maximum volume of 1.075m3 to 2.150m3
FUEL:
LEÑA-BRIQUETAS-CARBÓN
|
|
Terminal air heater
"Drawer-type" heaters, which are designed to be installed directly in an opening made in the duct, are built around stored elements. They are bent upon request and can be delivered in small series in a week.
For ducts diameter from 100 to 630 mm and rated from 500 W to 36 kW, the terminal heaters for circular ducts are assembled using elements kept in stock. They may be delivered in small series within 48 hours.
A series of self-controlled circular terminal heaters was developed to satisfy the desire of users for precise temperature control in each room. They can be controlled by electronic thermostats or remote industrial controllers. Many safety accessories are optionally available.
|
|

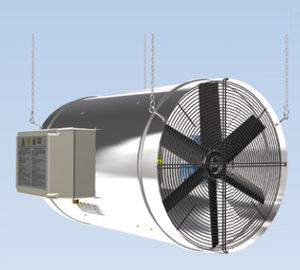

SYSTEMA introduces the new series of EOLO, suspended warm air heaters able to solve all heating problems, both for total and modular space heating. Compared with traditional heating systems needing a separate cabinet, the new EOLO heaters offer an innovative solution for heating while keeping running costs at a minimum.
This is possible thanks to the fact that EOLOs are completely self-sufficient working units, and that you don?t need to heat up a heat transferring fluid such as water for heating the space. In this way you don't have any needless heat losses.
|
|
Full range of heating cabinets gas or oil fired.
Available in vertical or horizontal versions, inside or outside and able of ducted appications.
Air flow from 6000 to 60000 m3/h and power from 70 to 1120 KW.
High temperature resistant steel exchanger or stainless steel.
For various cases, the body can be double skin.
Filtration optional.
Applications : Industrial buildings heating and/or ventilation with sveral kind of applications for high level confort for users.
This equipment is in accordance with European directive related to gas fired equipment 90/396/CEE under n° 49AQ1369 and 1370 and electro-magnetic compatibility CEM 89/336/CEE and low voltage 73/23/CEE.
|
|
DESCRIPTION:
Gas domestic hot air generator with leakproof operation and smoke outlet through an extractor.
Its operation is completely autonomous and its function is that one of heating the environment air of the premises that must be conditioned.
The basic equipment has the following elements:
- Leakproof combustion with forced draft.
- Combustion oven designed for obtaining a performance of about 90%.
- Three-speed fan (except for the GAS-40 model, which is one-speed).
- Air admission filters.
- Environment thermostat.
- Air impulsion grid on the upper part (GAS-08-12-15).
FUEL:
Natural gas / LPG
APPLICATIONS:
Any kind of premises with a volume between 190 m3 and 980 m3.
|
|
|
|
|
|
Farming hot air generator completely autonomous with heating gas oil, natural gas or liquefied petroleum gases (butane gas, propane gas) operation.
These equipments function is that one of heating the environmental air by means of the thermal energy produced by the equipment.
The produced heat is driven to the premises that must be conditioned by means of a centrifugal fan.
The combustion products are extracted through a chimney in order to ensure that the driven hot air is exempt of smokes and bad smells.
The main features are the following ones:
-Heating gas oil, natural gas or liquefied petroleum gases operation.
-Closet made with galvanised sheet.
-Heat exchanger dimensioned in order to obtain performances superior to 90%, made with AISI-430 stainless steel.
-Combustion chamber made with AISI-304 stainless steel.
-Control panel made in a watertight box for avoiding the high humidity degree in greenhouses.
-Reinforced environmental thermostat with 5m hose and fast connector included in the equipment.
-Base equipment prepared with air impulsion grid of simple deflection.
-It can have circular hoppers or any other kind of impulsion pipes coupled on it.
|
|
Hot gas generators fabricated by Unitherm Cemcon are designed for direct air heating performed by a firing system. Air to be heated is either supplied by a dilution air fan or is delivered from process with high or low temperatures or combinations of both.
Unitherm Cemcon provides:
* Hot gas generator engineering for supply or local manufacturing
* brick lining material
* Burner (mono block or special designs) incl. operation valve train and fuel supply system
* Diluton air fan
* HGG field instruments for performance and safety control
* HGG control cubicle
|
|
This unit has function of electrical convector and fan. This allows :
- In the winter, very fast heating ( 2 stage of power : 2 - 3 KW). Homgeneity of the air temperature thanks to outlet direction.
- In the summer, ventilation only with very low electrical consumption (35W)
Compact, esthetic
Régulation on board
Wall mounting
|
|
