Alarm panel – type AL8-2
The alarm panel is suitable for switchboards in industrial and marine plants for alarm and control purposes.
Features include:
- Compact Q96 design
- Extremely easy push-button programming
- Individual programming of each input: N/O or N/C, time delay, alarm inhibit, output and cable supervision
- Up to 5 units in master/slave configuration
- Clear identification of first alarm received in case of successive alarms
The alarm panel AL-8 is provided with:
- 8 alarm inputs
- 3 relay outputs: - 1 output for connection of horn and 2 outputs used for transmission of group alarms, selective disconnection of faulty equipment, etc.
|
|
HAREZMIC MG-7100 SINGLE LOOP INTELLIGENT ANALOGUE ADDRESSABLE
FIRE ALARM CONTROL PANEL
Single loop structure, stylish exterior design and enhanced programmability make the MG-7100 an economical and technologically top-level solution for small and medium sites. EN 54 and SSPB (Russia) and GOST R certified. Approved by Kazakhstan, Oman, UAE, and Bahrain Civil Defence authorities.
Features
Very Intelligent Communication Protocol
Display priority to fire events
Polling interrupt for fast alarm detection
64 x 240 pixel LCD with adjustable blue backlight
Password-protected access levels
Printer output
Displaying detector measurements
Real-time clock
1000 event log memory
Microprocessor-controlled
PCBs made by use of Surface Mount Technology
2 programmable and supervised sounder outputs
3 programmable relay outputs
16 user-defined zones
Loop polling in 7.5 sec
Protection against electromagnetic interference
Auxiliary power supply output
Soft-touch buttons
Built-in silenceable buzzer
|
|
CONVENTIONAL FIRE ALARM CONTROL PANELS
MODELS:
MP-8 Series
MG-8 Series
MS-64 Series
SD64+ Series
FEATURES:
Highlights
2, 4, 8, 16, 32, 64 zone models(differs due to panel models)
Zonal Fire and Fault LED indicators
Button control key
Zone Test and Zone Disable modes
Zone location text on front panel
Soft-touch buttons
Microprocessor-controlled
PCBs made by use of Surface Mount
Technology
Supervised Sounder outputs
Supervised Relay outputs
Compatible with all popular conventional fire detectors
Protection against electromagnetic interference
Optional repeater panels
Optional relay modules
Auxiliary power supply output
LED test by use of single button
For more information email us
|
|
|
|
|
|
MAXLOGIC MG-16160 INTELLIGENT ANALOGUE ADDRESSABLE FIRE ALARM CONTROL PANELS
The latest Maxlogic Analogue Addressable Fire Alarm Control Panel operates on
unique VIP communication protocol which is combatible to use with all MaviGard
Harezmic products. An easy way to use in large sites up to 16 loops and 2032
addresses.
FEATURES
EN54-2 and EN54-4
Compatible with MaviGard Harezmic Series addressable devices.
Up to 64 panels and/or repeater panels can be assembled into a network
LCD (240 x 64 characters) with blue backlight
1000 event log memory
1000 user-defined zones
Extendable loops up to 16 loops, max. 2032 address capasity
Detailed fire alarm and fault warnings
Top priority of fire alarm indication,
different buttons for fire and other events,
caterogical classification due to events.
Real time clock
Communication interrupt for fast fire alarm detection in 1.5 sec
Loop polling in 7.5 sec
4 programmable supervised remote control inputs
Models with printer available
Protection from electromagnetic interference
Communiation with RS232/RS485,GPRS/TCP-IP
Microprocessor-controlled design
Supervised peripheral devices, extension cards (power supply, loop extensions,
printer...)
Day and Night mode, pre-alarm, contamination warning
Virtual panel, supervisor applications
Input/output modules can be connected to panel directly
Advanced control/monitoring features
Creating cause-effect scenarios due to device or zones
By the help of Boot Loader software
updating software on the site
Event selection for input/output devices
Advanced parametric arrangement options for input/output devices
Creating user-defined event type
|
|
|
|
|
|
FILTER ALARM PANEL AND SMARTFILTER CONTROL SWITCH
The Polylok filter alarm panel and switch provides a visual and audible notification of impending filter and tank servicing. Our Patented SmartFIlter control switch attaches to Most Polylok Filters and All Zabel & Best Filters. The filter alarm switch activates when the filter cartridge is near capacity on solids that have built up through the filtering process. The filter alarm switch sends a signal to the alarm panel activating the septic tank alarm. The owner will need to call a local septic service company for immediate service.
FEATURES:
- Complete package includes standard VRS control switch with 15 feet of cable, indoor/outdoor alarm panel, and an effluent filter
- Alarm panel, control switch, and an effluent filters can be purchased separately or as part of a system package
- Alarm panel features manual alarm test switch and horn silence switch
- Alarm horn rated 82 decibels at 3 meters
- Direct interface of control switch and effluent filter insures proper placement of switch
- Alarm sounds when the tank and filter reach 90% maturity
- For indoor/outdoor use
- Three-year limited warranty
|
|
|
|
|
|
FireNET (9th Edition)
Analog Addressable Fire Alarm Control Panel
STANDARD FEATURES
UL 864 9th edition approved
Analog design using Hochiki's advanced DCP protocol for fast and robust communication
Up to 127 sensors & modules, plus 127 analog sounder bases, for a total of 254 points possible per loop
Uses standard wire, no shielded or twisted pair required on SLC loops
Supports Class B (style 4) and Class A (style 6 or 7) SLC loops
4 on board Class B (style Y) NAC circuits rated at 2.5 Amp each
Programmable sensitivity levels per device & automatic day/night sensitivity modes
Automatic daily calibration & drift compensation routine
Large 8-line x 40-character LCD display (320 char.)
2 or 4 loop versions (800 addresses/sub-addr. max.)
Dual RS-485 bus for panel network
2 built-in RS-232 interfaces for programming via a PC and serial printer interface
5 on board programmable Form C relays rated at 1 amp at 30VDC (Fire1, Fire2, trouble, supervisory, aux.)
500mA of auxiliary power available rated at 24 VDC
Loop Explorer Windows® configuration utility
*500 network wide software zones
Network Capability of up to 64 panels
RS485 slave bus for expansion - up to 32 FN-4127-IO boards or up to 15 FN-LCD-S serial annunciators and up to 16 FN-4127-IO boards
Auto-learn feature
Built in help and alarm information screens
Fire Drill test function
Walk Test function
Alarm Verification feature
FireNET is UL listed for Central Station Service when used with the Bosch D9068 contact dialer
Powerful & versatile Cause & Effect programming (up to 500 maximum, network wide) including: *Cause & Effect action, *Disable function configuration, *Test mode configuration
|
|
| ... products without technical information |
| |
A16B Alarm Annunciator(604 600)
• Programmable with PC or other control devices
• Easy transitions between hardware / software configurations
• 3 port 2.5kVAC isolation
• High efficiency indicator LED’s in front panel
• Low power consumption
• DIN 19235 standard compatible signal functioning
• Removable signal labels
• Wide operation temperature range
The A16B is programmable industrial 16 channel alarm annunciator with different signalization options and compatible with DIN19235 standards. A16B alarm inputs interrogated with 24/110 AC/DC voltage. High isolation is provided between input, output and power supply circuits for maximum safety. A16B is DIP switch configurable and also programmable via Windows based software which allows easy and flexible configuration of input and output characteristics.
|
|
|
|
|
|

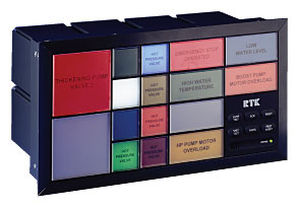

The Series 725 Alarm Annunciator provides the ideal solution to all your alarm system requirements. This innovative and unique design gives exceptional flexibility, reliability and programmability.
- Only 145mm deep
- Fully programmable with power applied and without having to remove lightboxes, backplanes or alarm cards
- Proven, ASIC-based technology: fewer components means higher reliability
- Ultra bright LED's available in a range of six colours
- Surpasses the EMC and LVD directives.
With a range of three window sizes, six colours and a choice of bulbs or ultra-bright LED illumination, a format and size will be available to match your exact requirements.
Each individual alarm way is fully programmable from the front, using the integral programming module. This allows for many different features giving thousands of possible combinations.
Numerous relay outputs are included as standard to connect to external equipment and individual repeat relays can be supplied as an option. The ASIC technology utilised in this design has a proven track record in a wide range of industries around the world.
|
|
The PEX7250 Explosion Proof Alarm Annunciator offers a vast range of features and benefits normally reserved for use in safe area annunciators only. The heart of the system is our field proven Series 725 Alarm Annunciator which is available in 3 individual window sizes 30mm x 30mm, 30mm x 60mm or 60mm x 60mm. Reliability of the system is vastly improved over conventional systems with the use of ASIC's (Application Specific Integrated Circuits) for each pair of alarms, removing any reliance on common control cards. The standard enclosure is copper free cast alloy, finished in a light grey two-part epoxy paint, making it ideal for offshore applications.
Systems are available in a range of formats and sizes and are certified for use in Zone 1 hazardous areas. All systems are automatically covered by our standard 5 Year Warranty.
|
|
|
|
|
|
Explosion Proof Alarm Annunciator from RTK Instruments
RTK Instruments’ PEX7250 Explosion Proof Alarm Annunciator, suitable for use in Zone 1 and Zone 2 hazardous areas, offers a vast range of features and benefits normally reserved for use in safe area annunciators only.
The heart of the system is RTK Instruments’ field-proven Series 725 Alarm Annunciator, which uses multi-redundant ASIC technology to greatly improve reliability compared with conventional systems. This high level of reliability is backed up by RTK Instruments’ 5 year warranty.
The PEX7250 Alarm Annunciator is available in a range of sizes and shapes from one to 56 points in a single enclosure, with a choice of three window sizes. Illumination is using high reliability, ultra-bright LEDs.
The standard enclosure is copper-free cast alloy and finished in a light grey two-part epoxy paint, making it ideal for offshore applications. A stainless steel enclosure is available as an option.
RTK Instruments is a leading global supplier of safe and hazardous area alarm, display and interface products and can provide specific application advice, as well as product recommendations and installation advice.
|
|
The RTK UC625 Alarm System, developed from the field proven P625 range of alarm annunciators, offers the latest in ASIC technology packed into an compact design for applications where panel space is at a premium.
However simple or complex your alarm requirement, the UC625 with compact packaging, ASIC Technology and "no master module" philosophy, will give the most cost-effective solution.
Programmable alarm sequence, signal duplicating relays, dual horn relays, LED display, proven ASIC technology and dual redundant universal power inputs make it ideal for all industry sectors.
|
|
Format DIN 144x144.
Automat for centralising technical faults with 12 high luminosity leds, PC parameter settings and text display.
A "top of the range" product with all the functions of the J3000 with all the flexibility of PC programming.
Many additional functions.
Application: All industries including "high risk". This product is preferable in situations requiring sophisticated or different, channel by channel settings.
Simple, user-friendly PC software supplied. Bus RS422/485 Modbus/Jbus.
Selections by input channels
Output scheduler
Scheduling and processing of alarms and indicators
Text display with History and settings menu
|
|
Integral or Remote Logic Design
Expandable to 256 points
Choice of Lamp or LED displays
Optional internal pushbuttons
Fully "DIP" switch configurable
Optional ModBus Slave Serial Port
IEC61508 Certified
Repeat Relay Option
The Omni16C is the latest upgrade in the series of field-proven popular Omni16 alarm annunciators (previously sold under the CONLOG brand).
Completely redesigned to take advantage of the latest technologies, this latest release offers backlit LED displays, and serial communications.
|
|
LN1000 Intrinsically Safe Annunciator provides a unique solution for problems with hazardous area alarm indication. The annunciator provides a visual display of the alarm status including 'first-up' information and can be mounted in the hazardous area for the benefit of operators working in any Zone.
The lightweight stainless steel construction gives a compact and simple to install modular unit which can easily be expanded by the addition of extra alarm cards.
Maintenance can be carried out live without the necessity of 'gas checks' or prior shutdown. Unlike flameproof, purged and type 'N' systems, installation is simple and relatively low cost.
Power to the annunciator is supplied from the safe area through a single Intrinsically Safe interface for up to 32 channels.
With the addition of a number of ancillary devices a complete intrinsically safe alarm and control package can be provided
|
|
HAREZMIC MG-7100 SINGLE LOOP INTELLIGENT ANALOGUE ADDRESSABLE
FIRE ALARM CONTROL PANEL
Single loop structure, stylish exterior design and enhanced programmability make the MG-7100 an economical and technologically top-level solution for small and medium sites. EN 54 and SSPB (Russia) and GOST R certified. Approved by Kazakhstan, Oman, UAE, and Bahrain Civil Defence authorities.
Features
Very Intelligent Communication Protocol
Display priority to fire events
Polling interrupt for fast alarm detection
64 x 240 pixel LCD with adjustable blue backlight
Password-protected access levels
Printer output
Displaying detector measurements
Real-time clock
1000 event log memory
Microprocessor-controlled
PCBs made by use of Surface Mount Technology
2 programmable and supervised sounder outputs
3 programmable relay outputs
16 user-defined zones
Loop polling in 7.5 sec
Protection against electromagnetic interference
Auxiliary power supply output
Soft-touch buttons
Built-in silenceable buzzer
|
|
CONVENTIONAL FIRE ALARM CONTROL PANELS
MODELS:
MP-8 Series
MG-8 Series
MS-64 Series
SD64+ Series
FEATURES:
Highlights
2, 4, 8, 16, 32, 64 zone models(differs due to panel models)
Zonal Fire and Fault LED indicators
Button control key
Zone Test and Zone Disable modes
Zone location text on front panel
Soft-touch buttons
Microprocessor-controlled
PCBs made by use of Surface Mount
Technology
Supervised Sounder outputs
Supervised Relay outputs
Compatible with all popular conventional fire detectors
Protection against electromagnetic interference
Optional repeater panels
Optional relay modules
Auxiliary power supply output
LED test by use of single button
For more information email us
|
|
|
|
|
|
MAXLOGIC MG-16160 INTELLIGENT ANALOGUE ADDRESSABLE FIRE ALARM CONTROL PANELS
The latest Maxlogic Analogue Addressable Fire Alarm Control Panel operates on
unique VIP communication protocol which is combatible to use with all MaviGard
Harezmic products. An easy way to use in large sites up to 16 loops and 2032
addresses.
FEATURES
EN54-2 and EN54-4
Compatible with MaviGard Harezmic Series addressable devices.
Up to 64 panels and/or repeater panels can be assembled into a network
LCD (240 x 64 characters) with blue backlight
1000 event log memory
1000 user-defined zones
Extendable loops up to 16 loops, max. 2032 address capasity
Detailed fire alarm and fault warnings
Top priority of fire alarm indication,
different buttons for fire and other events,
caterogical classification due to events.
Real time clock
Communication interrupt for fast fire alarm detection in 1.5 sec
Loop polling in 7.5 sec
4 programmable supervised remote control inputs
Models with printer available
Protection from electromagnetic interference
Communiation with RS232/RS485,GPRS/TCP-IP
Microprocessor-controlled design
Supervised peripheral devices, extension cards (power supply, loop extensions,
printer...)
Day and Night mode, pre-alarm, contamination warning
Virtual panel, supervisor applications
Input/output modules can be connected to panel directly
Advanced control/monitoring features
Creating cause-effect scenarios due to device or zones
By the help of Boot Loader software
updating software on the site
Event selection for input/output devices
Advanced parametric arrangement options for input/output devices
Creating user-defined event type
|
|
|
|
|
|
FireNET (9th Edition)
Analog Addressable Fire Alarm Control Panel
STANDARD FEATURES
UL 864 9th edition approved
Analog design using Hochiki's advanced DCP protocol for fast and robust communication
Up to 127 sensors & modules, plus 127 analog sounder bases, for a total of 254 points possible per loop
Uses standard wire, no shielded or twisted pair required on SLC loops
Supports Class B (style 4) and Class A (style 6 or 7) SLC loops
4 on board Class B (style Y) NAC circuits rated at 2.5 Amp each
Programmable sensitivity levels per device & automatic day/night sensitivity modes
Automatic daily calibration & drift compensation routine
Large 8-line x 40-character LCD display (320 char.)
2 or 4 loop versions (800 addresses/sub-addr. max.)
Dual RS-485 bus for panel network
2 built-in RS-232 interfaces for programming via a PC and serial printer interface
5 on board programmable Form C relays rated at 1 amp at 30VDC (Fire1, Fire2, trouble, supervisory, aux.)
500mA of auxiliary power available rated at 24 VDC
Loop Explorer Windows® configuration utility
*500 network wide software zones
Network Capability of up to 64 panels
RS485 slave bus for expansion - up to 32 FN-4127-IO boards or up to 15 FN-LCD-S serial annunciators and up to 16 FN-4127-IO boards
Auto-learn feature
Built in help and alarm information screens
Fire Drill test function
Walk Test function
Alarm Verification feature
FireNET is UL listed for Central Station Service when used with the Bosch D9068 contact dialer
Powerful & versatile Cause & Effect programming (up to 500 maximum, network wide) including: *Cause & Effect action, *Disable function configuration, *Test mode configuration
|
|
| ... products without technical information |
| |
|
|
|
|
The Concorde Webs is a mixed antitheft system via thread/via radius 868Mhz. Express studied for a professional installation, that it demands a system of mixed type for being able to obtain the best advantages of the two tipologie of income: the concretezza of wired incomes (max. 4) for the easy raggiungibili zones and the use of technologies not available via radius. The flexibility of the incomes via radius (max 24) for being able to easy catch up every point of the protected atmosphere. The heart of the system is centers it them, telegestibile, ideal for small systems and average dimensions, completely able to manage until to 8 codes customer with remote keyboards connected on seriale line. The remote control (mod. BIP) beyond offering flexibility in the management of the system, guarantees emergency thanks to the possibility to carry out of the activations of emergency. Centers has they to edge the telephone comunicatore types them for the connection to the institutes of vigilance and the PC of the installatore for the technical control. With the synthesis module vowel (optional Mod. SINT) is moreover possible to send prerecorded messages of alarm.
The sensors via radius are all fed from A batteries the Lithio to long duration: Passive infrared SPY WS; Passive infrared WING WS to vertical protection for tapparelle and doors; WIC2 WS magnetic contact for doors and windows; SPIDER PA WS double infrared liabilities from outside and inside; BM60M WS barrier to microwaves from outside and inside.
|
|
Wall-mounted consoles and remote control units are the instruments for "communicating" with the Tecnoalarm security systems. You may choose the simple ones for traditional domestic applications, or one of the more complete if you have far-reaching requests for customization in terms of arming and disarming of zones at preset hours with daily or weekly frequency.
The interface man-control panel has been made extremely simple and natural thanks to service indications viewed on display and a comprehensive library of voice messages that allert, help and advise according to an explicitly user-friendly logic.
The comfortable numerical keypad with special system keys, makes every process easy and quick.
|
|
| ... products without technical information |
| |
|
|
