The sirens are used as alarm, warning or signalling devices. Thanks to theircharacteristic siren wail, they generate an unmistakable and penetrating alarm. The high volume of the wail and ist allround directivity guarantee, that a suitably large range is attained. The different sizes and versions of the sirens open up a broad range of applications, including signalling for critical situations. Used with the protection cover available as optional extra, the sirens are suitable for outdoor use. Sirens for special voltages and frequencies are available on request. The housings are made of aluminium die cast and coated in light grey with weatherproof paint. The protection cover for the sirens F0 and FI is made of weather-resistant plastic. The protection covers of the other versions are made of sheet steel and coated with weatherproof paint. When using a protection cover, the motor conforms to protection degree IP 44 and the siren housing to IP 22. The sirens are designed for short-time operation S 2 –15 minutes according to VDE 0530, Part 1. For the power supply connection the sirens F0 and F1 are equipped with a cable gland Pg 9 and the types FII – FIIIb with a cable gland Pg 13.5.
|
|
The EWH/EWHS series horn style audible alarm with large volume is perfect for use in noisy factory.
* 32 sounds are pre-recorded in one unit.
* 3 sound types are available.
* Large sound volume up to 105dB at 1m is adjustable with volume control, perfect for use in noisy factory.
* Available in 12/24V AC/DC, 48V DC, 100V AC and 200V AC versions.
* Meets water and dust-tight IP65 construction.
* NPN transistor open collector compatible (for EWH series, 24V type only)
* Universal stainless steel mounting bracket permits easy installation in any location.
EWH: Select one sound group to play back 8 sounds (bit input);
32 sounds can be played back (binary input).
EWHS: Select one sound by dip switch from 32 pre-recorded sounds.
|
|
|
|
|
|
E2S offer a range of solutions for disaster and outdoor warning such as toxic gas release, flood warning, tsunami alert, civil defence, tornado and weather warning, wide area fire and security alert.
With a choice between traditional motor driven "air raid" sirens and multi functional electronic sirens, E2S have the solution for your application.
CS disaster warning siren
Our CS disaster warning siren has sound outputs up to 125dB @ 30m (>150 dB @ 1m) and can include numerous options:
- Battery Backup
- Silent Test
- Fault Diagnostics
- Software Control (RS232, RS485, TCP/IP)
- Radio Control using secure digital telemetry
- Voice Messaging using both pre-recorded or live voice
A140
Our A140 disaster warning alarm sounder is a compact high powered unit with an effective range of approx. 1km, having a maximum output of 140 dB(A) @ 1m. The features of the A140 disaster warning sounder are:
- 32 alarm tones, 3 alarm stages
- Lightweight fibreglass housing
- Automatic synchronisation
- Ideal for battery back-up applications
- IP55 protection
- Fully programmable version available (4 alarm stages)
|
|
The Federal Signal Model A is a general- purpose electro- mechanical siren that produces a distinctive sound and tonal quality for industrial applications. It has a high maximum pitch which provides excellent contrast to industrial ambient noise. Introduced in 1918, the Model A is still used today in many rugged and extreme environments and applications.
- Available with 120VAC/VDC universal motor
- Rugged, durable and corrosion resistant
- Maintenance- free
- Produces 103dBa @ 10' (113dBa @ 1m)
- Type 3R enclosure
- UL and cUL Listed, FM Approved
|
|
Federal Signal's Model DSA Directional Speaker Array provides excellent voice and tone reproduction and is ideal for overcoming high levels of industrial noise. Design flexibility allows the user to combine up to four speaker arrays; each array will hold from two to six re-entrant speakers. Speakers have a 70º horizontal angle of dispersion, accommodating specific sound output patterns. Ideal for outdoor industrial plant warning, the Model DSA speaker array allows sound coverage to be customized to each site, preventing wasted sound level in and around the plant.
- Overcomes ambient noise of industrial environments
- Provides maximum speech recognition and tone reproduction
- Produces 121dBc @ 100'
- Three mounting kits available
|
|
Electronic sirens KMP diffuse audio and vocal preregistered but such direct messages by microphone (Public Address).
These sirens are used for the prevention of the risks natural and industrial (PPI/POI).
Studies personalized by our engineering team.
The siren is made up of the diffusers, of the amoire of order with amplifiers of 300 with 3000W according to the desired sound power.
The control system with screen LCD and microphone announces a synthesis of defects and can diffuse all the types of sounds (AFNOR, SEVESO...) and text messages (recording on chart SD thus modifiable).
Basic configuration: 2 diffusers in omnidirectional or directional assembly.
The sirens are fed in 230Vac. 2 batteries of 12V ensure the emergency power supply of the system which is autonomous 72 operating hours.
|
|
|
|
|
|

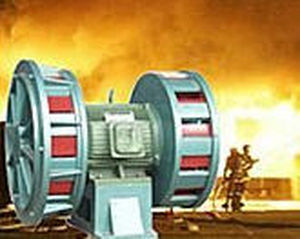

Famous rotary sirens of prevention of the risks diffusing alarm at long distances within the framework of Private individuals Plan of Internal intervention and Plans of operation.
Alarms with the population, municipalities, prefectures, building sites, refineries, barracks, careers with open sky, factories, communities, administrations, army, prisons, airports...
ASSETS
> Diffusion of the sound on 360° thanks to the houses
> Its modulated by the automat included/understood in the electrical power box
> Aluminum robust alloy construction
> Polyphase motor conforms to the standards: UTE C51 100 and C 51.102
> Number of revolutions of the engines: 3000 rpm.
> Easy installation
> Reduced maintenance
Accessories: latticed ends - houses - latticed hearing - latticed crown
Options: tropicalization - rilsanisation - protection saline air - seaworthy packing - explosion-proof engine
Certain models also exist with food 220 Vca single-phase current, to consult us.
The houses allow a longer range of the sound of 10%.
References 23850/23851/23852 do not comprise houses.
Each cupboard is carried out according to the sound needs.
|
|
|
|
|
|
Powerful helped and supervised alarm system. Modern and functional, it has varied modes of release.
Frequently used for the prevention of climatic catastrophes...
Km ALERT is made up of a box and diffusers food helped in conformity with standards EN54-4 and NFS 61940
Functioning is in:
> KM ALERT NR: Its of the code alerts national (SEVESO decree 90-394) (300/600 Hz) and of the sound of end of alarm (380 Hz) and of the sound of test.
> KM ALERT E: Its of evacuation sets fire to (AFNOR NFS 32001)
(440/554 Hz) and of the sound of alarm sets fire to (440 Hz).
> Km ALERT b: Its of national alarm stopping (decree 90-918)
All km ALERT have the 3 sounds
- Alarm
- End of alarm
- Test
Consumption of a diffuser: 200 Watts
Hull of the glass fiber diffusers
High index of protection: IP 55
Telephone release in option
Capacity battery: 18 Ah
Autonomy: 30 hours in day before and 15 minutes out of alarm
Section of cable for releases: 0,75 mm ² SV1V
Facility of assembly and connection
Temperature of - 10 with + 40°C
Moisture from 50 to 85%
|
|
Motor Driven Sirens
Duplo
The Duplo is a powerful motor driven siren which produces a very high sound output despite its physically compact construction.
- High output siren sound (127dB)
- Rugged construction for use in all environments
- Long life and run time
- Low voltage DC and high voltage AC for use in all applications
- Weatherproof to IP65
- Mounting bracket for ease of installation
Overview
The Duplo is a powerful motor driven siren which produces a very high sound output despite its physically compact construction.
With its weatherproof design, the Duplo can be used both indoors and outdoors for security, fire alarm, process control alarm and general safety warning.
Due to its rugged construction, the Duplo be used in arduous conditions including mining and quarrying
applications.
The Duplo has a continuous rating and has been designed for longevity
|
|
GN 4 SERIES
Lift bitonal electronic alarms.
* High sound level.
* LED light warning.
* Power supply 6-24 V dc
* sound level (dB at 1 m): 90 dB at 6 V or 110 dB at 12 V
* frequency (Hz): 2.500
* wall bitonal lift alarm (dim. 104 x 88 x 30 mm)
GN 4/I SERIES
Lift bitonal electronic alarms.
* High sound level.
* LED light warning.
* Power supply 6-24 V dc
* sound level (dB at 1 m): 90 dB at 6 V or 110 dB at 12 V
* frequency (Hz): 2.500
* embedded bitonal lift alarm to mod. 503 box
GN 5
Lift bitonal electronic alarms.
* High sound level with any voltage.
* LED light warning.
* Power supply 5-24 V dc
* sound level (dB at 1 m): 118 dB
* frequency (Hz): 2.500
* wall bitonal lift alarm (dim. 104 x 88 x 30 mm)
|
|
* Fully enclosed motor
* Weatherproof
* Adjustable siren direction
* AC or DC operation
Heavy duty, industrial design, motor driven siren that emits a continuous loud piercing wail.
Mounts to any solid surface using two bolts. May be swiveled through 180°, vertically or horizontally, depending on orientation of bracket.
|
|
Electronic alarms and multisound sirens
Description
Simplicity and speed of installation thanks to pre-cabled and pre-assembled products
Manufactured in conformity with the requirements of the RoHS (Restriction of Hazardous Substances) European Directive.
Electronic alarms
Each unit contains 16 sounds
Panel mounting. DIN standard installation
Up to 90 decibels in a compact size
Simple volume adjustement (0 to 90 dB) thanks to an easy front panel access
IP 54
Panel color: black or white
Standards and certifications: CE, UR.
Sirens
All 43 alarm sounds can be controlled by external signal
Up to 105 dB in a compact size
Registration mode to choose and register the sounds of your choice
Easy volume adjustment and sound switching without using tools
IP 53
Standards and certifications: CE, UL.
|
|
* AC model 122 dB @ 100 ft. (30.5 m)
* DC model 125 dB @ 100 ft. (30.5 m)
* Omni-Directional
* Continuous duty motor
* 8 horn, equal length, dual row
Designed for medium or small, growing communities this siren is a true workhorse. It is also our most popular dual tone siren. Rated at 122 dB, the Cat. No. EWS-V6 is an omni-directional siren which produces continuous 360° coverage, making it a superior alternative to a rotating siren. The Cat. No. EWS-V9 is a battery powered version of the EWS-V6. The EWS-V9 includes a motor starter, charging system and battery box.
|
|
TS 85 P and CITY are the new family of self-protected electronic sirens of AVS Electronics. The new design has been projected in modern and elegant shapes.
Characterized from the same design they are different in the dimensions : TS85P has space for a max. battery of 7 Ah, while the most compact CITY has space for a maximum. Battery of 2 Ah. On both models it is also reserved a wide space that following the installer customize the cover with the company logo.
TS85P and CITY are individually 100 % computer tested in order to grant the usual AVS Electronics reliability.
|
|
AE&T proposes to you a broad choice of electronic or electromechanical sirens of power.
The powers of our sirens are spread out of 130 with 155dB brought back to 1m.
Only, in bunch or rises on a mast, our sirens cover the whole of your requirements in term for evacuation and alarm:
- Evacuation in noisy industrial environment
- Diffusion of the national sound of alarm
- Alarm with the populations
- etc
Range:
T130: electronic siren of 130dB with 1m
- 64 sounds with the choice (of which the sound of alarm national) freely programmable
- possibility of making of the Address Public
- IP54
T140 Siralert: electronic siren of 133dB with 1m
- 32 sounds with the choice and its of alarm national
- IP 53 and IP56
T145 Siralert: electronic siren of 136 with 155dB with 1m
- Diffusion of sounds and messages personalized of which the national sound of alarm
- possibility of making of the Address Public
AT3/AT4: siren with multidirectional turbines of more than 140dB with 1m
|
|
The siren to guarantee its efficiency, must be installed in an extremely visible place, both if it is mounted outdoor or indoor. This envolves an aesthetic impact that increases insofar as the building has details of aesthetic and architectonical value.
For this reason, the Tecnoalarm sirens have been the first components of the product range that have been redesigned, in cooperation with Pininfarina, in order to transform them into objects of design and improve significantly their integration into any environment.
The series SAEL for outdoor mounting includes a version for wireless installation, whereas the sirens SIREL for indoor mounting are available in several versions: traditional, with acoustic signaling only or white stroboscopic flashing light.
|
|
The siren to guarantee its efficiency, must be installed in an extremely visible place, both if it is mounted outdoor or indoor. This envolves an aesthetic impact that increases insofar as the building has details of aesthetic and architectonical value.
For this reason, the Tecnoalarm sirens have been the first components of the product range that have been redesigned, in cooperation with Pininfarina, in order to transform them into objects of design and improve significantly their integration into any environment.
The series SAEL for outdoor mounting includes a version for wireless installation, whereas the sirens SIREL for indoor mounting are available in several versions: traditional, with acoustic signaling only or white stroboscopic flashing light.
|
|
