Alarm siren printed circuit board
custom-madelead-freeheat sensor

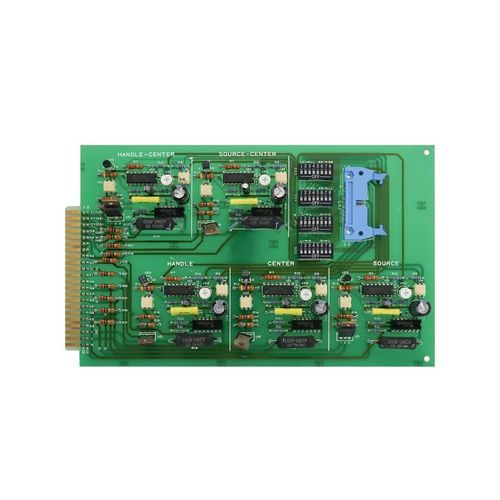

Alarm siren printed circuit board - Tecoo Electronics - custom-made / lead-free / heat sensor
Alarm siren printed circuit board - Tecoo Electronics - custom-made / lead-free / heat sensor
Add to favorites
Compare this product
Go to the Tecoo Electronics website for more information

Characteristics

Options
for alarm sirens, custom-made, lead-free, heat sensor, multilayer
Applications
for industrial applications, for OEM, for electronics
Number of layers
4-layers, 3 layers, 6 layers, 2-layers, 5 layers, 8 layers

Description

Product introduction
TECOO provides custom-designed fire alarm main boards and full PCB assembly services for commercial and industrial fire detection and alarm systems. Services cover schematic review, PCB fabrication, SMT/THT assembly, testing and final assembly to meet OEM/ODM requirements and regulatory needs.

Key advantages
  • End-to-end OEM/ODM support from PCB design to finished assembly
  • Stable supply chain and capacity for long-term safety projects
  • Strict process control, traceability and documented QA
  • Flexible customization from customer drawings or samples
  • Experience in safety‑critical electronics manufacturing

Specifications
Board type: Multilayer FR-4 PCB
Layer count: 2–8 layers (customizable)
Board thickness: typically 1.6 mm (options 1.0–2.4 mm)
Copper thickness: 1–3 oz
Surface finish: HASL (lead‑free), ENIG, OSP (optional)
Solder mask: Green (Red, Blue, Black optional)
Silkscreen: White
Flame retardant rating: materials complying with UL94 V-0

Electrical & functional features
  • Support for fire alarm signal processing and control logic
  • Interfaces for smoke/heat detectors, manual call points and alarm outputs
  • Compatible with conventional and addressable system topologies
  • Stable power management and signal isolation design
  • Designed for continuous 24/7 operation and high reliability

Assembly & manufacturing capabilities
  • SMT and THT mixed assembly
  • Fine‑pitch IC placement and BGA support
  • AOI, X‑ray, ICT and functional testing available
  • Optional conformal coating and environmental protection processes
  • RoHS and REACH compliant production

Application scenarios
  • Fire alarm control panels
  • Commercial buildings and offices
  • Industrial facilities and factories
  • Residential fire safety systems
  • Public infrastructure: schools, hospitals, transport hubs

Technical specifications
  • Material: FR-4 multilayer
  • Layers: 2–8 (custom)
  • Board thickness: 1.0–2.4 mm (standard 1.6 mm)
  • Copper: 1–3 oz
  • Surface: HASL (lead‑free), ENIG, OSP
  • Solder mask: standard green; other colors optional
  • Silkscreen: white
  • Flame rating: UL94 V-0 materials
  • Assembly: SMT/THT mix, fine‑pitch and BGA capable
  • Testing: AOI, X‑ray, ICT, functional tests
  • Protection: conformal coating option
  • Compliance: RoHS, REACH
