Printed circuit board for IoT applications
high-speedanti-interferencefor OEM

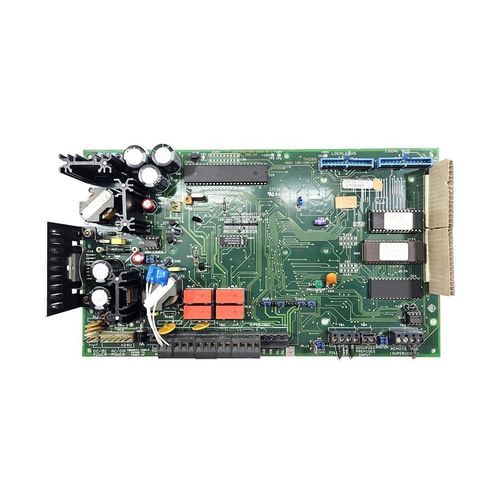

Printed circuit board for IoT applications - Tecoo Electronics - high-speed / anti-interference / for OEM
Printed circuit board for IoT applications - Tecoo Electronics - high-speed / anti-interference / for OEM
Add to favorites
Compare this product
Go to the Tecoo Electronics website for more information

Characteristics

Options
for IoT applications, high-speed
Applications
anti-interference, for OEM, for industrial applications, for cameras, for communication module

Description

Product overview
The High-Reliability Surveillance System PCBA is designed for professional video monitoring devices. It delivers stable signal processing and efficient image transmission for demanding industrial and public-safety environments, with extended temperature tolerance and enhanced EMI protection.

Core Parameters
  • Main chipset: HiSilicon or equivalent high-performance processor
  • Operating temperature: -40°C to +85°C
  • Power input: 12V DC with over-voltage and reverse-polarity protection
  • Memory: supports up to 8GB DDR4 RAM, 32GB eMMC storage
  • Video interfaces: HDMI, CVBS and IP network output
  • Resolution support: up to 4K @ 30fps encoding/decoding
  • Connectivity: dual Ethernet, optional WiFi module, RS-485 serial port, USB 2.0/3.0
  • Expansion: Mini-PCIe slot for 4G/5G or AI acceleration modules


Materials & Construction
  • PCB: FR-4 TG150, 2 oz copper, conformal coating for moisture and dust resistance
  • Components: industrial-grade capacitors, resistors and connectors
  • Cooling: aluminum heatsink with thermal pads for critical ICs
  • Protection: TVS diodes and filtering circuits on power and signal lines


Application Scenarios
  • Fire-safety monitoring systems
  • Industrial and outdoor security cameras
  • Traffic and public-space surveillance
  • Smart city and IoT video nodes


Key Advantages
  • Stable operation across wide temperature ranges and harsh conditions
  • Optimized power design for 24/7 continuous duty
  • Strong anti-interference capability; designed with FCC/CE EMI considerations
  • Modular layout for easy customization and scalability
  • ONVIF support for integration with third-party systems


Specifications / Technical Data
  • Model: High-Reliability Surveillance System PCBA
  • Chipset: HiSilicon or equivalent
  • Operating temperature: -40 °C to +85 °C
  • Power input: 12V DC with over-voltage and reverse-polarity protection
  • Memory support: up to 8GB DDR4; eMMC up to 32GB
  • Video outputs: HDMI, CVBS, IP
  • Max resolution: 4K @ 30fps (encode/decode)
  • Connectivity: dual Ethernet, optional WiFi, RS-485, USB 2.0/3.0
  • Expansion: Mini-PCIe for 4G/5G or AI modules
  • PCB material: FR-4 TG150, 2 oz copper, conformal coating
  • Cooling: aluminum heatsink with thermal pads
  • Protection: TVS and filtering on power and signal lines
  • Compliance focus: designed for strong EMI immunity, FCC/CE considerations
