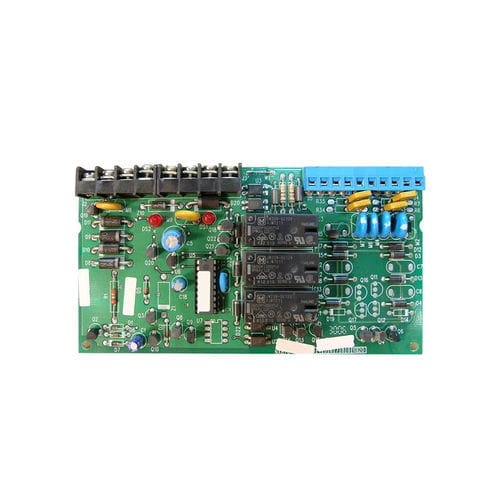

Printed circuit board for industrial applications

EMS fire pump control panels are precision-engineered control systems for critical life safety applications, ensuring fire pumps activate and operate reliably during emergencies.

Overview

• Designed and manufactured to meet strict international standards for emergency fire pump operation in buildings and industrial sites.
• Engineered for installation in pump rooms and harsh environments with clear status indications and comprehensive alarms.

Core features

• Certified compliance with NFPA 20, UL 218 and FM Global to satisfy regulatory and insurance requirements.
• Robust power management with options for across-the-line (direct) starting, reduced-voltage starting and soft-start controllers.
• Intuitive status monitoring: visual indicators and alarm outputs for pressure, power loss and phase sequence.
• NEMA-rated enclosures suitable for pump rooms and industrial conditions.
• End-to-end full-load functional testing performed on each panel to verify emergency performance.

Standards & Compliance

• Designed and built to comply with NFPA 20, UL 218 and FM Global requirements.

Technical specifications

• Product type: EMS fire pump control panel for critical life-safety applications
• Certifications: NFPA 20; UL 218; FM Global
• Power management modes: across-the-line (direct), reduced-voltage, soft-start
• Monitoring & alarms: visual status indicators; alarms for pressure, power loss and phase sequence
• Enclosure: NEMA-rated robust enclosure for pump rooms and industrial environments
• Testing: full-load functional testing on each panel
• Typical applications: building fire protection systems, industrial fire pump control
• Manufacturer: TECOO (Tecoo Electronics Co., Ltd)
• Product ID: 286035460
