AVV-701 is a simple and reliable laser alignment system that
is suitable on all rotating machineries. It offers the benefits
of precision shaft alignment with minimal wastage of time without stretching your budget.
AVV-701 makes quick, accurate shaft alignment a simple task for all new alignment users!
The system is designed of easy in use and user-friendly interface!
Advanced Features:
Measurement with less than 120deg. of rotation in any directions
Horizontal, vertical and flanged-mounted machines
Soft foot check
Thermal growth
Shim simulation
Communication with PC via USB cable
AVV-701 - Cost Effective Way to Reliability
|
|
LAP PD series line lasers are designed for heavy duty industrial applications, where a clear, precise line is desired for alignment purposes.
The cylindrical aluminium housing with Ø 40 mm fits the brackets commonly used on machines worldwide. It incorporates the wide range power supply, control electronics, laser diode and multiple element precision glass optics. PD laser withstand even the hardest conditions in areas where dirt and contamination are a normal part of the environment.
The wide range power supply operates on all mains worldwide and tolerates massive surges and power fluctuations.
|
|

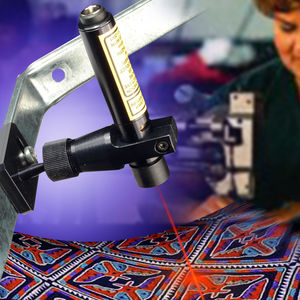

HD diode lasers are designed for use in rough industrial environment.
They generate lines that are clearly visible even in daylight. A rugged stainless steel housing protects laser diode, electronic circuitry and precision optics.
The laser diode is galvanically seperated from the power supply, which makes the laser extremely resistant to voltage peaks or current variations. The wide range input capacity enables the HD lasers to be used with all typical low voltage power nets.
The optics may be focused without tools. Spot size or line width can be adjusted. The line position doesn't change during focusing.
* focusable
* line, spot, crosshair lasers
* small, robust stainless steel housing
* IP 67, waterproof
* 1 - 30 mW
|
|
Easy-Laser® Extreme™ is ATEX/Ex approved and one of the toughest and most robust shaft alignment systems on the market, with parts made of stainless steel and hard anodised aluminium.
Designed for those who work in demanding environments, where precision, reliability and user-friendliness are of the utmost importance.
Easy-Laser® Extreme™ is intrinsically safe and ATEX/Ex approved for use in explosive areas. It is designed for the most demanding type of applications and environments, and comes with a 4 year warranty.
|
|

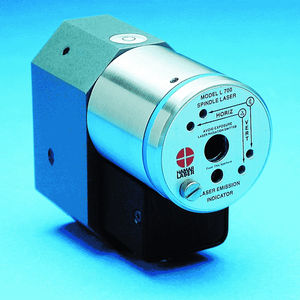

The L-700 Spindle Alignment System has been helping Detroit build quality automobiles for over 10 years. Prior to the L-700, transfer lines were aligned with indicators and alignment bars. This often resulted in frequent shutdowns due to poorly aligned spindles causing premature tool wear. Poor alignment also resulted in high reject rates, excessive downtime and poor productivity. On one line alone, the L-700 was able to save one GM plant $1.2 million in reduced tooling costs and downtime in the first year of operation after laser aligning the whole transfer line.
The L-700 can also be used for aligning the critical components of a lathe, aligning spindle boxes of large rotary dial machines, aligning the output shaft to the centerline of a twin-barrel extruder and many other applications. When combined with our P-405 Remote Optical Square, the L-700 can also easily measure cross-slide squareness on a lathe
|
|
The EC-805 or PICO is designed for light-duty use, and is intended for use by woodworking craftsmen such as cabinet and furniture makers, who need to project cutting lines from time to time in a commercial or light industrial environment.
This incredibly small laser, with an incredibly small price, is only 3.15 inches long, and 0.7 inches in diameter. More than fitting anywhere you need to place it, the Pico will fit your budget with plenty of room to spare.
|
|
The L-705/L-706 laser systems are highly accurate, easy-to-use bore alignment lasers that can be used for virtually any bore alignment application. Bores ranging from 1.5" (38.1 mm) to 36" (914 mm) or more can easily be accommodated.
The L-705 is used for bore alignments out to 50 feet (15 M) and the L-706 is used from 50 to 110 feet (15 M to 33.5 M). Both lasers feature battery operation and micrometer-controlled angular adjustments, and both lasers are centered to their housings to within .0005" (.013 mm).
Our competitively priced L-705 Laser Borescope system is the fastest and most accurate extruder alignment system on the market. Its patented self-centering target and simple laser fixture are so easy to use you can have misalignment data in less than 10 minutes, including setup!
|
|
Designed primarily for roll alignment and other similar applications, the L-742 Dual Scan® Laser System is the only laser in the world to offer 2 automatically rotating laser planes that are accurate enough for today's ever-tightening tolerances. The laser can be configured by the factory to have either 2 vertical planes, or 1 horizontal and 1 vertical laser plane. This creates a powerful tool to not only MEASURE but also FIX problems in a fraction of the time needed with conventional methods.
|
|
The L-743 Triple Scan Laser Alignment System is one of only 2 lasers (the other is the L-733) in the world to offer 3 automatically rotating laser planes that are accurate enough for today's ever-increasing tolerances. This creates a powerful tool to not only MEASURE but also FIX problems in a fraction of the time needed with conventional methods. From machine tools to aircraft assembly, the L-743 is the best alignment system on the market today.
|
|
OPTALIGN smart / OPTALIGN smart EX
Modular mid-range alignment system, also available in intrinsically safe version, which can be fully loaded to cover both shaft and geometric applications
Its intuitive operation, ergonomic design and the loaded features make OPTALIGN smart a called for feature in the maintenance of rotating machinery such as pumps, motors, gearboxes and compressors. OPTALIGN smart possesses the powerful features required in productive maintenance technology, is a proud recipient of the 2007 red dot design award, is product of the year 2007.
|
|
Measurement of flatness at a higher level
Measurement of surface flatness at a higher level
LEVALIGN Ultra is a flatness measurement system featuring a rotating laser in conjunction with the ultra-modern ROTALIGN Ultra computer. The system provides the ideal solution for quick and efficient measurement of surface flatness and levelness. The computer’s large colour backlit display shows all relevant information, including a context sensitive menu, in a self-explanatory manner. As an example, in the result screen, the coloured tolerance code for each measured point indicates if and to what extent tolerances are met. The system provides an accuracy of 0.02 mm/m up to a diameter of 40 m.
|
|
|
|
|
|

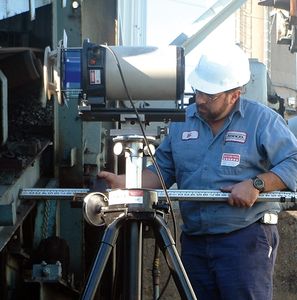

ASGCO Laser Alignment ASGCO's Laser Alignment Services improves the overall conveyor performance using state-of-the art laser equipment and digital processors. ASGCO technicians can accurately analyze the alignment of all the components and structure of the conveyor for better conveyor efficiency.
Improves Conveyor Efficiency - by extending belt life and components, improving dust control, and reduced power consumption.
Provides Accurate Analysis - of all conveyor pulleys, drives, take-ups, components and structure.
Precise Corrections - are identified on a detailed conveyor status report via a computer printout on site after the analysis.
Total Satisfaction Guaranteed (TSG) - of our laser alignment and conveyor services is guaranteed each and every time.
Laser Alignment identifies the areas of the conveyor that are responsible for:
- Belt mis-tracking
- Abnormal or premature pulley lagging wear
- Premature bearing failure
- Pulley end disc failure
- Off-center loading issues
- Material spillage
- Idler, frame, chute damage
- Excessive motor current draw
|
|
Perfect alignment for pulleys, belt drives and other power transmission equipment
An aligned pulley system reduces both pulley and belt wear, vibration of machinery, which in turn leads to improved machine performance. Good pulley alignment reduces unscheduled downtime, and improves the reliability of your equipment.
PULLALIGN is tailor-made for the job as it is easy to use, and requires only a single operator. Due to its versatile design, the units mount onto virtually any pulley face, making it the ideal partner for most pulley alignment jobs.
|
|
|
|
|
|
TMEA series
- Easy-to-use: three-step process, measure-align-document
- Selectable mm or inch reading of measurement facilitates worldwide use levels allow easy and fast positioning of the measuring units
- Supplied with high precision SKF pre-cut shims for accurate alignment
- Display unit provides clear "real-time" values during the alignment process making rechecking alignment unnecessary
Shaft alignment tool TMEA 2:
- "Soft foot" feature is shown on the digital display, which easily guides the operator through this function
- Magnetic brackets allow easy fixture of the measuring units onto the shaft
- Maximum distance of 0,85 m (2.8 ft) between the measuring units
Shaft alignment tool with printer capability
TMEA 1P/2.5:
- Optional printer facilitates recording of alignment activities
- Maximum distance of 2,5 m (8.2 ft) between the measuring units makes it suitable for aligning variety of applications
Intrinsically safe shaft alignment tool TMEA 1PEx:
- Intrinsically safe classification EEx ib IIC T4, ATEX code: II 2 G
- Standard printer facilitates recording of alignment activities
- Maximum distance of 1 m (3 ft) between the measuring units makes it suitable for aligning variety of applications
|
|
High end modular alignment system, extendable to all advanced shaft and geometric applications
This cutting-edge system possesses a large high resolution full VGA TFT color display making information easily readable in low light environments or sunlight conditions.
ROTALIGN Ultra the number 1 tool in alignment features concise navigations keys, a very user-friendly and intuitive user interface, a heavy duty Li-ion rechargeable battery plus an ergonomic design.
|
|
|
|
|
|

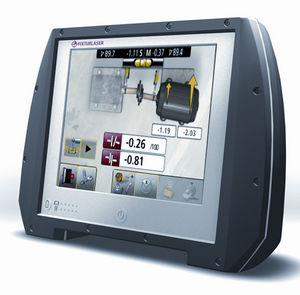

Fixturlaser XA features
3-D color animations give express results
The whole alignment process is shown on the screen, using 3-D Macromedia Flash animations that are simple to comprehend and will give you an alignment jump-start when using Fixturlaser XA. Figures and arrows show the measurement results and any requirement for alignment. Color coded values simplify and speed up the interpretation of the results.
Wireless data transfer
Wireless transmitters allow the elimination of wires connecting the transmitters-detectors to the display unit. They also increase your mobility to move around with the display box in your work place, which comes in handy when you measure the machine couplings at one place and make alignment adjustments at another.
Express mode
When you turn the shaft, the system registers the three measurement points automatically - the Express Mode. It takes you through the measurement and alignment process faster compared to the traditional methods, such as the Tripoint Method and the Clock Method.
Comment from the field:
Jacob Nørgaard Andersen, Head of sector service technology, Siemens Wind Power A/S, Denmark
"We have many people using the Fixturlaser XA system and therefore it is very important for us that it is easy to use. The menus are very user friendly and easy to command. We have been able to minimize the time spent on alignment by our fitters after the introduction of the laser alignment of our generators. At the same time the accuracy has improved, and there is not much depending on the specific experience and knowledge of the fitter. Fixturlaser XA alignment equipment has become one of our standard tools."
|
|
Easy-Laser® D160 BTA is attached in a few seconds (magnets) with the laser transmitter on one of the sheaves and the detector on the other. The transmitter generates a laser plane parallel to the reference sheave. The detector reads the position in relation to the laser plane and provides a live digital display of both offset and angular value. This makes the alignment of the adjustable machine very simple. The accuracy of the digital readout also means that you can align within prescribed tolerances and rely on the result.
The separate display unit makes it all even easier, as you can read off and follow the adjustment at the precise point on the machine where the adjustment is made. The display is also backlit for optimum visibility in poor lighting conditions.
|
|
|
|
|
|
Fixturlaser is the first laser alignment specialist to introduce a tool for shaft alignment that is ultra portable – the Fixturlaser UPADXA.
The alignment system, Fixturlaser UPADXA, has all the capabilities of our state-of-the-art laser shaft alignment system, Fixturlaser XA: the user friendly and animated graphical interface, wireless data transfer, and automatic registration of the measurement points, etc. This is all packaged in an angled display box equipped with a Velcro® fastening that enables attaching it to your arm - your work freedom-in-a-box!
Fixturlasr UPADXA Features
Express evaluation with animated and color display screen
3D Macromedia® Flash™ is used to simplify the measurement, evaluation, and the alignment process, figures and arrows will show you how to proceed with the process. Color coded values will help you interpret and evaluate the results.
Express data transfer
With the elimination of wires connecting the transmitters and detectors to the display unit, you have complete mobility to move around in your work place. The wireless transmitters have built-in Bluetooth units allowing for express data transfer.
Express mode
Incorporating inclinometers in both measurement units, have allowed us to introduce a new function to our users – the Express Mode. When rotating the shaft and the measurement units are kept still in the measurement position, the system will automatically register its value.
Express documentation
The unit is equipped with a USB slave port. When connected to a PC, it will appear as a mass storage device in your PC; files are therefore easily transferred to your hard drive.
|
|
|
|
|
|
The Fixturlaser PAT will be the final solution to all your belt alignment needs
With the Fixturlaser PAT, you are never in doubt on whether your belt transmissions are aligned or not. By using the groove as reference, you will achieve a precise alignment which reduces belt wear, bearing failures and vibrations.
The Fixturlaser PAT comes with two line laser transmitters, each equipped with two spring loaded guides which fit into the pulley grooves. The Fixturlaser PAT is equipped with various sized removable guides to fit standard sheave sizes A-E (6 mm - 40 mm). Additional guides for alignment of timing belts are avilable as accessories.
The use of two laser transmitters with integrated targets, makes it very easy to find out what kind of alignment that is required. Parallel offset, angular error and twist are instantly visible to the operator. Within a few minutes, the operator can determine if the machine requires alignment or not.
The alignment process is as easy as the mounting. Just turn on the lasers and look at the opposite mounted unit. The laser draws a line on the target label as in the illustration below. If necessary, adjust your machine position until the laser lines are aligned with the centre mark on both units.
|
|
|
|
|
|
Pinpoint accuracy with latest laser technology:
- Aligns grooves of the pulley rather than its face, allowing the alignment of pulleys of unequal width or with dissimilar faces - even fits applications where the pulley face cannot be used as a reference
- No trial and error. The laser position indicates the nature of misalignment allowing easy and accurate adjustment
Versatile and user-friendly:
- Powerful magnets allow fast and easy attachment
- Easy-to-use, requires no special training to operate
- Facilitates simultaneous adjustment of tension and alignment
- V-guides facilitate the alignment of a wide range of V-belt pulleys
Special side adaptor allowing alignment of multi-ribbed and timing belt pulleys as well as chain sprockets is available as accessory
A maximum operating distance of 6 meters (20 ft), makes it suitable for use in various applications
Sturdy aluminium housings provide great assembly stability and accuracy
Supplied in sturdy, light-weight carrying case for portability
|
|
For straightness measurement of bores and bearing journals, both in production and in the field. Very stable construction for highest measurement accuracy. Measures both open and closed bearing pockets with equal simplicity. Handles up to 150 measurement positions.
Typical applications: Crankshaft and camshaft bearings in diesel engines, bearing journals and hull penetrations in propeller shaft installations, workpiece positioning in machine tools.
|
|
Easy-Laser® BTA D150:
With digital readout! For simple and precise alignment of belt drives. Shows adjustment readings live on the display. The accuracy of the digital readout also means that you can align within prescribed tolerances and rely on the result.
Easy-Laser® BTA D80:
For simple, quick alignment of belt drives. The tool is fitted in a few seconds, and the laser line projected on the targets clearly shows how you need to adjust the machines. Compact and light.
Suitable for most types of drive, such as V-belt, timing belt, flat belt and chain drives. Can also be used on non-magnetic pulleys.
Typical applications: Most belt/chain drives.
|
|
• Intrinsically safe and approved for use in potentially explosive environments.
• Shows the parallel and angular misalignment between the sheaves.
• Much faster and more accurate than measuring with earlier, conventional methods.
• For both horizontal and vertical mounted machines.
• Alignment can be made by one operator.
• Also suitable for nonmagnetic sheaves.
• Fits almost any kind of sheaves: V-belt, Timing belt, Flat belt and Chain drive.
|
|
C911 - precision laser shaft alignment, field balancer, two channel vibration spectrum analyzer - all in one instrument.
Laser alignment - advanced horizontal, vertical mechanism alignment
Balancing program - up to 8 planes, up to 14 points
Displacement, velocity, acceleration measurements and 6400 lines FFT spectrum analysis
Frequency and time domain measurements, enveloping detector
Versatile PC compatible file system (FAT) allows to organize data file management and report print.
Expanable memory of 1GB SD card
USB communication interface, "mass storage device"
Firmware - upgradeable by user
"ConSpect" Windows based data base and analysis software
NiMH battery, USB type charger
|
|
|
|
|
|
Easy-Laser® shaft alignment systems has all the programs and functions you could want for the alignment of rotating machines. The EasyTurn™ program allows alignment with as little as 40° rotation of the shafts. Functions for compensation of thermal growth, alignment tolerance check and reference foot locking. Vibration measurement, Digital Sheave alignment and Geometrical measurements possible together with accessories.
Typical applications: Horizontal, vertical/flange-mounted and cardan-shaft-coupled machines, machine trains (up to ten machines in line).
All parts included in the systems are developed for rough use and to be easy to mount on the machines. The rugged aluminum and stainless steel design guarantees stable measurement values and reliable alignment even in the harshest of environments. As a user you are given step-by-step instructions on the display through the entire measurement procedure. Measurement values are displayed live, making it easy to adjust the machine to a correct position. The displayed resolution can be set as low as 0.001 mm [0.05 mils/thou].
|
|
|
|
|
|
The Fixturlaser Dirigo puts laser alignment accuracy within reach of everyone! The ergonomically designed control unit fits comfortably in one hand. The live display means that you will get instant feedback when shimming or moving the machines. This eliminates the guesswork and back and forth you're suffering through now. All this at an affordable price that means a really quick payback.
Fast, Easy, Precise
The Fixturlaser Dirigo features a unique laser line instead of the traditional laser dot. This makes setup and alignment much easier, as the line is wide and is easily projected to the laser detector.
The Fixturlaser Dirigo also features graduated labels on the laser heads that work with the laser lines, to help the operator "visualize" the misalignment condition. This visual cue reinforces the digital values that are displayed on the unit, and makes evaluation and correction of misalignment an easier process. This is very useful when performing rough alignment. The alignment data is continuously updated. All movements of the motor are simultaneously displayed on the screen. The measurement results are displayed with a resolution of 0,01 mm. As you shim or move the machine, the values will be updated to let you know exactly where you are at each step of the way. This means no more guessing about the shim amount, or how much to move a machine. With the Fixturlaser Dirigo laser alignment system there is no interpreting of the values as with dial indicators. The position sensitive detectors precisely measure the misalignment. The large LCD display clearly presents the position of the machinery being aligned.
|
|
|
|
|
|
Fixturlaser GO Features
Several of its features are adopted from the innovative Fixturlaser XA system, which will reduce the time spent on pre-alignment actions, measurement registration, performing the actual alignment, remeasuring to make certain that you have a correctly aligned machine; and, finally, documenting the measurement data.
The pre-mounted fixtures speed up mounting and packing of the fixtures.
Other characteristics facilitating the handling of the system are the icon based user interface, a typical Fixturlaser trademark, now used in our systems for more than 15 years.
The measurements can be transferred to a PC by connecting the display unit to the USB connection. When connected the display unit appears as a mass storage device in your PC. Files are then easily transferred using the Explorer on the PC.
The CCD technology used in the measurement units’ extra large detector area (30 mm)minimizes or, in most cases, eliminates the need for rough alignment. This technology also makes it possible to suppress ambient light and it rejects side spots that might interfere with the accuracy of the measurement values.
Line laser combined with the CCD, renders the laser adjustment easier than ever. The measurement units will always be in the right position sideways, and vertical adjustments are easily done by unsnapping the measurement units’ snap-on fixtures.
The three LED lights on the display unit indicate whether the couplings are within tolerance (green light), within double tolerance (orange light), or out of double tolerance (red).
|
|
|
|
|
|
FAG Top-Laser INLINE2 is suitable for precise shaft alignment of:
- motors
- gear boxes
- fans
- pumps
- compressors
- etc.
You want:
- to minimise the risk of unplanned shutdowns?
- to prevent critical vibration?
- to avoid damage to bearings and shafts?
- to minimise wear on couplings and seals?
- to optimise the efficiency of your machines?
Then the FAG Top-Laser INLINE2 is the right alignment system because:
- FAG Top-Laser INLINE2 can be mounted and operated easily
- laser alignment with the FAG Top-Laser INLINE is more accurate compared to conventional alignment methods, such as dial gauge and ruler
- FAG Top-Laser INLINE2 helps to reduce vibration due to friction
- FAG Top-Laser INLINE2 increases productivity through longer operating hours
- due to the standard USB port the FAG Top-Laser INLINE2 can be operated easily with all netbooks or laptops
- NEW! optionally the FAG Top-Laser INLNE2 can be equipped with a wireless connection
Your advantages:
- Reduced wear of drive components
- Increased machine availability
- Lower energy costs
- Extension of maintenance intervals
- Longer machine lifetime
|
|
|
PLS5 is designed for layout of control points and lines for interior projects or in outdoor conditions with bright sunlight.
|
|
|
The EUCLID Model 300 is a new concept in laser-based alignment and provides savings in time, labor, and costs in an industrial environment. By eliminating the effects of laser pointing errors the operator can now quickly and accurately align objects over distances of 300 feet. This lightweight, rugged, and portable system employs a see-through Alignment Target system that automatically compensates for laser movement in real time. The operator no longer has to precisely aim the laser beam onto the end Reference Target.
|
|
|
|
