COMTEC® 6000 is an InSitu Oxygen & COe (Combustibles) flue gas and process gas analyser. The innovative combustibles sensor pioneered and developed by ENOTEC (patent pending), combines with its world-proven "leak-proof" Zirconia Cell technology to produce the worlds first InSitu O2 & COe analyser.
Both measuring cells, (O2 & COe), are actually located inside the process measuring actual real-time values without the need for sampling, conditioning and expensive hybrid systems. The COMTEC® 6000 probe simply installs directly inside the duct for direct & continuous dual readings of Oxygen & COe present. COMTEC® 6000 can easily be installed as standalone instrument or as a retrofit upgrade to an existing system. It's designed to be maintenance free, with minimal calibration requirements, and completely user-friendly operation.
|
|
|
The continuous measurement of oxygen and COe (combustibles) in cement plants has always been a challenge for any type of analysing probe. Up to now, it’s been nearly impossible to extract measuring gas for continuous analysing systems, because the probe becomes “cemented over and sealed” very quickly, resulting in extremely high maintenance costs and kiln production down time. Now ENOTEC has solved these special analysing problems in the cement industry with the new analysing system called CEMTEC®. Now Cement plants are able to significantly reduce their maintenance costs to a fraction of their previous costs. Mounted in a water-cooled outer jacket, the measuring probe is continuously turning +/- 90°. This keeps the gas inlet area free of cement and prevents the dust build up on the probe filter. Additionally, a highly effective automatic cleaning system with pressurised air ensures that the probe with its dust filter and the gas channels remain completely clean and clear. The InSitu probe measures oxygen using a ZrO2 cell and the COe concentration with a Ga2O3 sensor. The system delivers 2 continuous measuring signals with a response time less than 1 second. In addition, it is also possible to extract flue gas for the extractive type flue gas analysis (SO2, NOx, etc.).
|
|
H2scan’s Series 700 in-line hydrogen-specific process monitors are designed for ease of use, interface flexibility and true process control. The HY-OPTIMA™ 700 is a solid state sensor that can operate in humidity and process gas streams with temperatures up to 100ºC. The HY-OPTIMA™ 700 is ideal for hydrogen production and petrochemical applications where real time measurements of hydrogen can increase process plant efficiencies, improve diagnostics and enhance maintenance management translating into higher profitability.
Performance
Hydrogen Sensitivity Range:
0.5% to 100% hydrogen by volume at 1ATM
Typical Response Time: T90 less than 30 sec
Ingress Protection: IP64 capable
Calibration Interval: 90 days
Product Life Expectancy: 10 years
Accuracy: ± (3.0% of indication + 2000ppm)
Interface Options
Input Voltage Range: 8VDC to 13VDC
Input Current: 0.5A
Analog Outputs: 4-20mA
Serial Communication Options: RS232 or RS422
Relay Contacts: Two programmable 60VDC/1A
SPDT relays with both normally open (N.O.)
and normally closed (N.C.) contacts.
Operating Conditions
Operating Humidity: 0% to 95% RH
Flow Rate: 0.1slpm to 50slpm
Pressure: 0 to 7bar gauge, 0 to 100psi gauge
Process Gas Temperature Range: -20ºC to 100ºC
Operating Temperature Range: -20ºC to 40ºC
Storage Temperature Range: -40ºC to 50ºC
Calibration Background Gas: Nitrogen
|
|
Non-Sampling, integrated Co2 measurement and control for carbonated beverages.
The CarboCheck is the world's leading CO2 monitor and control system and uses the well known saturation pressure/temperature technique for accurate, non-sampling measurement. CarboCheck can be used for measurement alone or configured as a control system.
The CarboCheck sensor features a silicon rubber membrane, through which the dissolved CO2 permeates into a sealed, evacuated chamber. The partial pressure of the gas is then measured and displayed by the analyser/control unit as a CO2 content. The system incorporates a vacuum exhauster to regularly evacuate the sensor, providing continual, accurate measurement of dissolved CO2. The analyser/control unit can be linked to a carbonation system to enable fully integrated CO2 measurement, injection and control.
Benefits:
-Accurate monitoring and control of dissolved CO2 levels in carbonated beverages.
-Improved "right first time" carbonation figures in-line or in tank.
-More efficient process control.
-Reduction in re-work.
Features:
-Accurate to +/- 0.02vol/vol(+/- 0.04g/l)
-No sampling or product by-pass lines
-Hygenic fitting, can be cleaned in place
-No moving parts
-Low maintenance requirement
-Available as single /dual channel controller or up to 4 channel monitor.
Typical Applications include:
-Beer carbonation ex-filter
-Mineral waters carbonation
-Sparkling wines carbonation
-In-line CO2 monitoring on brewery and soft drinks packaging lines
-Carbonation of pre-mixed drinks.
|
|
KIMO, French manufacturer of measuring instruments, designed and developed AQ100 to meet with requirements of new regulations on CO2 air detection.
Key features of AQ100: easy and friendly use, large display, accurate measurements, CO2 / temperature probe.
- CO2 : from 0 to 5,000 ppm
- temperature (integrated inside the probe) : from –20 to +80°C
AQ100 is supplied with calibration certificate.
|
|
The package Analyzer Model 76050
The ultimate tool for package analysis
The MecSens Gascheck® is the ultimate tool for analysis of beer and soft drinks in glass and PET bottles as well as cans. The instrument is based on the popular MecSens piercer but its control, operation and data management are handled by a high performance touch screen PC. The unit automatically measures headspace volume, temperature as well as trace oxygen levels in headspace and liquid.
Its modular design allows upgrading to the MecSens Gascheck® which provides for the measurement of CO2 in liquid as well. The ultra sophisticated miniature channel flow chamber allows accurate headspace analysis and is an example of MecSens engineering and its Swiss precision manufacturing capability.
|
|
PerkinElmer recently acquired Arnel, a recognized leader in engineered solutions for GC applications in the hydrocarbon processing, food & beverage and industrial hygiene markets. PerkinElmer continues to provide standard and custom engineered solutions based upon the Clarus GC platform.
PerkinElmer offers more than 100 turnkey solutions with defined specifications that cover a wide range of applications and requirements in many industries – petroleum refining/petrochemical, natural gas and dissolved gases in transformer oils – providing superior analytical capabilities and ease-of-use.
And if our standard analyzers do not meet your needs, we can configure an analyzer to match your requirements.
|
|
With one of the most comprehensive families of sensors and on-line analyzers for pH, conductivity and dissolved oxygen, Yokogawa is recognized as a world leader in the field of analytical equipment.
|
|
KIMO, French manufacturer of measuring instruments, designed and developed AQ200 for CO/CO2, hygrometry, temperature and pressure control.
Key features of AQ200 :
- easy and friendly use: large display, browsing joystick
- multi-probe innovating system: can be used with 3 probes :
- CO / temperature: from 0 to 1,000 ppm and from -20 to +80°C
- CO2 / temperature: from 0 to 5,000 ppm and from -20 to +80°C
- CO2 / temperature / hygrometry: from 0 to 5,000 ppm, from -20 to +80°C, from 5 to 95%RH
- 3 interchangeable measuring modules: individually calibrated and automatically recognized by the instrument :
- 1 climatic conditions module (hygrometry, air pressure and temperature)
- 1 thermocouple temperature module (4 channels)
- 1 current / voltage module
AQ200 can measure and store up to 8,000 values, which can be saved on your PC, via wireless communication system.
|
|
Portable oxygen analyzers Series 512
New generation of portable analyzers
The MecSens series 512 hand-held analyzers are designed for off-line oxygen measurements in very harsh conditions. They fulfill all requirements for on-the-spot measurement in the beverage, power, water, semiconductor and chemical industries.
This new line of high quality portable instruments with logging capabilities display both oxygen concentrations in either dissolved or gaseous units from trace levels to saturation and the temperature of the sample.
|
|
Gas Analysers
WITT analysers are available as stationary or portable units for different types of gases and areas of application. Depending on type of application, they can be supplied separately or integrated with mixing systems. For local or remote monitoring and control extensive sensor technology and electronics are available. WITT are happy to design and build equipment to meet special requirements.
OXYBABY® 6.0 for 02 or 02/C02
Cordless hand held oxygen or combined oxygen and carbon dioxide analyser for checking modified atmospheres in food packs. The ideal instrument for portable, faster and accurate sample tests at the packaging machine, in stores or in laboratories.
OXYBABY® a cost effective mobile alternative to tabietop / fixed analysers for welding and food technology.
Ensure that the quality of packaged product is maintained (HACCP), guaranteed continued customer satisfaction.
The ideal instrument for sample tests with a minimum sample gas requirement, allowing the smallest of modified atmosphere packages (MAP) to be tested.
|
|
Zirkonia Oxygen Analyser
BA 1000
Insitu ZrO2 oxygen analyser
Fast response time
Zero drift free
No cal- and reference gases necessary
Easy installation
Oxygen Flue Gas Analyzer
BA 2000
Oxygen Flue Gas Analyser with upstream filter
Durable ZrO2 – cell
Fast response
Quick probe and filter replacement
Easy calibration by instrument air
|
|
Many thousands of OXITEC® oxygen measuring systems are in operation throughout the world, providing customers with reliable, accurate measurements that guarantee easy and safe control of combustion processes. The OXITEC® analysing systems are the consistent advancement of the InSitu oxygen measuring technique on zircon oxide basis. Only the special gold brazing technique developed by ENOTEC guarantees a durably gas tight measuring cell and makes a regular calibration of the probe redundant.
Probe material and design make a problem-free use of the OXITEC® analysing systems for many years possible, also under harsh conditions, and apart from the explosion-proof execution (probe and electronics) also specially designed models for almost all conceivable applications are available. By the InSitu measurement (measurement directly in the flue gas, without extraction) the OXITEC® oxygen analysing system is maintenance-free, and also concerning the reaction rate OXITEC® is clearly superior to each extractive measurement.
The simple operation of the electronics and the interactive operator guidance make the handling of the SME5 evaluation electronics a child's play.
OXITEC® oxygen analysing systems are available in explosion proofed version (ATEX, CENELEC), too. As the only manufacturer in the world ENOTEC has an ATEX certificated dust explosion proofed probe available.
|
|
Multi Component Gas Analyser
BA 3500
Multi channel gas analyser
Traces O2 with ZrO2 module
Percent O2 with paramagnetic module
CO, CO2,CH4 with NDIR module
19" or bench top version
|
|
Portable multi-functional
Analyser MAPY 4.0
for 02, C02, He or 02/C02
Analysing System for the monitoring of protective atmospheres in food packaging (MAP) and welding. For continuous analysis (in-line) and also intermittent sampling via a needle e.g. from food packs. A flexible analyser to guarantee quality and productivity of production processes. Available as a single or double analyser for carbon dioxide, oxygen, helium.
Benefits
- minimum sample gas required for analysis of smallest volumes (e.g. food packaging) fast response time
- fast measuring results of sampling
- simple to operate via touch-screen
- reliable steady measuring results and high accuracy through pressure compensation
- simple calibration of sensor
- permanent monitoring of set limit values
- alarm signals are given if the set limits are exceeded and a potential free contact operates to e.g. auto-stop your machine to avoid quality problems
- easy to clean stainless steel housing for maximum hygiene, splash-proof
|
|
O2-sensors/controllers
MG-4000-R2
Description
The MG-4000-R2 industrial oxygen (O2) transmitter is designed for measuring and analysis of the O2 content in exhaust gases from oil-, gas- and biofuel-fired boilers and furnaces.
The oxygen transmitter together with a controller type MOG-1000-O2K or MG-O2R and actuators enable optimization of the fuel/air ratio to a high average boiler efficiency.
The oxygen transmitter consists of two parts: the oxygen sensor probe and the central unit transmitter. The design is developed for industrial use.
The oxygen sensor probe, which is to be mounted in the flue gas duct directly after the boiler, is small and requires no reference air.
The oxygen sensor probe comprises ZrO2 sensor, heating element, head amplifier and a current source for reference ion pump.
The MG-4000-R2 central unit transmitter comprises power supply unit for the sensor and the internal electronics, I/O-signal connections, alarm relay outputs and a operating panel with a 2x16 character LCD screen with back light, Key pad for programming and eight function LED´s for easy reading of the operating state.
Oxygen Measuring functions, control and calibration are carried out by the built-in micro controller in the central unit of the oxygen transmitter.
Functions
- Zirkonium dioxide sensor
- Install directly in the flue gas duct
- No reference gas required
- Calibrated in ambient air
- Small and easy to install sensor probe
-Connects easely to Micatrone boiler computer MOG-1000-O2K or O2-controller MG-O2R for complete control and monitor functions needed for O2-control
|
|
The new EUROLYZER ST by AFRISO-EURO-INDEX is an ergonomic, light-weight flue gas analyser for checking and servicing oil- and gas-fuelled systems (optionally also for pellet systems). The extremely easy-to-handle device is already approved according to BImSchV and KÜO (TÜV By RgG 190) as well as DIN EN 50379-2. In addition, the user benefits from maximum product reliability since quality and production of the instruments are subjected to regular inspections and stringent checks by TÜV-Süd.
The intuitive user interface excels with high user-friendliness that is further supported by a colour-coded menu system.
|
|
Analysers
A broad range of applications like boiler trim, emission monitoring, ammonia slip monitoring, combustion efficiency, LEL warning indication or inner atmosphere control require analysers with different measuring principles. Bühler offers optical, paramagnetic and zirconium technologies as well as tuned diode laser (TDL) gas analysers.
Portable trace O2-analyzer
BA 4510
Portable oxygen analyser
With ZrO2 measuring cell
O2 traces analysis
Internal pump
4-20 mA output signal, RS 232 serial interface, adjustable relay contacts
|
|
Process indicators for oxygen Model 51101
High quality analyzer for industrial use
The MecSens model 51101 in-line process analyzers are designed to measure oxygen levels in very harsh
conditions.
They fulfill the requirements for continuous measurement in beverage, power, water, semiconductor and chemical industries. This line of high-quality in-line wall-mounted instrumentsdisplays oxygen concentrations of gases and liquids well below 1ppm respectively 1ppb and showmedium temperature accurately at the point of measurement.
|
|
Applications: for controls and the complete analyzes of the industrial and domestic boilers, you will be able to store the series of measurement and to exploit them on PC.

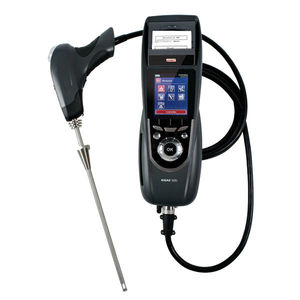

Answers reference frame QUALIGAZ
2 cells O2 and CO
2 optional cells NO (Nox), NO2, SO2 with the choice.
O2, CO2, CO, CO of smoke, ambient CO Peak, NO, NO2, Nox, SO2. Room temperature, of smoke, Delta T ECS.
T Departure and T return
Differential pressure, Delta P
Excess of air, Losses, Output
Index of opacity
Current of ionization
Sealing of the gas network
5 preprogrammed fuels: natural gas, heavy fuel, domestic fuel, butane, propane.
5 other fuels can be programmed on request.
Impact printer integrated with standard paper (not thermics).
Memory size of 250 series of measurement.
Possibility of recording and of printing the indices of opacity.
Comparison between O2, CO2 and excess of air (Lambda)
Integrated room temperature, of smoke and differential T.
Detection and localization of the gas leaks.
Manual switch or automatic of protection of the cell CO.
Indicator of wear of the state of the cells.
Food: refillable battery or sector 230 Vac.
Delivered in a case, with note of use and certificate of calibration.
|
|
|
Waste gas, biogas, off-gas, blast furnace and coke oven gas are often used as fuel for boilers, reboilers, furnaces, gas turbines and incinerators. The highly variable BTU content makes it difficult to use these fuels efficiently, safely and with minimum emissions. This analyzer directly measures the flow of air needed to burn a flow of a variable composition fuel gas.
|
|
|
Control of the air-to-fuel ratio in premix gases is essential for venturi or diaphragm mix outlet stations in glass and fiberglass production and also for ribbon burners or flame treating applications. PreMix analyzers take a sample of premixed gas, burn it and determine the resultant excess oxygen or excess fuel.The CMFA-P 2000 is portable, the PreMix 2000 is fixed.
|
|
Gas analysis for the biogas process
BCT-50-100: The compact alternative
The usual sensors, based on the BACCap-Technology, were installed in the BCT501000 for gas analysis of methane and carbon dioxide in biogas, in a compact and roboust housing. This pressure-compensated system has two infrared sensors for measuring CO2 (up to 50 Vol.%) and CH4 (up to 100 Vol.%) without any interferences to humidity and other gasses, like hydrogen sulphide. Due to the internal heated piping, made of stainless steel, there won´t be a corrosion in the inside of the apparat. You can see the measuring data at the display and you can connect them through analog outputs, for example to a process control system.
As an active sampling with a pump is not needed, the BCT50-100 offers an independent of flow and reliable gas analysis, especially for fermenters with low gas volume.
The resulting gas mixture of methane, carbon dioxide and other gasses is piped through the system directly.
|
|
Advanced Gasmitter for biogas applications
NDIR-Dual Wavelenth Principle
OEM-Gastransmitter with improved characteristics
• Simultaneous measurement of CO2 and CH4
• No cross sensitivity to water steam and H2S
• Maximum long term stability due to high grade devices
on the PCB
• Fast response time
• Superior accuracy due to improved signal-to-noise-ratio
• USB and RS485 interface
• Linearized analogue output: 4...20mA / 0...8V
• Display for measurement range deviation: 2...22mA output
• Web based communication software
• Simple integration into analyzers and measurement systems
• Customizable to measure various combinations of gas
|
|
Series 200ACE Acetaldehyde Analyzer
Meets ISBT Method 11 criteria for selective measurement of acetaldehyde in CO2
- Rugged, low cost, low maintenance, turn-key system
- Capable of PC-based control and data logging
- Batch or continuous stream monitoring
- Detector: Flame Ionization Detector (FID)
- Automatic, hands-free calibration, flow setting and analysis
- Detection limits for acetaldehyde of < 30 part-per-billion (ppb)
- Instrument operating temperature: ambient
- Detector temperature: factory set; adjustable
- Oven temperature regulation: factory set with software controlled conditioning
- Tested against virtually all of the potential alcohol and oxygenate impurities that could be present and determined to be interference-free
- Acetaldehyde is captured by the software system, with results displayed digitally on the instrument's front panel
- On-board software package contained in the Series 200ACE allows complete unattended operation
- Installation: bench or 19" rack
- Power: 115-230 V, 50-60 Hz
|
|
Series 200AHC Aromatic Hydrocarbon Analyzer
Specific detection of benzene within beverage-grade carbon dioxide.
Trace aromatic impurity monitoring is of critical importance to carbon dioxide manufacturers and the carbonated beverage industry. The Series 200 AHC meets all ISBT Method 12.0 criteria for selective measurement of benzene in carbon dioxide. Continuous stream or batch sampling operations are readily performed.
The Series 200 AHC is specifically designed as a rugged, low cost, low maintenance, simple to operate, turn-key system. No cylinder support gases are needed. Calibration and sample introduction are totally automated. A newly designed photo-ionization detector (PID) and proprietary technology are used for the specific measurement of benzene without interference from other potential impurities in beverage-grade carbon dioxide. Detector response is linear over three orders of magnitude. The detectable limit for benzene is 3 ppb, which is far below the ISBT guideline limit of 20 ppb. GOW-MAC’s Series 200 AHC system is also capable of PC-based control and data logging. Full documentation is provided, along with optional customer training and support services.
|
|
Series 200BTEX Gas Analyzer
Meets all ISBT Method 12 criteria for selective measurement of BTEX (benzene, toluene, ethyl benzene, o-xylene, m-xylene, and p-xylene) in CO2
- Rugged, low cost, low maintenance, turn-key system
- Features: Auto-Calibration, Auto-Calibration Validation, Process/Manual mode, As Found/As Left function, Sample stream selection, and six 4-20 mA outputs
- Capable of PC-based control and data logging
- Batch or continuous stream monitoring
- Detector: Photo Ionization Detector (PID)
- Automatic, hands-free calibration, flow setting and analysis
- Detection limits for benzene of < 5 ppb
- Instrument operating temperature: ambient
- Detector temperature: factory set; adjustable
- Oven temperature: factory set with software controlled conditioning
- Tested against virtually all of the potential alcohol and oxygenate impurities that could be present and determined to be interference-free
- Benzene is captured by the software system, with results displayed digitally on the instrument's front panel
- On-board software package contained in the Series 200AHC allows complete unattended operation
- Installation: bench or 19" rack
- Power: 115-230 V, 50-60 Hz
|
|
AAS8820 carbon and sulfur analyzer can rapidly detect the content of both carbon and sulfur elements in Metals, such as Steel, Cast Iron, Copper, Nickel, Titanium and alloys, also in Ores, Cement, Ceramics, Carbides, Minerals, Coal, Coke, Oxides, Oil, Ashes, Catalysts, Lime, Gypsum, Soils, Rubber, Leaves, Soot, Tobacco, Waste, Sand, Titanium, Glass and so on.
Analysis range
Carbon: 0.00001-99.99% Sulfur: 0.00001-99.99%
|
|
|
AMETEK Western Research’s UV-VIS photometric analyzers are recognized worldwide offering excellent performance and reliability for continuous monitoring of pollutants emitted from refineries, chemical plants, power plants, and other industrial facilities. Western Research has the full system design and manufacturing capabilities needed to engineer a turn-key solution to meet your requirements.
|
|

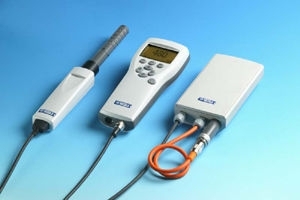

Due to the extremely fast response time of the patented M&C magneto-dynamic measuring cell with no stagnant volume as well as the negligible cross sensitivity from other sample gas components, the portable M&C oxygen analysers has a wide variety of applications. The analyser is a suitable and reliable instrument for monitoring oxygen concentrations in various gas analytical control applications including flue gas-, inert gas-, fermentation processes- and process or laboratory control measurements.
|
|
|
|
