The range presented in this chapter consists of axial fans (VRE), with grill (VGR) or basket grill (VPR), round (VGV) or square (VGC) rings, and threephase motor (VREt, VGRt, VPRt, VGVt, VGCt). In response to your specific needs, the air flow, power, rotational speeds (multispeed by windings or by controllers), noise level, overall dimensions and finish... of the fans can be specifically defined according to your requirements.
|
|
High Pressure VH 2
Axial fan for high pressure with direct drive .
Sizes:
VH 310 - VH 1.250 (Ømm)
Application:
Industries: chemicals, textiles, process engineering and mining
Technical Data:
V = 1.000 - 150.000 m³/h
P = 300 - 2.500 Pa
L = 1 - 90 kW
|
|
Medium pressure VMP
Wall unit fan for medium pressure with square mounting plate .
Sizes:
VMP 310 - VMP 1.000 (Ømm)
Application:
Ventilation for condensation, air heaters or coolers, rooms.
Technical Data:
V = 1.000 - 65.000 m³/h
P = 0 - 600 Pa
L = 0,12 - 22 kW
|
|
High pressure VHKR-C
High pressure axial flow fan range 2 with guide vane - belt driven.
Fan size range:
DN 400 - DN 1.250 (Ømm)
Application:
Extract and supply systems, max. continous ambient temperature upt to 40°C or 80°C
Technical data:
V = 5.000 - 180.000 m³/h
P = 300 - 4.100 Pa
L = 2 - 75 kW
|
|
Application
WP-D/Ex roof fans are meant for use in areas of explosion risk, where explosive atmos-
phere can occur, i.e. mixture of fl ammable substances in a form of gases, vapours and
mists with the air.
Due to increased pressure it is possible to apply the fans with local exhausts and with
the fi ltering units and also with a ventilation system of signifi cant resistances. The fan
can be used in installation with a roof discharge unit of a required dynamic rise.
Structure
The fan consists of:
– spiral housing,
– explosion-proof motor,
– radial impeller, mounted directly on the motor shaft,
– silencer – installed at the fan outlet,
– fl ange to install the fan,
– motor hood.
The basic elements of the fan (housing, impeller, silencer, fl ange) are made of non-
magnetic stainless austenitic steel whereas the motor hood is made of aluminium
plate. The whole fan is in a natural colour of stainless steel.
|
|
Jetfan
Series VSTI
Garage-Jetfan, direct driven
Fan size range:
315 - 400
Application:
Extraction of fire gases up to 300°C/120min max.
and ventilation up to 80°C permanent temperature
Technical data:
P = 100 - 400 Pa
L = 0,25 - 3,0 kW
Dynamic impulse 7 - 92 N
Certified according to EN 12101-3
|
|

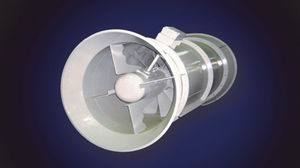

Axial Tunnel Fan
Series: VST
Fan size range:
560 - 2000
Application:
Suitable for fire gases up to 400°C/120 min. and ventilation up to max. 80°C permanent temperature
Dynamic impulse 250 - 400 N
Certified according to EN 12101-3
|
|
|
Direct driven axial fans, impeller blades adjustable at rest, explosion-proof design according to ATEX
|
|
Our wide range of axial fans includes:
- axial fans with suction inlet
- tube fans
- wall fans
- axial rooftop fans
- belt driven fans
- oven circulators
- ...
The standard models of these fans come with very short terms of delivery. We also have special models available, according to your needs.
|
|
Axiciat VA
Draws fresh air in and expels smoke. Designed for use in commercial and industrial buildings.
- Short (standard) or long (optional) galvanised steel casing
- Multiblade aluminium impeller with adjustable-pitch blades (adjustable when rotor has stopped)
- Two-piece cast aluminium hub allows blade pitch to be adjusted when rotor has stopped
- Internal motor support
- Single-speed motor (three-phase, 230/400V, 50 Hz) or two-speed motor (three-phase, 400 V, 50 Hz), IP55, coupled directly to hub
- Numerous accessories
Nine models available
Available pressure up to 750 Pa
Air flow rates: 1,250 to 95,000 m³/h
|
|

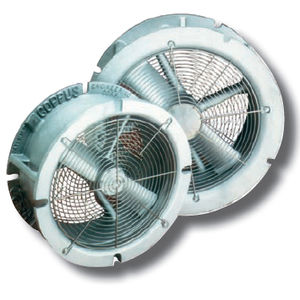

OPPUS® Air-Driven Reaction Fans
Rugged, cast aluminum housing and fan blade make these fans ideal for hazardous locations and demanding ventilation projects. The RF design utilizes action-reaction principles; compressed air is discharged through nozzles located at the tip of the fan blades providing extremely efficient, high-volume, low maintenance air movers.
FEATURES (RF-20, RF-24):
- 11,000 to 16,900 cfm (18,689 to 28,713 m3/hr) at 80 psig
- Use for fresh air supply or fume exhaust
- Can be carried or rolled to job site
- Spark resistant cast aluminum housing and fan blade
- Permanently lubricated bearings
- Flanges mate with 20-inch (508mm) and 24-inch (610mm) API tank opening
|
|
Axial-Industrial Fans are available in the following designs:
-Axial-Medium Pressure Fans MAF (up to 1.350 Pa and 168.500 m³/h)
-Axial-High Pressure Fans HAFC (up to 5.200 Pa and 145.000 m³/h)
-Axial-Roof Fans MAFR (up to 1.100 Pa and 67.000 m³/h)
-Axial-Garage Fans MAFG (up to 2.600 Pa and 168.500 m³/h)
-Axial-Wall Fans MAFW (up to 860 Pa and 52.000 m³/h)
Additionally we offer the following customizing / accessories:
-Clockwise, anti-clockwise rotation or reversible
-Frequency converter
-Variety of accessories (feet, connectors, dampers)
-Special designs for specific applications
-Higher media flow and ambient temperature
-Improved corrosion protection
-Sealed housing parts
-special voltage and frequency
For more information please visit our homepage www.elektror.com
|
|
HJB MANN
HJB 80 - HJB 120
DESCRIPTION:
Helicoidal fans
Airflow: 32.000 - 45.000 m3/h
APPLICATIONS:
- General ventilation.
- Renovation of suffy air enviroment.
- Poultry farms and greenhouses.
|
|
Mounting size for AC-input: 80mm - 250mm
Mounting size for DC-input: 42mm - 119mm
Air capacity 0.18m³/min - 24m³/min
Static pressure 12Pa - 360Pa
AC-input: 200/220/230V AC or 100/110/115V AC
DC-input: 12V DC or 24V DC
Marking: CE, UL and cUL
Long-life type also available (MDE-Series).
|
|
- Speed-controllable
- Integral thermal contacts
- Maintenance-free and reliable
The AW/AR fans have speed controllable external rotor motors.
AW fans have square plates for wall mounting, AR fans have
round flanges for duct mounting. Casings manufactured from
galvanised steel, painted in standard black. The fans have
aerofoil blade impellers in die-cast aluminum, painted in
standard black.
To protect the motors from overheating the fans have
integral thermal contacts with external leads for connection
to a motor protection device.
|
|
Turn or fixed blades series available in different materials with direct coupling or belts and pulleys transmission. For use in polluted environments and EEx proof applications.
Volume up to 150.000 m3/h and pressure up to 1.650 Pa
|
|
Axial duct fans EZR/DZR for commercial use: durable, powerful and robust
For ventilation or air extraction of
· Showrooms
· Foreman%u2019s offices
· Workshops
· Production sites
As well as for machine extraction
High degree of protection IP55
Can be fitted in any position
Duct sleeve made of galvanised sheet-steel, with flanges on both sides
Single phase AC version (EZQ/EZS) and three-phase AC version (DZQ/DZS)
Pole-changeable version, for two speeds
Special versions available on request
Air flow volume up to 15,000 m³/h
|
|

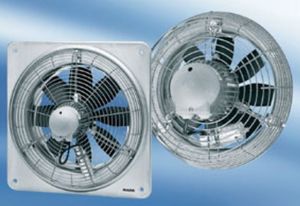

Axial wall fans EZQ / DZQ resp. EZS / DZS and DAS
For commercial use: durable, powerful and robust
For ventilation or air extraction (“E”-version only for air extraction) of
- Production facilities
- Commercial premises
- Garages
- Portacabins
- Storage facilities
High degree of protection IP55 resp. IP54
Can be fitted in any position
With square wall plate (EZQ/DZQ) or wall ring (EZS/DZS and DAS)
Single phase AC version (EZQ/EZS) and three-phase AC version (DZQ/DZS and DAS)
Pole-changeable version for 2 speeds
Special versions available on request
Air flow volume:
EZQ/DZQ resp. EZS/DZS up to 15,000 m³/h
DAS up to 69,000 m³/h
|
|
Brushless DC Fans and Impeller Style Blowers...
offer multi-speed aerodynamic performances for all types of high airflow applications. Our standard designs come with fully integrated electronics and are available in various input voltages including 12 and 24 VDC (13.8 and 27.6 VDC). Environmentally resistant designs are also available for those applications that may require exposure to natural elements. With airflow exceeding 1900 CFM, these products combine the long life expectations of brushless DC products with maximum cooling and air moving capability.
|
|
Explosion-proof fans to be used in potentially explosive areas
Type-examination tested according to European Directive 94/9/EC (ATEX)
Device group II, Category 2 G
Type of protection “e”: Increased safety
For zones 1 und 2
The following types of construction are available:
Axial wall fans
EZQ-E Ex e / DZQ-E Ex e with square wall plate
EZS-E Ex e / DZS-E Ex e with steel wall ring
Single phase AC version (EZQ- resp. EZS-E Ex e) and three-phase AC version (DZQ- resp. DZS-E Ex e)
Air flow volume up to 10,400 m³/h
Semi-centrifugal duct fans ERM-E Ex e
Single phase AC version
Air flow volume up to 870 m³/h
Axial duct fans DZR-E Ex e
Three-phase AC version
Air flow volume up to 10,500 m³/h
Axial roof fans DZD-E Ex e
Three-phase AC version
Air flow volume up to 7,100 m³/h
|
|
CHV Series
Features:
1. Compact, large airflow, and low noise
2. Bellmouth design of casing, high airflow
3. Steely bearings, suitable for continuous applications
4. Can be installed by horizontal, vertically, and obliquely directions
Casing and impeller are made by sheet steel
|
|
|
The SERIE EV-6 axial electrical fans are especially suited to applications where it is necessary to interchange the air in the rooms and for other specific industrial applications. They are equipped with conveyor, motor support and protective grid. Number of blades: 6
|
|
|
|
|
|
Fixed or variable airfoil profile axial impellers HASCONWING Hascon Engineering has been operating in the ventilation sector for more than thirty years, and it is from this rich experience that our reliable and high quality axial impellers derive. The HasconWing product range, thanks to the numerous types (impeller diameters from 200 to 1275 mm and multiple configurations of blade profiles and setting angles), permits to create customised solutions for all air movement needs.
HasconWing HF impellers are manufactured with airfoil profile blades in polypropylene (yellow PP), polypropylene glass reinforced (orange PPG) and polyamide glass reinforced (white PAG) and a light aluminium alloy hub. The impellers can work to highest rotation speedswith, multiple blades with different setting angle producing a sucking or blowing flow.
APPLICATIONS
Radiators
Blowing units
Ventilation
Axial ventilators
Generetor units
Electric welding machines
Lift trucks
Earth moving machines
Agricultural machines and tractors
Heat exchangers
Cooling towers
Animal farms
Agricultural sprayers
Refrigeration units
Air conditioning
Regrigeretion and freezing
Devices
Hovercraft
Car and industrial vehicle air conditioners
Snow cannons
|
|
A large selection of outlet positions, casing geometries, casing thicknesses and materials is available for the various impeller types. The following is a description of the standard product range; a very flexible production allows special requirements to be met as well.
* Shaped inlet
* Fire damper
* Protection grill
* Mushroom cowl
* Feet for horizontal/vertical position
* Vibration attenuator
* Jet cowl
* Flexible connection
* Counter flange
* Silencer
* Variable inlet vane
|
|
|
The Witt & Sohn mixed flow fan, called a Zentrax combines the advantageous features of an axial flow fan with the properties of a centrifugal fan. An inexpensive design and duct arrangement with a stable fan curve and relatively high pressure.
|
|
Design Complete axial fans (motor + ring-/or tubular housing with attached console + impeller + protective mesh) Used in the 200 - 600 Pa pressure range and for air volumes of 2,000 - 8,000 m3/h. Media temperatures - 40 to + 60 °C
Main applications Rail vehicle transport technology, air conditioning rail version
Special applications Cooling and ventilation, air conditioning with noise insulation
Performance range 370 - 2200
|
|
|
The New York Blower Company offers a line of axial air-moving products designed to accommodate clean-air applications. Axial fans have the ability to handle moderate-to-high air flow, moderate static pressures and are easy to install. These characteristics make axial fans ideal for supply/exhaust and inline air flow. Please review the nyb line of axial fans to find the best fit for your clean air application.
|
|
|
|
|
|
MRS Series Axial Flow Fans (34)
Axial flow fans use a propeller to create a flow of air in the direction of the axis of rotation. Because they create a large airflow, axial flow fans are optimal for a wide variety of cooling and other airflow needs.
- High-Efficiency, Low-Noise Models
- AC Input
- Frame sizes from 5.51 in to 9.84 in
- Maximum airflow from 177 CFM to 883 CFM
- RoHS compliant models available
MU Series Axial Flow Fans (16)
Axial flow fans use a propeller to create a flow of air in the direction of the axis of rotation. Because they create a large airflow, axial flow fans are optimal for a wide variety of cooling and other airflow needs.
- Slim-Line, General Purpose Models
- AC Input
- Frame sizes from 3.15 in to 4.69 in
- Maximum airflow from 19.4 CFM to 106 CFM
MDE Series Axial Flow Fans (2)
Axial flow fans use a propeller to create a flow of air in the direction of the axis of rotation. Because they create a large airflow, axial flow fans are optimal for a wide variety of cooling and other airflow needs.
- Long-Life Models (up to 100,000 hours)
- DC Input
- 4.69 in frame size
- 95.3 CFM maximum airflow
MDS/MD Series Axial Flow Fans (48)
Axial flow fans use a propeller to create a flow of air in the direction of the axis of rotation. Because they create a large airflow, axial flow fans are optimal for a wide variety of cooling and other airflow needs.
- High-Performance Models
- DC Input
- Frame sizes from 1.65 in to 6.77 in
- Maximum airflow from 4.59 CFM to 212 CFM
- RoHS compliant models available
|
|
Range of low profile plate mounted axial fans fitted with plastic impellers (250 to 630) or aluminium hub and plastic blades (710 to 1000).
Available, depending upon the model, with single or three phase motors in 2, 4, 6 or 8 poles.
Motors
All the motors are IP65 (1), Class F insulation (2), equipped with thermal protection. All motors are speed controllable except 2 pole and /4-630, /4-710, 800, 900, 1000 models.
Electrical supplies:
- Single phase 230V-50Hz. (Capacitor located inside the wiring terminal box).
- Three phase 230/400V-50Hz or 400V-50Hz.
|
|
Axial fan "Epsilon"
Diameter of impeller: 350-1000 mm
sichel shaped axial blades
100% speed controllable with external rotor motor
Application:
air heaters, heat pumps, condensers, cooling units, evaporators
|
|
... see all the products in the category
