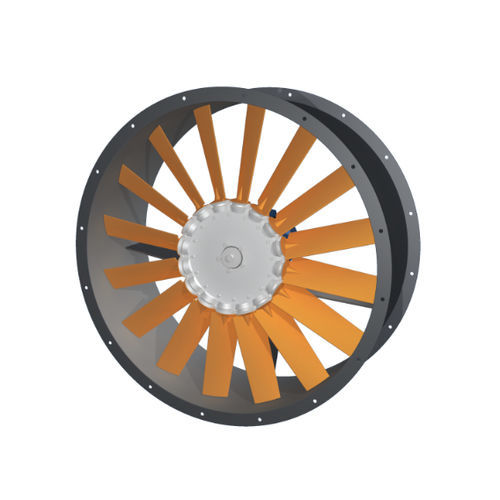

Duct fan K serieshigh-flowIP55axial
Add to favorites
Compare this product
Characteristics
- Type
- duct, high-flow, IP55
- Configuration
- axial
- Function
- ventilation
- Supply voltage
- 230VAC, 400VAC, 690 V
- Material
- aluminum, cast aluminum, steel, galvanised steel, stainless steel, PP, fiberglass
- Applications
- motor
- Other characteristics
- low-pressure
- Air flow
Max.: 237,000 m³/h
(8,369,576.013 ft³/h)Min.: 4,987 m³/h
(176,114.243 ft³/h)- Diameter
Max.: 2,000 mm
(78.74 in)Min.: 280 mm
(11.024 in)- Rotational speed
500 rpm, 750 rpm, 1,000 rpm, 1,500 rpm, 3,000 rpm
(3,142 rad.min-1, 4,712 rad.min-1, 6,283 rad.min-1, 9,425 rad.min-1, 18,850 rad.min-1)
Description
Axial duct fans. Standard low-pressure fans popular in most duct ventilation systems. Planetfan produces the largest range of duct fans manufactured in Poland in terms of available diameters.
• Operating temperatures: -20 to +55°C
• Rotor material: blades – glass fibre reinforced polypropylene, hub – aluminium.
• Installed motor powers: 0.25 – 30kW
• Motor speeds: 3000, 1500, 1000 min-1
• Motors fitted with closed bearings, maintenance-free.
• Motors adapted as standard for speed control by a frequency converter.
• Steel enclosures,
• Corrosion-protected housings – powder coating.
• Special executions:
• explosion-proof (KEX series),
• high-temperature temp. max: 105°C (HT series),
• high temperature max: 135°C (135HT series),
• Blades made of glass fibre reinforced polypropylene, hub made of die-cast aluminiumm
• High flow capacity in the low pressure range
• Dynamically balanced to class G-6.3 in accordance with ISO 1940-1
