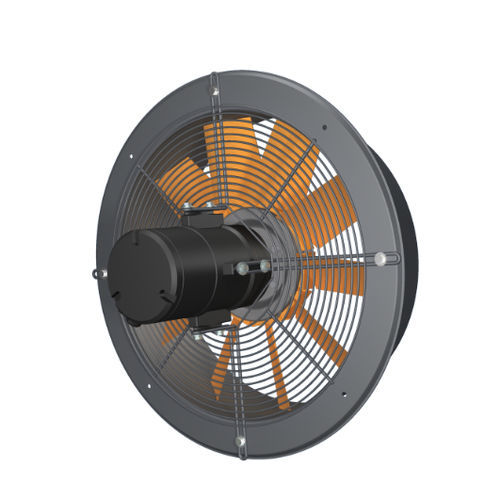

Wall-mounted fan S seriesaxialexhaust400 VDC
Add to favorites
Compare this product
Characteristics
- Installation
- wall-mounted
- Configuration
- axial
- Function
- exhaust
- Supply voltage
- 400 VDC, 230VAC, 690 V
- Material
- cast aluminum, fiberglass
- Other characteristics
- industrial, motor
- Air flow
Max.: 24,405 m³/h
(861,854.441 ft³/h)Min.: 5,470 m³/h
(193,171.227 ft³/h)- Diameter
Max.: 710 mm
(27.953 in)Min.: 400 mm
(15.748 in)- Rotational speed
1,500 rpm, 3,000 rpm
(9,425 rad.min-1, 18,850 rad.min-1)- Noise level
Max.: 73 dB
Min.: 59 dB
Description
Wall-mounted fans for mounting on the walls of industrial and large-volume rooms. They transport air in low resistance installations. Often used to evacuate large quantities of warm air accumulated in summer under the ceilings of buildings and halls. Normally made for indoor installation as exhaust.
• Operating temperatures: -20 to +40°C
• Impeller material: Blades: fibreglass-reinforced polypropylene, hub: aluminium
• Power of installed motors: 0.37 – 2.2kW
• Motors fitted with closed bearings, maintenance-free.
• Three-phase motors adapted as standard for speed control by a frequency converter
• Steel enclosures
• Corrosion-protected housings – powder-coated
• Special executions:
• Air-flow version
• Casing made of glass fibre reinforced composites
• Rotor:
• Blades made of glass fibre reinforced polypropylene, hub made of die-cast aluminium
• High flow capacity in the low pressure range
• Dynamically balanced to class G-6.3 according to ISO 1940-1
Catalogs
AXIAL FAN
104 Pages
