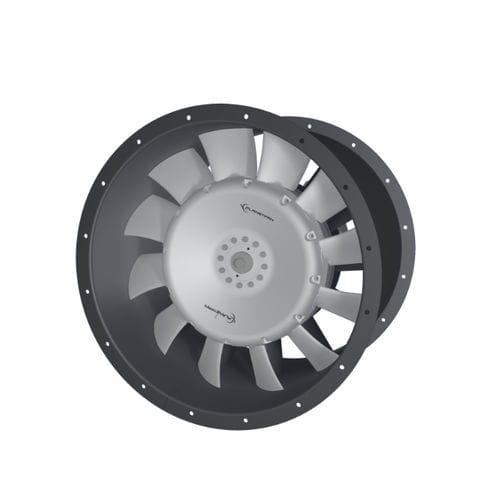

Duct fan KMaxialventilation230VAC
Add to favorites
Compare this product
Characteristics
- Installation
- duct
- Configuration
- axial
- Function
- ventilation
- Supply voltage
- 230VAC, 400 VAC, 690 V
- Drive mechanism
- electrically-powered
- Other characteristics
- industrial, commercial, explosion-proof
- Air flow
Min.: 4,800 m³/h
(169,510.4 ft³/h)Max.: 99,500 m³/h
(3,513,809.339 ft³/h)- Diameter
Min.: 400 mm
(15.748 in)Max.: 1,000 mm
(39.37 in)- Rotational speed
Min.: 955 rad.min-1
(152 rpm)Max.: 9,331 rad.min-1
(9,331 rpm)- Noise level
Min.: 78 dB
Max.: 96 dB
Description
Axial duct fans, medium pressure. Equipped on both sides with flanges for mounting them in general ventilation – duct systems. Provide high efficiencies at higher pressures than the standard “K” series. Suitable for ventilation of industrial, commercial and large premises.
• Working temperatures: from -20 to +55°C
• Installed motor powers: 0.25 – 45kW
• Capacity range: 300 – 100500 m3/h
• Motor speeds: 3000, 1500, 1000 min-1
• Motors fitted with closed bearings, maintenance-free.
• Motors adapted as standard for speed control by a frequency converter
• Enclosures fitted with a rear guide vane
• Housing protected against corrosion – powder coating
• explosion-proof
• high temperature max: 120°C
Impeller:
• Blades and hub made of die-cast aluminium
• Highly efficient blades with special sickle shape for lower noise levels
• Lower energy consumption while maintaining the highest flow parameters
• Dynamically balanced to class G-6.3 according to ISO 1940-1
Catalogs
MEDIUM PRESSURE DUCT FANS
10 Pages
AXIAL FAN
104 Pages
