Mounted Ball Bearings

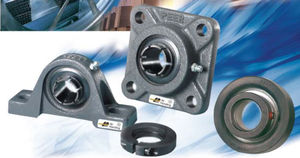

•GRIP TIGHT™ Adapter Ball Bearings Normal and medium duty adapter ball bearing with fully concentric 360° inner ring, patent pending pull/push adapter system, decreased labor during bearing removal.
•SC / SCM / VSC Intermediate, Normal and Medium duty - Series 200 mounted ball bearings.
•E-Z KLEEN Ball Bearings Corrosion resistant polymer and stainless steel housed ball bearing.
•D-LOK Ball Bearing Normal and Medium duty-Series 200 Mounted Ball Bearings with concentric locking collar.
•SXV/SXR Eccentric Collar Intermediate and normal duty series 200 mounted ball bearings with eccentric locking collar.
Pictured Unit:-
Corrosion resistant polymer and stainless steel housed ball bearing.
Features/Benefits
Corrosion resistant thin dense chrome insert, and polymer housing with solid base, no cavities or fillings to trap contaminants and an active anti-microbial agent in the polymer that prevents fungal and bacterial growth.The 300 series stainless steel housing accepts corrision resistant SC or D-Lock insert.
Sizes / Housing Styles Available
Available in a wide variety of housing styles in inch and metric and with SC or D-LOK inserts.
|
|
|
|
|
|
Tapered Roller Bearings:-
Type E-XTRA Available in flange or steel housed pillow blocks for selected sites, Type E-XTRA high capacity tapered roller bearings are stocked in all configurations. With interchangeable mounting dimensions, Type-E allows for easy upgrade from ball bearings at a moderate cost.
Type K Durable twin row tapered roller bearing with spring locking collar and a variety of mounting styles.
Double Interlock Durable twin row tapered roller bearing with double spring lock collars and a variety of mounting styles.
TAF Tapered roller bearing dimensionally interchangeable with SAF style pillow blocks. Installation ready.
E-TECT Seal Kit Add-on combination R seal/V ring sealing system for Type E, Double Interlock, Type K, & TAF bearings. One kit consists of one collar, special set screws & seal.
Type C Rugged tapered roller bearing available in a variety of housing styles.
Special Duty Duplex tapered roller bearing with tapered adapter sleeve mounting. Available in a variety of housing styles.
Hinged Cap Same features as Special Duty plus a hinged cap pillow block for quick replacement of bearing unit.
Traction Wheel Hub Assembly with tapered roller bearings for use with overhead chain conveyors.
All Steel Cast steel housing with duplex tapered roller bearings available in Pillow Block or Cartridge units.
Pictured Item Description:-
Durable twin row tapered roller bearing with spring locking collar and variety of mounting styles.
Features/Benefits
Reduced length through bore allows installation in tight spots. Split cast iron housing with replacement bearing insert units available. Self-aligning.
|
|
NSK Bearing Units consist of a sealed single-row ball bearing with spherical outside diameter and extended inner ring mounted in a pillow block or flanged housing. The spherical fit between the insert and housing enables the unit to accommodate initial misalignment.
NSK can supply a full range of housing configurations made from ductile cast iron, cast steel or stainless steel depending on the requirements of the application. In addition, a variety of shaft locking mechanisms are available including set-screws, eccentric locking collars or adapter sleeves.
NSK Bearing Units feature ‘flingers’ in addition to the bearing seals. The design of the flinger promotes an outward flow of air to keep contaminants away from the bearing. This improves the sealing performance of the standard bearing units.
|
|
|
|
|
|
Self-aligning bearing housings: UNITM, MINITM, EXALIGNTM
UNI, MINI, and EXALIGN self-aligning bearing housings are designed to be used with our range of metal polymer bearings.
DBTM
An alloyed cast bronze with solid lubricant inserts particularly suited for applications with high specific loads, or with long dwell periods, or when it is not practical to use lubricants.
DEVATM: deva.bm®, deva.glide® and deva.metal®
DEVA bearing materials consist of steel or alloy backing with a bronze sliding layer containing a solid lubricant.
This construction provides high mechanical and fatigue strength, high temperature capability and resistance to hostile environments.
DEVA bearing materials are available as bushes, plates, spherical bearings and bearing segments.
MultifilTM
Low-friction, durable bearing lining capable of being bonded to any rigid substrate. Common applications include machine tool ways, gibs, and other sliding applications.
Subassemblies
High-precision, machined aluminum alloy housings with pre-assembled, low-friction bearings. One major application of this technology is the manufacture and assembly of bushing blocks for high-performance hydraulic external gear pumps.
Novel design and engineering solutions to low-friction multi-component assemblies, e.g. housings incorporating moulded-in sealing features and low-friction sliding surfaces.
|
|
Knitted wire mesh bushings and bearings are spacers impregnated with materials such as grafoil or vermiculite that facilitate lubricity and rotation. Manufactured from wire types and fillers matched to specific operating requirements, these compressed mesh elements offer superior functionality in hostile conditions such as temperature extremes or corrosive agents. In addition, the nature of knitted wire mesh allows for assembly tollerance differences and in-use changes.
The world leader in engineered knitted wire mesh solutions, ACS Industries, Inc. has the experience and know how to design a bushing or bearing for any application. The world’s largest vertically integrated knitted wire mesh manufacturer, ACS Industries, Inc. also has the capability and capacity to take projects from design to distribution – in-house every step of the way.
|
|
Bearing units consist of a housing and an insert bearing. NKE bearing units offer simple, effective and reliable technical solutions with the minimum design work requirements.
* Housing: cast iron or pressed steel
* Insert bearings: AY...NPPB, GAY...NPPB, GYE...NPPB, GE...KRRB, RAE...NPPB, GRAE...NPPB
* Application examples: iron and steel, heavy machinery, agricultural machinery, conveyors, etc.
|
|
|
NTN bearings units combine a double-sealed ball bearing with various types of bearing housing. These are optimal units which are self-aligning at the spherical fitting surface of the bearing and housing. In particular, set screw type bearing units use NTN's unique set screw with a ball, and this is extremely effective for stopping loosening of the set screw, even when there is a vibrating or impact load.
|
|
ROLLWAY manufactures a wide variety of roller bearing products ranging in size from 1" inside diameter to 42" outside diameter. We can provide high-volume standard catalog products and low-volume engineered solutions to solve your toughest application problems.
We manufacture a complete line of standard cylindrical radial, cylindrical thrust, tapered thrust, and steel cage journal bearings. In addition, ROLLWAY also manufactures many sizes of both radial and thrust bearings for special applications, in sizes up to and including 42" outside diameter.
ROLLWAY’s advanced engineering, metallurgical, and manufacturing departments are available to assist in solving complex bearing design problems. The personnel in our engineering and sales offices are available for advice and consultation.
|
|
Reference
SFT10/4N/D
SFT12M/4N/D
SFT20/4N/D
CM8DPT/2Y/D
|
|
Four-Bolt and Two-Bolt Flange Units
• with Setscrew Locking Single Locking Designs
• with SKWEZLOC Locking Collar Designs
|
|

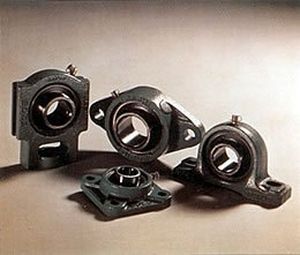

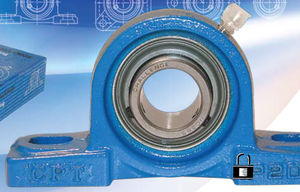

Bearing Units
Convenience and high reliability are achieved by combining ball bearing and bearing housing.
Since ball bearings for units have the same geometry as deep groove ball bearing, load rating, reliability, and other functions are equivalent to deep groove ball bearing.
|
|

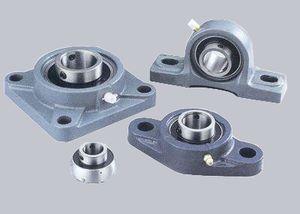

Ball bearing units consists of pre-lubricated sealed ball bearings and a housing which varies in shape. They are capable of aligning themselves efficiently using the spherical fitting surface between the bearing and housing, effectively preventing overloads due to misalignment.
Koyo ball bearing units are highly accurate and feature excellent load resistance. They are completely sealed, and provided with a relubrication feature. Ball bearing units without a relubrication feature are also available.
|
|
CRES stands for Corrosion Resistant Engineered Solutions... a new look at corrosion resistant power transmission components.CRES Mounted Ball Bearing products start with the latest in corrosion resistance technology coupled with advanced industry minded features driven by industry-focused leaders. Finally, our engineers designed CRES around the notion that a "family" of corrosion resistant products spanning the spectrum of performance and value will provide customers flexibility and latitude to specify the correct solution when and where they see fit... without jeopardizing product performance or operating profit.
|
|
|
Ball Bearing Units offer a convenient method of applying highly reliable rolling contact bearings to applications without the necessity of manufacturing a bearing housing.
|
|
The extended, diversified SNR bearing product range meets the most stringent specifications, to satisfy our clients, whatever their expectations or activity sectors.
Various types of cast-iron bearings are available: pillow block, flanged, tensioner, rod end or cartridge bearings.
Various attachment or mounting positions are possible, such as through-holes or tapped holes. They correct misalignment and can be regreased (lubricators or grease nipples can be mounted in the tapped holes provided for this purpose).
SNR also proposes pressed-steel bearings: pillow block, flanged, tensioner, rod end or cartridge bearings, also correcting misalignment, for low or moderate load applications. Pressed-steel bearings are delivered ready for installation.
Insert-bearings are life-lubricated and delivered jointly with the bearing bodies.
|
|

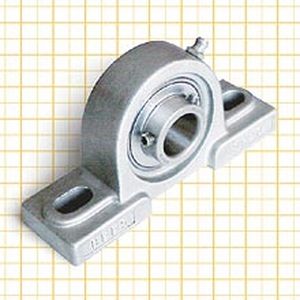

Stainless steel bearing units are used, amongst others, in sectors featuring high-component corrosion resistance requirements.
In these sectors characterised by demanding operating conditions (such as high relative humidity or direct contact with aggressive environments), the conventional grey iron self-aligning bearing units are no longer suitable and will not fully meet the requirements.
To satisfy the specific operating requirements, SNR proposes an extensive standard programme of stainless steel self-aligning bearing units, which also meets the USDA H1 standard criteria dictated by the pharmaceutical and agri-food industries (notably, the high-purity level of lubricant constituents), as all SNR stainless steel self-aligning bearings are exclusively filled with a grease complying with this specification.
Click on the link below for direct access to our on-line catalogue !
|
|
Self-Aligning Tapered Roller Bearing
Offers Important User Benefits
Cost Reduction!
Advantages Not Found in One-Piece Housing
|
|

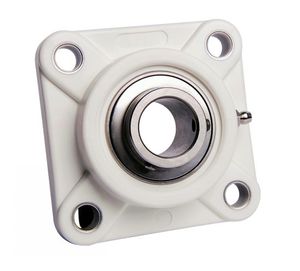

SNR has developed a specific thermoplastic bearing units range offering decisive advantages to the users.
SNR thermoplastic self-aligning bearing units are designed for extreme condition operations, sometimes combining high loads, extreme temperatures, vibrations, corrosion and misalignment. In fact, our bearing units are fitted with seals and deflector baffles, as well as corrosion-resistant, pre-lubricated stainless steel rings and rolling bodies.
All our thermoplastic bearing units are lubricated with USDA H1 standard-approved greases. This standard involves the most stringent requirements in terms of hygiene and purity of the grease constituents or raw materials.
Of white colour PBT design, these bearing units feature a smooth surface preventing dust entrapment or fungus and bacteria development. For lubrication, SNR has designed an odourless, tasteless agri-food-compatible grease, harmless to food products.
|
|
Track rollers for Vee bars/Plain rollers - type FR/LR
The backlash setting and the pre-tensioning of the rollers takes place via the eccentric hub of the rollers of the series FR.., FR..R or LR.., LR..R.
The FR..Z and LR..Z series are the concentric models. In the eccentric rollers, the inner bolts are provided with two holes. These allow for the adjustment of the backlash. If a roller is located in its zero position, the teeth backlash will be the standard value of 0.05 mm flank clearance.
The service life of the system will be reduced by excessive tensioning. With too little tension the rollers will not run, or will wear due to the poor meshing.
|
|
Our Drive Shaft Centre Support Bearing & Assemblies
Application
Donghua Company can offer the Drive shaft centre support bearing & assemblies for both European and American trucks as well as some Japanese car. For more information, please contact with us.
|
|
MISUMI provides more than 1 Million mechanical components for the assembly automation. We delivery components europewide in averagely 6-8 days GUARANTEED delivery from the day of purchase, stock items available from 2 days delivery.
MISUMI 24/7 Web Ordering System (WOS) represents a full-fledged e-Commerce solution, which you can use, for the first time, independently from the catalogue in paper form, to configurate MISUMI products, submit quotations and place orders.
For more information about MISUMI, WOS or for ordering a catalogue please visit: www.misumi-europe.com
MISUMI - Precisely Meeting Your Demands
|
|
Radial insert ball bearings are single row, rady-to-fit units comprising a solid outer ring, an inner ring extended on one or both sides, cages made from plastic or sheet steel and P, R, L or T seals. Bearings with an inner ring extended on both sides undergo less tilting of the inner ring and therefore run more smoothly.
The outer ring has a crowned or cylindrical outside surface. In conjunction with an INA housing matched to the bearing type, bearings with a crowned outside surface compensate for shaft misalignments; see Compensation of misalignments.
They are located on the shaft by means of an eccentric locking collar, grub screws in the inner ring, an adapter sleeve, drive slot or fit. Radial insert ball bearings are particularly easy to fit, suitable for drawn shafts of grade h6 to h9 and, with a few exceptions, can be relubricated.
Some series with an eccentric locking collar and with grub screws in the inner ring are also available with an inch size bore.
|
|

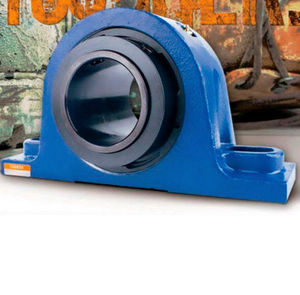

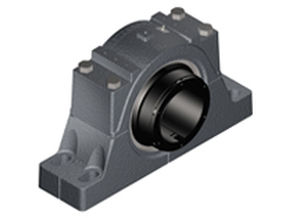

SNC pillow block range: a pillow block unit, a Premier bearing = a perfect combination!
A new generation of pillow block units has been developed by SNR. It is the result of 20 years of application know how for bearing housings.
The additional benefits include:
• Excellent housing stiffness,
• Better heat dissipation due to intelligent housing geometry and use of regulation disc,
• Simplification of the assembly process.
The wide range of bearings and sealing solutions (double lip seal, V-ring seal, taconite seal, labyrinth seal…), with shaft diameters ranging from 20 to 160 mm plus the interchangeability with other market products, SNR offers you a wide choice of application needs.
Combined with our SNR Premier spherical roller bearing range, SNR pillow block units offer a complete range of performance requirements.
Try them!
|
|
FAG housing and bearing units have successfully been used in machinery, installations and equipment.
FAG bearing housings are usually made of greycast iron.
As a rule, the bearing seats in the housings are machined in such a way that the bearings can be
displaced, i.e. they are of the floating type. All outer surfaces of FAG housings and housing parts are provided with a universal coat of paint (colour RAL 7031, bluish grey).
Depending on the operating conditions, the bearing housings can be sealed with rubbing seals, non-rubbing seals, and combinations of both.
|
|
Type : Material : Hardness : Surface Treatment RoHS CAD Data
BGTNB 1045 Carbon Steel - Black Oxide Compliant
BGTN 1045 Carbon Steel - Electroless Nickel Plating Compliant
SBGTN 304 Stainless Steel - - Compliant
|
|
Linear guidance systems with linear recirculating ball bearing units comprise ball bearing units, carriages and guideways. They allow large support distances, have adjustable clearance and are to standard accuracy class G3.
The full complement bearing units run on one or both sides of the guideways and, despite their small dimensions, have high load carrying capacity. If the bearing units are screw mounted in carriages, together with the guideways they form four-row linear recirculating ball bearing and guideway assemblies. The ball bearing units are sealed on all sides by the wipers on the end faces and on the sealing strips which form a gap seal in conjunction with the guideway. Linear recirculating ball bearing units can be relubricated.
|
|

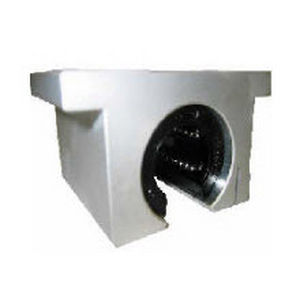

Linear bearings offer an easy and economic solution for unlimited linear motions.
Three different types are available:
• Linear bearings with closed design for applications with short strokes and loads from different directions
• Linear bearings with slot and clearance adjustment
• Linear bearings with open design for applications with high and one-sided loads
Whole linear bearing units, partly with several linear bearings one behind the other and with different designs complete our product range.
There are linear bearings made of plastic with load bearing plates of hardened steel or linear bearings with steel body, in standard material or corrosion resistant, with or without sealing, in sizes 2 – 150 mm.
We certainly find the right linear bearing for your application.
Advantages of our linear bearings:
• Easy replacement
• Economy installing
• Self-adjusting for bended shafts
• Smooth running
• High speed applications with high acceleration
|
|
|
|
|
|
With the igubal® type series, a complete system of self-aligning bearing elements are available for the design engineer: Rod end bearings, clevis joints, flange bearings, spherical bearings and pillow block bearings.
igubal® self-aligning bearings are easy to mount, suit all angular variations and in many cases can be replaced by special housings.
The igubal® user utilizes all advantages of the employed high performance plastics. They have excellent vibration dampening properties, and are technically applicable in dry operation. They are insensitive to dirt, can operate in liquids and even in chemicals and are completely resistant to corrosion.
Bearing elements of the igubal® type series are very light, save installation space by their dimensions and save your costs twice: first in procurement and second in operation by the saving of maintenance and installation costs.
Special properties of the igubal® rod end bearings
- Maintenance-free dry operation
- High stiffening
- Very high fatigue strength in varying loads
- Compensation of misalignments
- Compensation of edge loads
- Insensitive to dirt, dust and lint balls
- Resistant to corrosion and chemicals
- High dampening properties
- Suitable for rotary, oscillating and linear movements
- Very low weight
- Dimensional series K and E, dimensions according to DIN ISO 12240
|
|
|
|
