Lift-table Bellows
The 1.8 x 2.4 metre bellow shown is capable of extending to a height of 2.3 metres and is fitted in BNFL's Sellafield plant.
Where Health and Safety is an issue, Beakbane lift-table bellows provide excellent all-around protection from the hazards of scissor-lift mechanisms. They can be designed to protect 1, 2, 3 or all 4 sides and are available in a range of sizes to suit most lift tables. Other features include:
-UV and ozone resistant materials allow for indoor and outdoor use
-Lightweight and durable
-Tested to two million cycles
-Can be used for new and existing lifts
-Excellent stroke : compression ratio
-Minimum maintenance
-Manufactured in a range of brightly coloured materials for vivid visual warning of hazards
|
|
Folding Bellows
Robust construction, coupled with good looks, ensures these bellows are the first choice for situations where durability and excellent aesthetics are essential.
-Strong, two-part laminated construction
-Extensively used in the medical sector
|
|

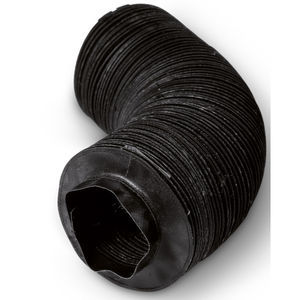

RUBBER BELLOWS FOR LINEAR ACTUATORS.
We have studied a new rubber bellows to protect the linar actuators in tracking solar systems.
Our rubber bellows can reach any lenght with incredible stroke.
They are available in different measures and materials
• Always in stock
• Unlimited life
• Low cost
• They are easy to apply and guarantee a full protection
• At the moment of shipping we punch the hole’s diameter required
• Available in different materials
|
|
Beakbane Sewn Bellows, noted for their durability, are a cost-effective solution for applications where small or medium-batch quantities are required. They are widely used in the protection of the precision shafts and mechanisms of pneumatic cylinders.
Cylinder rods
Screw jacks
Linear-motion rails
Ballscrews
Traditional fabrics have been supplemented with specially developed materials to counter contaminants; from everyday rust, dust and dirt to weld spatter; and temperatures from -60°C to +250°C. Food grade materials are also available.
|
|
Protective cover
Classic product range of Hema for over 30 years
All protective cover types for...
Machine tools, machining centres
Lifting tables, elevating platforms
Linear guides
Wood-, glass, stone-, ceramics machining
Medical applications
Measuring machines and devices
Semi-conductor industry, automation
Handling systems, robotic
a.m.m.
|
|

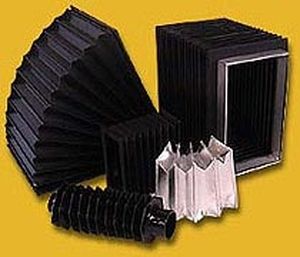

Bellows
Bellows are a simple and cost-effective solution for various applications everywhere safeguarding of moving parts is needed, in limited spaces in particular.
|
|
Types of lamella
We use three basic forms to fasten the lamellas. The different product types and their designations result from these three basic forms of fastening. The product types FASTAF/FASTAC have fixed mounted lamellas. Flexibly mounted lamellas are used in the FASTAM/FASTLAP product types. These flexibly mounted lamellas are offered in two different versions, according to the conditions of use with hinge 2) or clip 3). It is also possible to choose between versions of the hinge type with or without initial tension.
|
|

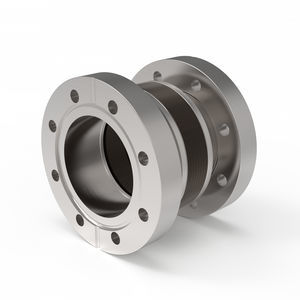

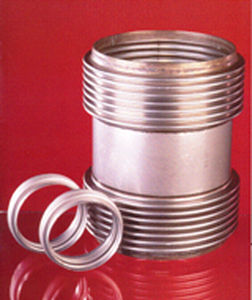

- Edge-Welded Bellows
- Design and Engineering
- Full Assemblies
- Fusion Welding Technologies
- Reverse Engineering capabilities
- Controlled Manufacturing Processes
- Wide Range of Materials – From Stainless Steel 316. to Exotics (Hastelloy, Inconnel,Titanium, etc.)
- Support Required Cycle Lifetime
- Ultra High Vacuum capabilities
- Excellent corrosion resistance
|
|
Thermo-plastic Seals and Miniature Bellows
Minimum resistance to movement combines with maximum protection in this vacuum-formed solution for thermo-plastic seals and miniature bellows applications.
-Manufactured from flexible or semi-rigid thermo plastics
-Flaccid materials provide minimum resistance to movement
-Low tooling costs - even for special designs
-Typically used for precision measuring devices and control switches
(Miniature polyurethane diaphragms are fitted to the probes of high-precision measuring equipment )
|
|

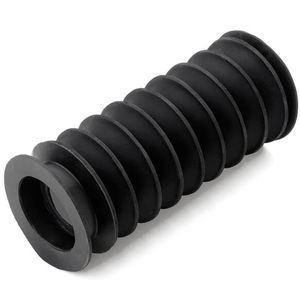

THE SIMPLEST AND CHEAPEST SOLUTION FOR PROTECTIONS ALWAYS IN STOCK
• ALWAYS IN STOCK
• OIL RESISTANT
• RESISTANCE UP TO 300 ° C
• FOOD GRADE SILICONE
• UNLIMITED LIFE
• COLLAR HOLE OF ALL FORMS
Each KIT includes a bellows and two collars to fit at the end, but different accessories permit to obtain any length and fitting to any geometry.
They are easy to apply and guarantee a full protection for any mechanical organ without limiting the movement.
At the moment of shipping we punch the hole’s diameter required.
Then it’s enough to fit the bellow’s body on the two collars and you get a perfect result: A bellows that seems designed for the application.
It’s also possible to link with specific joints all the bellows you want to get any necessary length and race.
|
|
For high temperature and pressure situations. Silicone bellows with reinforcing layers of Polyester or Aramid.
Temperature range from -55°C to +250°C
Designs available up to 100 p.s.i working pressure
Resistant to a wide range of chemical and environmental conditions including ozone and U.V.
Meets EU food and pharmaceutical requirements
High electrical resistance, typically 1014 - 1016 ohm-cm
|
|
When your application calls for a low-volume moulded bellows solution, Beakbane provides a cost-effective range of options. Our bellows require no expensive tooling, making the manufacture of small quantities of bellows a viable proposition. A range of materials are available to suit your application
-Extremely durable including materials developed by our research and development team
-Excellent resistance to abrasion
-Compliant with flameproof tests BS 3120 and BS 6853
-Established track record within the rail, steel and water industries
-Can be supplied split with Velcro or zips for maintenance retrofit
-Available in circular, rectangular or ellipsoidal forms
-Operational temperatures from -20°C to +100°C
|
|

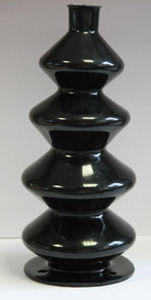

Moulded Silicone Bellows
For high temperature and pressure situations. Silicone bellows with reinforcing layers of Polyester or Aramid.
-Temperature range from -55°C to +250°C
-Designs available up to 100 p.s.i working pressure
-Resistant to a wide range of chemical and environmental conditions including ozone and U.V.
-Meets EU food and pharmaceutical requirements
-High electrical resistance, typically 1014 - 1016 ohm-cm
|
|
-Excellent resistance to chemicals and hazardous contaminants
-Maximum flexibility
-Frequently used on special-purpose machinery and in the medical and nuclear industries
-Can also be supplied in flame-retardant PVC film
-Operational temperatures from -30°C to +60°C
-Suitable for air conditioning and ductwork connectors
-Available in welded construction for increased extension:compression ratio
|
|
Wide production range of protection bellows, round, rectangular and cone with different misures and dimensions.
If you don't find a appropriate model you can use the modular bellows.
Possibility to realize the mould as your drawing.
They can be produced in EPDM, NBR and VMQ.
|
|
Over the years Beakbane Bellows have established an ever increasing number of applications throughout industry. Today, they vary from the simplest of applications to the specialised requirements of high technology.
Bellows fall into two broad classes of use: as seals, or as connectors. When used as primary or additional seals, bellows are required to protect reciprocating mechanisms, keeping them free from contamination by their environment. When used as a connector, its function is to contain substances passing between fixing points it connects. In this mode, the bellow is designed to take up vibration, thermal expansion, and some misalignment in the system.
Beakbane has perfected alternative manufacturing techniques that utilise a wide range of materials to produce bellows that will meet most operational requirements.
Large or small, all our bellows are designed in-house, manufactured to suit their specific application and are Quality Assured to BS EN ISO 9001:2000 certification.
|
|
Protective cover
Classic product range of Hema for over 30 years
All protective cover types for...
Machine tools, machining centres
Lifting tables, elevating platforms
Linear guides
Wood-, glass, stone-, ceramics machining
Medical applications
Measuring machines and devices
Semi-conductor industry, automation
Handling systems, robotic
a.m.m.
|
|
|
|
|
|

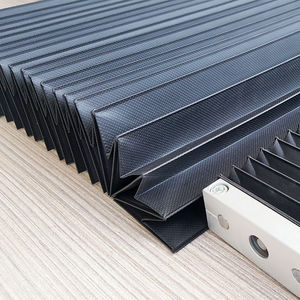

FLAT BELLOWS
•The thermic-welded protection bellows are largely used on every kind of machine tool. They are frequently used in machining
centers and chip-removing machines. In order to protect the bellow exposed to hot shavings, a shielding made by metal
elements, called "plates" will be necessary.
For meeting the needs of fastening the plates, the P.E.I. Group presents an effective solution at competitive prices.
The patented "Spring Fixing" fastening system is composed by springs housed in special clamps keeping the plates adherent
and loaded one on the other to prevent contaminants and shavings from entering and to allow a rotation up to 90° for making
the fastening of the bellow flanges to the machine tools easier.
X - Y LM SHIELD
•The X - Y LM SHIELD (Movable plates) represents the cheapest solution for protecting the working area in horizontal spindle machining centers where there is a large production of hot shavings.
This system consists of No. 2 horizontal bellows and No. 2 vertical bellows, protected by movable stainless steel plates guaranteeing a very functional product for Quality/Price.
• We can guarantee this system for accelerations up to 1.5 G and speeds up 120 m/min. Contact our engineering department if higher performance is required.
RANGE OF PRODUCTION
Thermic Welded Covers
Thermic Welded with Flexible Laminations
Thermic Welded with Fixed Laminations
Thermic Welded Covers for Linear Slides
Bellows for Hoisting Platform
Flat Covers Glued Sewn
|
|
Beakaprene
Extremely durable, versatile bellows incorporating a tough rubberised nylon material developed by our own research and development team.
-Compliant with flameproof tests BS 3120 and BS 6853
-Established track record with the rail, steel and water industries
-Excellent resistance to abrasion
-Can be steel-reinforced for extra resilience
-Available in circular, rectangular and ellipsoidal cross-sectional forms
-Operational temperatures from -20°C to +100°C
|
|
|
|
|
|
Steel Telescopic Covers
Beakbane Steel Telescopic Covers are designed to protect machine tool slideways and are precision-built for optimum efficiency. Over the last three decades, Beakbane has developed and refined its design know-how and understanding of the requirements of machine tool builders to the point where it is an acknowledged international leader in its field.
The protection of machine tool slideways is essential if machine tool accuracy is to be maintained, down time reduced, and associated maintenance costs avoided.
By working closely with machine tool builders and adjusting quickly to the demands of the latest technology, Beakbane Steel Telescopic Covers have become an integral part of many machine tool designs. We cannot stress too strongly the importance of the cover requirements being considered at the design stage if maximum efficiency and cost benefits are to be achieved.
Our computerised design programme provides data for the precision manufacture of Beakbane Covers. This ensures instant recall of all information needed for repeat orders: also, as an indication of the precision in our manufacturing procedures, it enables us to replace a damaged 'box' in a cover when required.
The individual boxes that make up each cover are interlinking, and depending on the box structure, can be sufficiently rigid to support the weight of an operator when the cover is stationary.
Wiper seals are fitted, as required, to the leading edge of all boxes with the exception of the smallest. The wiper is pressure loaded so preventing the ingress of swarf and other unwanted foreign bodies. The wiper itself is made from hardwearing polyurethane or nitrile rubber, protected in its own steel case from hot chips and swarf.
|
|
Bellows made of PTFE are primarily used in medical, food and chemical industry applications because of their exceptional compound characteristics.
Highlights
resistant against virtually all chemicals
high temperature range between –60°C and +200°C
also suitable for food and pharmaceutical products
excellent sterilization capability
anti-adhesive
cost-effective series production, from semi-finished products to finished products
Typical Applications
bellows for use in pipelines
shielding of sterile sections in bottling lines
use in aseptic valves
use in solenoid valves
use in metering devices
|
|
|
|
|
|
SEWN ROUND BELLOWS
These are used when strong rotation resistance is required (for instance, to cover ball screws) and where a
very compact closed pack is required.
• Highly reliable bellows
• No tooling costs
• High resistance to mechanical and dynamic stress
• With selected edging (in safety colors upon request)
• Resistance to coolants and oils
• Minimum internal diameter starting at 20 mm
• Suitable for high temperatures
• Any size external diameter
• Available with guide bushings and reinforcement rings
• Good price/quality ratio
THERMIC WELDED TIGHT BELLOWS
They are used when watertight protection of the components (i.e. screws, shafts, etc.) is necessary against the contamination made by coolants.
• Economic bellows
• Good resistance to chemicals
• Resistance to heat compatible with the used materials (see characteristics on page 46- 47)
• They can be supplied in a variety of geometrical shapes, with low cost production of moulds (if not already present in our stock)
Heat-Formed Bellows
These are used when high mechanical strength and
heat resistance are required.
• Excellent resistance to mechanical stress
• Also available cone-shaped
• Resistance to coolants and oils
• No tooling costs
• Available with guide bushings and reinforcement rings upon request
• Suitable for high temperatures
Open Head-Formed Bellows
Upon request with longitudinal opening seam when the bellow must be disassembled without dismantling the part to be protected
|
|
Beakbane is an internationally respected manufacturer of covers for the protection of machine slideways. Folded, or concertina covers offer complete slideway protection for most applications and are essential for preventing the ingress of abrasive dust, dirt and other contaminants in precision machine parts, thereby minimising the risk of premature wear and loss of vital machine accuracy.
To specify your folded cover fully, we need:
•Position of cover on machine
•Full slideway details
•Type of protection required
•Speed of stroke
•Ambient temperature
•Extended and compressed lengths, or machine stroke requirement
|
|
Bellows
Arnold bellows offer safe protection for both people and machinery. These are the products to soke your problems - in which material, stability and shape can be individually customised.
If the bellows will be subjected to high mechanical stress and strain, the telescopic covers provide safe protection even at high processing speeds. Due to our patented mounting system, the telescopic covers will either be flexibly mounted or connected with the bellows without the use of adhesive materials under consistent counter pressure, if required and can also be coolant-compatible, if this is desired.
|
|
KABELSCHLEPP bellows are used on all kinds of machine to provide protection for guideways and spindles, in those cases where no hot chips are present and accessibility is not a requirement.
Bellows can be individually produced from a range of different materials, depending on your specific requirements.
Properties:
* Simple installation
* High travel speed
* Minimal compression
* High quality
Installation variants:
* Horizontal, lying
* Horizontal, hanging
* Vertical
Delivery options:
* For travel speeds of up to 1.5 m/s
* Customized production
* Available in a wide range of shapes
* Available in many different materials
|
|
Bellows
Arnold bellows offer safe protection for both people and machinery. These are the products to soke your problems - in which material, stability and shape can be individually customised.
If the bellows will be subjected to high mechanical stress and strain, the telescopic covers provide safe protection even at high processing speeds. Due to our patented mounting system, the telescopic covers will either be flexibly mounted or connected with the bellows without the use of adhesive materials under consistent counter pressure, if required and can also be coolant-compatible, if this is desired.
|
|
Bellows
Arnold bellows offer safe protection for both people and machinery. These are the products to soke your problems - in which material, stability and shape can be individually customised.
If the bellows will be subjected to high mechanical stress and strain, the telescopic covers provide safe protection even at high processing speeds. Due to our patented mounting system, the telescopic covers will either be flexibly mounted or connected with the bellows without the use of adhesive materials under consistent counter pressure, if required and can also be coolant-compatible, if this is desired.
|
|
ARNO ARNOLD conceived, designs and manufactures Fix& of finish complete cover systems. Independently of size and excerpt our patented system of the rear sheet metals ensures Outside into for gap-free pressure. We can consider mechanical measured variables (statics and dynamics), as well as environmental influences (e.g. liquids, temperature and chemical reactions).
The products and systems developed by us have themselves already under extreme conditions proven in horizontal/vertical processing centers, sharpening and milling machines... etc.
|
|
Bellows
Arnold bellows offer safe protection for both people and machinery. These are the products to soke your problems - in which material, stability and shape can be individually customised.
If the bellows will be subjected to high mechanical stress and strain, the telescopic covers provide safe protection even at high processing speeds. Due to our patented mounting system, the telescopic covers will either be flexibly mounted or connected with the bellows without the use of adhesive materials under consistent counter pressure, if required and can also be coolant-compatible, if this is desired.
|
|
Several standard types of canvas are available:
- PVC-coated polyester: for protection from water, dust and certain acidic environments
- Polyurethane-coated polyester: this is the most commonly used and offers good resistance to swarf and oil. Suitable for machine tool applications
- Viton-coated glass: excellent resistance to oils, shavings, sparks, temperatue and chemicalattack
- Kevlar® polyurethane
- Aluminised polyester
In all cases, we will be happy to assess your particular requirement with a view to suggesting the sheating that will best meet your application requirements.
|
|
|
|
