Low Voltage PWM Brushless DC Controls
Rated for 50° C ambient.
Drives 130V Bodine BLDC Motors.
Drives 24V Bodine brushless motors.
To be mounted in separate enclosure supplied by user.
Requires an unregulated 24 VDC power supply with a minimum 5000 MFD capacitance.
20kHz PWM switching frequency.
Enclosed Filtered SCR Brushless DC Controls
Rated for 40° C ambient.
Drives 130V Bodine Brushless DC Motors.
Two ways of mounting: face mounting using self-tapping screws on back surface, or flange mounting by installing four brackets (included).
Model 3912 for 2500 rpm motors.
Model 3913 for 10,000 rpm motors.
Filtered Brushless DC Controls
Rated for 50° C ambient.
Intended to be mounted in separate enclosure supplied by user.
Drives 130V Bodine Brushless DC Motors.
Screw terminal block for line and motor connections.
Plug-in connector for commutation connections.
Model 3911 for 2500 rpm motors.
Model 3921 for 10,000 rpm motors.
Unfiltered SCR Brushless DC Controls
Rated for 50° C ambient.
Intended to be mounted in separate enclosure supplied by user.
Drives 130V Bodine Brushless DC Motors.
Screw terminal block for line and motor connections.
.25 inch quick connect tabs for line, motor connections, and user interface connections.
Plug-in connector for commutation connections.
|
|
TMCM-160
Description
1-axis BLDC controller/driver module 5A/40V
The TMCM-160 is a controller / driver module for general brushless DC motor applications. It integrates velocity and torque control as well as a hall sensor based positioning mode. The position resolution depends on the motor, i.e. a standard 8 pole motor gives a motor axis resolution of 15 degrees. The module can be used in stand alone operation or remote controlled via a RS-232 or RS-485 interface (ordering option). Its small form factor (50 x 92 mm²) allows for integration onto a user board as a plug-on module or for panel mounting, by connecting flat ribbon cables to the two 2x13 2.54mm standard header connectors. Multi-axis drives can be easily realized by integrating multiple modules on one baseboard. A standard baseboard (BB-160) is available.
|
|
SPECIFICATIONS:
- PRODUCT NAME / Model: BLDC motor driver¡þMCR-BL2406B (V6.0)
- POWER INPUT: DC24V +_20% or DC12V(Made by Order)
- DRIVING CURRENT: 6A (Max.)
- MOTOR WATTS: 150W
- SPEED CONTROL RANGE: 50:1
- OPERATION FUNCTIONS:
Acceleration/Deceleration time setting separate
Motor Swift CW/ CCW
Internal / External speed control selection
Output disable
Hall IC 3 phases signal output¡· Instant torque PWM output
Alarm hold or not selectable (Note 1)
Overload detection
60¢X / 120¢XHall Sensor position selection¡· Overheat protection
Motor overheat protection (Made by order)
External reset
- SPEED SETTING: Internal/ External VR for speed control (20K Ohmic , 0 5V)
- ACCELERATION / DECELERATION TIME: 0~5 seconds
- INPUT SIGNAL: Run/Stop, rotation direction, torque and instantaneous stops ,reset
- OPERATING TEMP/ HUMIDITY: -40 °C to +85 °C
- DIMENSIONS/ WEIGHT: 60(L)x108(W)x30(H)+1 mm / 180g
|
|
|
|
|
|

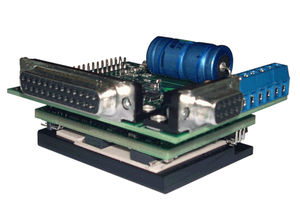

The DECS 50/5 (Digital EC Controller Sensorless) is a new controller for driving brushless DC motors without Hall sensors.
Typical sensorless drives such as pumps and fan applications can now easily be created thanks to modern technology and expert integrated controlling algorithms. maxon's own in-house developed speed controller is particularly impressive through its performance, price and size.
As well as being a top performer, attractively priced and very small, the new amplifier's other key feature is that it can be easily adapted to specific requirements. The free choice of starting sequence is a major benefit, as it allows the attached motor to start up easily, even when the motor data or load ratios are unfavourable. The DECS 50/5 also provides control inputs for selecting motor direction, enable and braking. As usual, the necessary protective functions have all been fully implemented. An operating status display (LED) and speed monitor output complete the convenient control features.
|
|
|
All AMETEK brushless DC motors and blowers require a motor/blower controller to operate. Many of these AMETEK BLDC motors and blowers feature a built in, integrated controller that takes the DC input from a power supply or battery and processes it into phase drive signals that are used to commutate the motor. Motors and blowers that require low voltage DC input (11 to 52 volts) that do not come equipped with an integrated, onboard controller, require one of the external controllers described in this section.
|
|
Northland offers a full line of Brushless DC Motor Controls that can
be mounted to our motors, pumps and blowers, or used externally.
These versatile controls can also be used with BLDC motors from other
manufacturers. Our controls are designed for use with Hall Effect style
motors with spacing of either 60° or 120°. Features / options include:
Voltage Input:
- 85 - 132 VAC
- 198 - 264 VAC
- 10 - 54 VDC
Communications:
- RS232
Speed Adjustment / Control:
- Speed: fixed single, multiple fixed, variable
- Speed control input signal (PWM 2.5 7.5 KHz): 0-5 VDC 0-20ma, 0-10 VDC 4-20ma
|
|
|
|
|
|

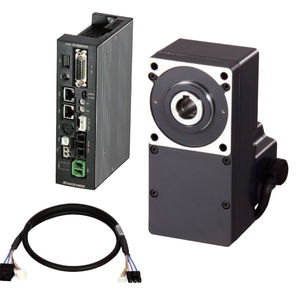

BX Series Brushless DC Speed Control Systems (804)
The BX Series brushless speed control system offers high performance and simple operation from a compact driver and motor. Combined with the optional OPX-1A control module, the BX Series can also provide excellent position control and torque control capabilities.
- AC input
- Frame sizes from 2.36 in to 4.33 in
- Output power from 1/25 HP (30 W) to 1/2 HP (400 W)
- Rated torque from 0.88 lb-in to 610 lb-in
- Variable speed ranges from 0.015 ~ 15 r/min to 3 ~ 3000 r/min
- RoHS compliant models available
BLF Series Brushless DC Speed Control Systems (189)
The BLF Series combines the attractive features of a brushless DC motor, such as compact size, high output, flat torque, excellent speed stability and energy-saving design, with exciting new enhancements that include a wider speed range and multi-speed operation. Using the digital operator, you can draw the maximum performance out of this feature-rich BLF Series with ease.
- AC Input
- Frame sizes from 2.36 in. to 4.09 in.
- Output power from 1/25 HP (30W) to 1/2 HP (400W)
- Rated torque from 0.89 lb-in to 610 lb-in
- Variable speed ranges from 0.4 ~ 20 r/min to 80 ~ 4,000 r/min
- Hollow shaft flat gearhead models available
- RoHS compliant
|
|
TMCM-163-42 V2
Description
1-axis BLDC controller/driver 12A/39V, motor mountable
The TMCM-163-42 is a controller / driver module for general brushless DC motor applications. It integrates velocity and torque control as well as a hall sensor based positioning mode. The position resolution depends on the motor, i.e. a standard 8 pole motor gives a motor axis resolution of 15 degrees. The module can be used in stand alone operation or remote controlled via a RS232 or RS485 interface (ordering option). Its small form factor (42 x 42 x 20 mm³) allows for mounting directly on a motor (NEMA 17 mounting holes - new V2 version only).
|
|
HeiServo EC Compact
Our control "EC-Compact" EC-C)is an electronic 1-Q control for brushless DC motors. This control is extremely small and compact which allows its integration inside the terminal box. It can be used for Heidolph EC motors and servo drives.
|
|
| ... products without technical information |
| |
... see all the products in the category
DC drives
|
|
High-speed accuracy with user friendly set-up and diagnostics. State-of-the-art DSP controlled digital vector commutation optimizes bus voltage for improved speed/torque curves. Flux vector current control improves motor efficiency by providing more torque over the full speed range than is possible with traditional sine drives. Available in 10, 20 or 30 Amp peak ratings (3 sec). Convenient pluggable screw terminal connectors for fast, easy set-up and installation. Set-up software employs a straightforward "control-panel" approach, making it easy to get up and running fast.
|
|
|
|
|
|

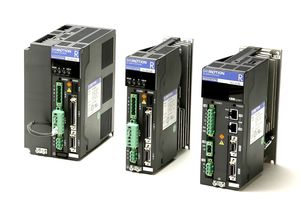

The main characteristics of SANYO DENKI AC servoamplifiers RS1 are the following:
200VAC to 230VAC Power Supply [+10%; –15%], single-phase or three-phase (configurable by the user), with power sections kept separated for logic/signal and power electronics.
Closed-loop integrated system with Position, Speed and Torque control mode.
Switching Control Mode: it allows a mixed use of digital and analog signals with possibility of “on fly” change: position + speed; position + torque; speed + torque.
Control: with pulse train (clock + direction; forward + backward pulse; 90° phase shift) or with analog signal (proportional to Speed or Torque).
Optically coupled digital control I/O.3 inputs and 2 outputs with user-defined functions.
Integrated management of overtravel signals.
External regenerative resistor provided with sensing for maximum temperature alarm (optional).
Integrated dynamic braking automatic circuit in case of alarm or power off.
Setting time is reduced compared with previous Q Series.
Built-in protection circuits against any overload, input overvoltage and any motor connection error (wrong encoder wiring, phase-phase and phase-ground short-circuit).
|
|
BRUSHLESS SERVODRIVES
MINI MAGNUM 400® (New)
Bushless small package digital servodrive, 380-480 Vac power supply. Driving motor ranges up to 7.5 Nm. Motion controller with CAN BUS fieldbus interface.
MAGNUM 400 ® (New)
Bushless small package digital servodrive, 380-480 Vac power supply. Driving motor ranges up to 32 Nm. Motion controller with CAN BUS fieldbus interface.
MICRO B NET DIGITAL ® (New)
Brushless super-compact digital servodrive, 100-230 Vac power supply. Driving motor ranges up to 7.5 Nm.
MICRO B NET ®
Brushless super-compact, cost effective, analog servodrive. 110-230 Vac power supply. Driving motor ranges up to 7.5 Nm.
MICRO B PLUS ®
Brushless panel mount analog servodrive, 140÷200 VDC power supply . Driving motor range up to 8 Nm.
MICRO B ®
Brushless panel mount analog servoDrive, 60 VDC powersupply. Driving motor range up to 1.5 Nm.
B17 BOX ®
Brushless Standalone digital Servodrive
B17 ®
Brushless Eurocard Servodrive
|
|
No cogging or preferred rotor position
No iron losses
Extremely low current consumption
Low audible and electrical noise
Extremely light and compact
Smooth and accurate speed, position, and torque control
Low vibration
Speeds up to 100,000 rpm
Electronic commutation for extremely long operational lifetime
High precision gearboxes available in all sizes
Feedback components available in all sizes
Control electronics available for all motor series
Custom systems available from design to production
|
|
The new series of servo motors SM2A with integrated motor can be easily programmed through EVER's windows PC based user friendly development environment called ATOMIC.
The SM2A series are constructed with a high protection degree of IP65 and are equipped with reliable connectors. Other features are: AC power supply, fieldbus CANbus or serial RS232/485, optoisolated inputs and outputs, an encoder for the closed loop control of torque, velocity and position (optional), The motor section is made of magnetic Low Loss material and has a holding torque from 3,4 to 12,5 Nm.
|
|
# Peripheral operation, minimized installation needs
# Versions for operation at 24VDC and 48VDC
# Compact and powerful design
# Versions with CANopen interface acc. to CiA DSP 402 V2.0
# Versions with incremental output 1024/rev. RS422 A-,B-,Z-signal
# Dynamic speed control and positioning
# To combine with planetary gear GPK45/55 (1-, 2-stages; up to i=49:1)
# Parking brake available
# High protection class IP54 (IP65 as an option)
# Maintenance free and robust
# Customer specific design
|
|
|
|
|
|
Integral, high torque density servo drive with Canopen interface and absolute multiturn positioning.
Universal 350 and 550 Vdc bus supply
2.5-9 Nm torque, 5000 rpm max
Multi axes machines
Direct drive without gearbox
Intrinsic multiple electric gear
Built in single turn and multi turn 4096 turn + 16 bit absolute encoder, 1 arcmin accuracy
No zeroing cycles
CanOpen DS301, DSP402v2.0 compatible
Double insulation
Built in RFI filter, Class B
IP 68 protection
The new TorqueWire series of integral servo systems creates a different approach to complex automatic machinery architecture. Torquewire motors are complete, self sufficient servo axis building blocks which allow the design, integration and operation of large multi axis systems with minimum hardware and surprising ease.
The TorqueWire motor systems consist of an advanced, high performance rare earth brushless servo motor, a DSP based, high voltage interpolating servo drive and a single or multi turn absolute encoder, all assembled in a very compact IP 68 protected frame.
|
|
PANdrive PD-163-42
Description
42mm BLDC motor with integrated controller/driver
The PD-163-42 is a full mechatronic solution including a 42mm brushless DC motor (NEMA17). It combines a convenient BLDC controller/driver electronic (TMCM-163-42) with a range of different motor types with internal HALL sensors. The PD-163-42 offers two motor torque options and can be controlled via RS232 or RS485 interface. The power supply is connected via flat connectors and the interface and the multi-purpose I/Os can be connected via high density JST connectors. It integrates a position regulator and a ramp generator. The integrated ramp generator provides for parameterized smooth positioning and supports an external switch as an absolute position reference.
|
|
FHA-C mini Series Servo Actuators, combining precision Harmonic Drive gearing with AC servo motors, offer unique features unsurpassed by conventionally geared drives. Used in highly demanding industrial servo systems they provide precision motion control and high torque capacity in a very compact package.
Sine-commutated AC servo motors provide smooth torque without the brush wear or commutation limit associates with DC servo actuators. Encoder, mounted directly onto the motor shaft, provide position feedback information. The backlash-free Harmonic Drive gear is provided with grease lubrication specially developed to ensure minimum maintenance requirements and long service life.
The fully digital SC-610 Series Controllers are available for the control of these Servo Actuators. A menu driven setup software running under MS-Windows allows a comfortable parameter optimisation and system diagnosis.
|
|
Mounting size: 60mm, 80mm and 90mm
Output power: 20, 40 and 90W
Speed range: 100 - 2000r/min
Max. permissible torque: up to 68Nm
Gearheads: 8 different gear ratios of 1:5 - 1:200
Power supply: 200-230V AC
Marking: CE, UL and cUL
Constant torque over the whole speed range.
Available types: Round shaft type, parallel shaft gear type, flat gear type.
|
|
FAST-BACK 75 ® (& size 100) (New)
Brushless drive+motor, all-in-one fully digital. Torque range from 1.1 to 7.5 Nm. 220 VAC power supply. Motion controller with CAN BUS fieldbus interface.
Integrated motor in a fashionable design. The decentralized structure gives you much more freedom in designing your machine’s installation layout. Commissioning and service are much simpler. Many advantages such as cables and control cabinet space reduction. EMC line filter suppression and dumping circuit are integrated.
|
|
The TORQUECHAMPION® direct drive system is the new highly dynamic drive system from LTi DRiVES for precise, fast and maintenance-free positioning.
* Its short length and lack of gearing means it takes up a minimal amount of space.
* The peak torque of the MIC motor is available up to the maximum speed, making positioning faster.
* The hollow shaft permits simple feed-through of cables, hoses or laser beams through the motor.
* The integrated measurement system with 8,388,608 increments per revolution and single-turn absolute information means no reference running is required.
* The MTC motor is an external-rotor motor. It can be coupled with a high degree of torsional rigidity without gearing directly to the mechanism. This means it has no gear play and suffers no wear, needs to maintenance and offers very high drive dynamics.
|
|
Concept and characteristics:
• The brushless 24V DC motor 1 and the life lubricated planetary gears and bearings 2 are integrated inside the roller tube 3.
• A circuit board drives the motor offering different control options (see “circuit board” section)
• Suitable for a host of environments: industrial, humid, dusty, wet, oily and clean rooms (IP54, 55 & 65)
• Continuous or intermittent duty cycles (1800 start-stop/hour)
• Speed range from 4 to 65 m/min
• Speed variation: see “circuit board” section
• Available with dynamic break and mechanical brake
|
|
A drum motor is a motorized pulley where the body rotates around a stationary shaft. The rotating outer drum becomes the drive pulley which powers the conveyor belt.
In simple terms it is a highly efficient geared motor, totaly enclosed within a steel shell. Unlike conventional drive systems, the BDL drum motor has no chains or V-belts to tighten or replace, no sprockets to align, clean or lubricate, no bearings to grease, and does not require chain guards. lt is a simple - yet small and powerful - integral motorized pulley that is guaranteed to power your belt conveyor for years without breakdown. All gearing is made of high alloy steel, not plastic. The BDL drum motor is lubricated for life and needs no oil change. The result, almost no maintenance or downtime, which means lower costs and higher productivity.
|
|
driving roller 24v; brushless, diameter 50mm with throats allowing the resumption of transmission upstream and downstream. mini length. 400mm; electronic chart of order and protection with variation speed.
roller + chart: price starting from 385
Possibility of using the rollers engine in curve (with conical sleeves PVC on the tube steel)
|
|
The new generation of linear motors – one-of-a-kind worldwide – combines extremely high continuous and maximum force with compact construction and the lowest possible force ripple in a single series.
Image Desc
click to enlarge
Image Desc MLP/MLS Series – Synchronous Linear Motors
Highly-dynamic and precise
IndraDyn L is based on the continued development of Rexroth's industry-proven linear motor technology. Select from real-world sizes and lengths:
* Primary units with standard stainless steel housing and integrated liquid cooling
* Optional thermal-encapsulation for the most stringent temperature stability requirements
* Secondary units in 3 lengths, with stainless steel cover plate
|
|
The new generation of linear motors – one-of-a-kind worldwide – combines extremely high continuous and maximum force with compact construction and the lowest possible force ripple in a single series.
MLP/MLS Series – Synchronous Linear Motors
Highly-dynamic and precise
IndraDyn L is based on the continued development of Rexroth's industry-proven linear motor technology. Select from real-world sizes and lengths:
* Primary units with standard stainless steel housing and integrated liquid cooling
* Optional thermal-encapsulation for the most stringent temperature stability requirements
* Secondary units in 3 lengths, with stainless steel cover plate
|
|
FHA-C mini Series Servo Actuators, combining precision Harmonic Drive gearing with AC servo motors, offer unique features unsurpassed by conventionally geared drives. Used in highly demanding industrial servo systems they provide precision motion control and high torque capacity in a very compact package.
Sine-commutated AC servo motors provide smooth torque without the brush wear or commutation limit associates with DC servo actuators. Encoder, mounted directly onto the motor shaft, provide position feedback information. The backlash-free Harmonic Drive gear is provided with grease lubrication specially developed to ensure minimum maintenance requirements and long service life.
The fully digital SC-610 Series Controllers are available for the control of these Servo Actuators. A menu driven setup software running under MS-Windows allows a comfortable parameter optimisation and system diagnosis.
|
|
Article: Phasecurrent: Voltage: for Step-Motor-Series
ECMD241 0,5 A - 1,25 A 24 V - 40 V HECM21, HECM22, ECM23
ECMD241 1,0 A - 2,5 A 24 V - 40 V HECM21/22, HECM24, SECM24
ECMD243 0,5 A - 3,5 A 24 V - 42 V HECM26, SECM26, HECM24
ECMD275 1,25 A - 5 A 24 V - 80 V HECM26, SECM26, SECM29
ECMD285 1,25 A - 5 A 24 V - 80 V HECM26, SECM26, SECM29
ECMD2810 2,5 A - 10 A 24 V - 80 V HECM26, SECM26, SECM29
ECMD2135 1,25 A - 5 A 70 V - 130 V HECM26, SECM26, SECM29
ECMD21310 2,5 A - 10 A 70 V - 130 V HECM26, SECM26, SECM29
|
|
the 2-Phase-Step Motors SECM24..., SECM26... and ECM26... Series and the 5-Phase-Step Motors SECM56... and SECM59... Series are available with Encoder. The Specification of the Encoder is as follows:
2-Phase-Step-Motor:
Output-Signal: TTL or Line-Drive, 200 Counts/Revolution
5-Phase-Step-Motor:
Output-Signal: TTL or Line-Drive, 500 Counts/Revolution
|
|
|
|
