RIPPED Ironcore Linear Motor for high force applications
Patent Pending ultrasmooth anticog technology
Three series of motors (R7, R10, R16) with 3 different coil lengths
Peak forces to 9342N (2100lb), Continuous forces to 2348N (528lb)
Connector modules allow quick and easy installation
Internal thermal cutout switch protects coil
Digital HED''s, Home & +/-Limit Sensors incorporated into Connector Module
Modular magnet tracks with flush mounted magnet separators
Built in cable strain relief
Two lengths of modular magnet tracks allow unlimited length of travel
|
|
The new generation of linear motors – one-of-a-kind worldwide – combines extremely high continuous and maximum force with compact construction and the lowest possible force ripple in a single series.
Image Desc
click to enlarge
Image Desc MLP/MLS Series – Synchronous Linear Motors
Highly-dynamic and precise
IndraDyn L is based on the continued development of Rexroth's industry-proven linear motor technology. Select from real-world sizes and lengths:
* Primary units with standard stainless steel housing and integrated liquid cooling
* Optional thermal-encapsulation for the most stringent temperature stability requirements
* Secondary units in 3 lengths, with stainless steel cover plate
|
|
|
Aerotech's "U-channel" brushless linear servomotors have proven ideal for robots, actuators, tables/stages, fiberoptics/photonics alignment and positioning, assembly, machine tools, semiconductor equipment, electronic manufacturing, vision systems, and in many other industrial automation applications. Aerotech linear motors are direct drive and consist of a noncontacting forcer coil and "U-channel" rare-earth magnet track. This design eliminates backlash, windup, wear, and maintenance issues associated with ball screw, belt, and rack and pinion based motion control and positioning systems. The noncontact design of the forcer and magnet track results in a maintenance-free system.
|
|
|
|
|
|
The 3 phase brushless (or AC servo) linear motor is ideal for high force, long stroke, closed loop servo, and linear motion applications. They can be used at speeds up to 240 in / sec [6 m / sec]. They are capable of very precise position, velocity and acceleration control when coupled with a linear encoder.
The 3-phase coil assembly can be commutated trapezoidally using optional Hall Effects or sinusoidally using software commutation in conjunction with the appropriate motion controller and sinusoidal amplifier.
The short laminated moving coil assembly moves over the top of a magnet assembly. A customer supplied bearing system is required to guide the moving coil assembly and to maintain a .030" [0.75 mm] clearance between the coil and the magnet assembly.
There is a large magnetic attractive force between the coil and magnet assembly. The bearing system must be able to withstand this force in addition to whatever payload is being carried.
The power to the motor (from a customer supplied PWM 3 phase brushless servo amplifier) is supplied to the moving coil via a power cable.
The motors are available in 6 different widths and 4 different coil assembly lengths.
Advantages:
* Very low cogging
* High speed and accelerations of heavy payloads
* Capable of high forces
* Uses standard 3 phase brushless amplifier
|
|
Linear synchronous motor series LSM
The linear synchronous motors Ruchservomotor JV are guarantee:
high force density in compact dimensions(peak linear force up to 7600N),
high velocity(up to 5m/s)
and accelerations (up to 14G *).
Linear Synchronous Symmetry Motors LSSM
The linear synchronous motors Ruchservomotor JV because of special design features are guarantee high force dencity in compact dimensions(peak linear force up to 7600N), high velocity(up to 5m/s) and accelerations(up to 14G at user payload=0kg).
Multiples forcers can be operated independently on one magnet way. The motors can be join in serially or in parallel for obtaining higher linear force.
|
|
SL2 series
The SL2 synchronous linear motor with convection cooling is practically maintenance-free and offers maximum reliability and availability, high control quality, speed and accuracy.
SL2 synchronous linear motors are available in three models for speed classes 1, 3 and 6 m/s: SL2 Basic, SL2 Advance System and SL2 Power System. For longer travel distances, secondaries are available in different lengths and can be easily lined up with one another. The SL2 Advance System features a motor cooling unit, which provides even better cooling than SL2 Basic. A forced-air cooling fan gives the SL2 Power System a further power boost.
Your advantages
- SL2 motors save time during project planning
- Precise, reliable and safe at any speed
- Virtually maintenance-free
|
|
Features specific for this product line
> direct electric drive
> high speed
> without reduction gear, no play at direction reversal
> no rotor losses
> with NdFeB magnets
Features of Oswald motors
>compact, robust, high force density
>maintenance-free or low maintenance
>low inertia, dynamical
>long life
>Made in Germany
Technical spezification
force at continuous duty 100 - 10.000 N
speed up to 10 m/s
stroke modular, arbitrary
cooling air or fluid
protection class IP54 (primary, secondary windings)
|
|
|
|
|
|
Baumüller linear motors have been designed for use as direct drives with synchronous motors. Customized motor concepts can be created using a modular system, meaning that Baumüller linear motors can achieve maximum thrust forces of up to 14,750 N.
Baumüller linear motors are synchronous motors. They consist of a primary with a wound lamination stack and a secondary with permanent magnets (magnetic strip). The primary is laminated with carbon fiber. This allows Baumüller linear motors to achieve consistently high stiffness and maximum continuous force, thanks to their improved capacity for heat dissipation.
LSA - The plug & play solution
LSE 10 - The customized solution
LSC - The ironless solution
LSE 50-90 - The solution for logistics applications

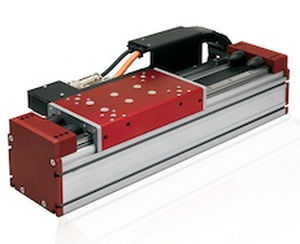

The scope of products and services provided is not merely limited to linear motor components. On the contrary, Baumüller offers the user a plug & play solution with clearly defined interfaces that can be immediately connected to his machine, in the form of a very compact and flexibly designed complete linear axis, LSA, which is essentially comprised of linear components, a guidance system, a mechanical structure, and a length measuring system.
|
|
|
|
|
|
Linear Brushless Motors Series DM
Key Features:
· Symmetric forcer
· Dual magnet track linear motor
· Steel core for high force density
· Lo-Cog for smooth motion
· Built-in thermal sensors
· Hall-effect sensors
· Water cooling option
· Modular magnet track for unlimited travel
· Magnets covered by stainless steel strip
Iron core linear motor DM Series is designed to provide the highest force density in the linear motor applications. Unlike conventional iron core motors, DM motors have dual magnet track to balance magnetic attraction forces and to remove any forcer magnetic preload from the bearings. This feature provides for quite operation with smaller linear bearings without concern for bearing life. Linear motor magnetic structure of the forcer also optimized to provide low cogging. Forcer have thermal sensors in a compact structure as well as Hall-effect sensors and can be provided with water cooling option. These motors are ideal in applications to move large payloads without effecting bearing life. Magnet tracks are stackable for any travel length.
|
|
The new generation of linear motors – one-of-a-kind worldwide – combines extremely high continuous and maximum force with compact construction and the lowest possible force ripple in a single series.
MLP/MLS Series – Synchronous Linear Motors
Highly-dynamic and precise
IndraDyn L is based on the continued development of Rexroth's industry-proven linear motor technology. Select from real-world sizes and lengths:
* Primary units with standard stainless steel housing and integrated liquid cooling
* Optional thermal-encapsulation for the most stringent temperature stability requirements
* Secondary units in 3 lengths, with stainless steel cover plate
|
|
