Carbon products: We manufacturer all the grades of 'standard' multiaxial carbon fabrics, plus many unique products that are only possible with our fibre-spreading technology. We work with all the premium fibre producers, and most of our products are made from HS T700 or equivalent.
All fabrics available cut into tapes
These are only our standard products. We also manufacture a very large range of bespoke fabrics to exactly meet our customers' needs.
ST = Stabilised (lightweight yarn layer in 0 &90)
HD = High Drape
UB = Unbalanced
TE = Tapered Edge
|
|
|
Hexcel manufactures a complete line of HexForce® woven and non-crimp fabrics from carbon fiber. The range includes traditional fabrics (3K, 6K, 12K, 24K), flat-tow 12K and heatset-unit fabrics, plus non-crimp, multiaxial reinforcements. Hexcel's carbon fabrics meet the specification requriements of BMS 9-8 as well as other major aerospace manufacturers' specifications for carbon fabric. These fabrics use fibers that are produced under stringently controlled conditions, extensive testing and documentation.
|
|
|
We offer a broad portfolio of high-performance textile products made from carbon-, glass- and aramid fibers. As a leading manufacturer of carbon products we can draw on several decades of experience. The majority of our reinforcement materials are processed into components made from composite materials. Common processing methods include wet lamination, molding, RTM, and the production of prepreg materials.
|
|
|
Texindustria® offers an extremely wide range of dry fabrics and tapes in carbon, aramid, HT polyethylene, E - S and R glass fibres, and unidirectional and multi-axial materials, as well as hybrid fabric such as carbon/glass, carbon/aramid, aramid/glass, polyethylene/glass.
|
|
|
Texindustria® offers an extremely wide range of dry fabrics and tapes in carbon, aramid, HT polyethylene, E - S and R glass fibres, and unidirectional and multi-axial materials, as well as hybrid fabric such as carbon/glass, carbon/aramid, aramid/glass, polyethylene/glass.
|
|
Carbon products: We manufacturer all the grades of 'standard' multiaxial carbon fabrics, plus many unique products that are only possible with our fibre-spreading technology. We work with all the premium fibre producers, and most of our products are made from HS T700 or equivalent.
All fabrics available cut into tapes
These are only our standard products. We also manufacture a very large range of bespoke fabrics to exactly meet our customers' needs.
ST = Stabilised (lightweight yarn layer in 0 &90)
HD = High Drape
UB = Unbalanced
TE = Tapered Edge
|
|
|
Texindustria® offers an extremely wide range of dry fabrics and tapes in carbon, aramid, HT polyethylene, E - S and R glass fibres, and unidirectional and multi-axial materials, as well as hybrid fabric such as carbon/glass, carbon/aramid, aramid/glass, polyethylene/glass.
|
|
|
|
|
|
MAPEWRAP C BI-AX : Balanced high strength bidirectional carbon fibre fabric. Mapewrap C BI-AX is a bidirectional carbon fibre fabric characterised by a high modulus of elasticity and very high tensile strength. Mapewrap C BI-AX is suitable for repairing concrete structures and to improve flexural and shear strength of reinforced concrete structures damaged by physical-mechanical action, for confinement of axial loaded or concrete elements subjected to compressive and bending stress and for seismic strengthening in earthquake areas.

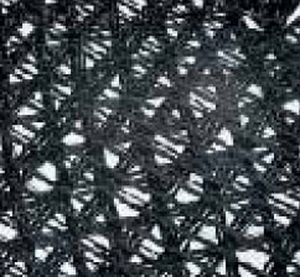

MAPEWRAP C UNI-AX : High strength unidirectional continuous carbon fibre fabric. Mapewrap C UNI-AX is a uni-directional continuous carbon fibre fabric characterised by a high modulus of elasticity and very high tensile strength. Mapewrap C UNI-AX is suitable for repairing reinforced concrete structures damaged by physical-mechanical action, for confinement of axial loaded or concrete elements subjected to compressive and bending stress and for seismic strengthening in earthquake areas.
|
|
The carbon fibres are composed of a minimum of 95% of graphite structure. The carbon fibre is generally produced from a polymer called polyacrylonitrile (PAN), which is spun first, and then in successive controlled stages is carboninized at about 1800°C.
The result of this process is a very light fibre (density 1,78 g/cm3), very resistant (Tenacity 4800Mpa, modulus of elasticity 240 GPa) and flexible, therefore it is quite easy to process.
Characteristics of carbon fibre
- Elevated resistance to traction
- Elevated modulus of elasticity (traction and compression)
- Extremely light weight
- Low elongation at break
- Very high flexibility
- Easy to impregnate
- Highly fragile
- High cost
- Low resistance to impact
- Electrical conductivity
|
|
Hybrid fabrics allow to optimize the different chemical - physical properties of the fibres to obtain synergy between them, together with a good compromise on costs.
It is therefore possible to combine in the same fabric the rigidity of carbon fibres with the impact resistance of para-aramidic fibres, or the better adhesion of the resins to glass fibres with the mechanical and anti-ballistic properties of para-aramidic fibres.
|
|
SGL Group operates the most up-to-date facilities for the production of pre-impregnated materials. Our unidirectional SIGRAFIL® prepregs are based on carbon fibers, and our SIGRATEX® fabric prepregs are made from carbon fiber fabrics.
By acquiring epo gmbh and the prepregs brand PREDO®, we have expanded our product portfolio as well as our core competency in the field of pre-impregnated materials.
* SIGRATEX® fabric prepregs
* SIGRAFIL® unidirectional prepregs
* PREDO® prepregs (For further information on the product, please refer to related subjects)
The fiber type is the main factor determining the strength, Young's modulus and other important properties of fiber composite products. The reinforcement fibers are precisely aligned and economically combined with the resin matrix.
|
|
| ... products without technical information |
| |
|
|
|
|
WT93 SPRINT®
- Award winning SPRINT® matrix
- Long outlife at room temperature
- Zero volatile/solvent content
- Improved health and safety: Diuron-Free
- Available with a range of reinforcements
- Suitable for a range of pressures
- Controllable in thick sections
- Low exothermic properties
- Recommended cure between 85ºC and 120ºC
- Excellent laminate quality, low bleed
WT93 is part of the WE and WT range of prepreg, SPRINT®, and AIRSTREAM™ products. This unique product range provides technically and commercially competitive engineering materials, ideal for use either solely, or in conjunction with other products from within the product range along with other Gurit products.
WT93 is a hot melt, Diuron free epoxy SPRINT® ideally suited to the manufacture of thick sections. It can be cured at temperatures as low as 85°C, but can also be used for the rapid manufacture of components through its 45-minute cure at 120°C. All of this can be achieved together with an out-life of 75 days at 21°C.
WT93 is designed for vacuum bag processing and offers excellent mechanical performance on glass fibre reinforcements. Currently WT93 is manufactured into a SPRINT® structure with E-glass fibres, which are manufactured into biax or triax materials, these are produced in large volumes in order to make it a cost-effective composite building block for a range of applications.
|
|
|
|
|
|
PHG840(M850-37) - Prepreg materials for railway parts
Components for rail interiors include items like ceilings, floorings, bulkheads, vestibules, fire barriers, interior wall panels, window surrounds, doors, staircases, and luggage bins or racks.
Phenolics are progressively finding their way into railway interior applications to meet increasing and ever more stringent fire, smoke, and toxic fume requirements that most nations apply to passenger railway vehicles operating within their borders.
For further weight reduction, traditional monolithic laminates are replaced more and more with lightweight sandwich constructions with prepreg and honeycomb or foam core.
-Gurit PHG840 rail interior prepregs are a perfect choice to meet today’s railway cost and performance targets:
- Fulfilment of Italian, Spanish, British, French and German rail fire regulation.
- Flexible, autoclave-free processing.
- Fast curing-cycle.
- Very good surface finish.
- White colour after cure for superior cosmetics.
|
|
|
L-901 is a 250°F (121°C) curing, high peel strength, flame retardant, epoxy prepreg available on a broad range of graphite fabrics or hybrid fabrics. L-901 is intended to be used as a single ply or multiple ply skin for aramid/phenolic honeycomb, fiberglass honeycomb or PVC foam core sandwich panels.
|
|
SGL Group operates the most up-to-date facilities for the production of pre-impregnated materials. Our unidirectional SIGRAFIL® prepregs are based on carbon fibers, and our SIGRATEX® fabric prepregs are made from carbon fiber fabrics.
By acquiring epo gmbh and the prepregs brand PREDO®, we have expanded our product portfolio as well as our core competency in the field of pre-impregnated materials.
* SIGRATEX® fabric prepregs
* SIGRAFIL® unidirectional prepregs
* PREDO® prepregs (For further information on the product, please refer to related subjects)
The fiber type is the main factor determining the strength, Young's modulus and other important properties of fiber composite products. The reinforcement fibers are precisely aligned and economically combined with the resin matrix.
|
|
Nelcote Advanced Composite Prepregs
> Global manufacturing and supply chain management experience - Park's 50+ years in Advanced Materials
> Structural design databases, including FAA accepted AGATE design allowables for key composite materials
> Nelcote composite materials are available in a variety of reinforcements and product forms including broadgoods, unidirectional tapes, biased tapes and molding compounds
> A broad range of resin chemistries are available including epoxy, polyester and phenolic resins
> Customer focused company with a history of proven successes with large and small customers
> Quality Management System Based on ISO 9002 and AS 9000 standards and procedures
> Extensive technical, research and development resources
|
|
|
L-925 is a 275°F (135°C) curing phenolic prepreg with excellent fire smoke and toxicity properties. L-925 is available on 3K70P style graphite fabric or other styles of fabric as requested. L-925 is intended to be used as a single ply or multiple ply skin for aramid/phenolic honeycomb or aluminum honeycomb sandwich panels.
|
|
Phenolic / Carbon Ablative Prepreg
Carbon-loaded resin system. Combines high-strength and ablative properties
for demanding applications. Low thermal expansion. Also available in a low
density version
Applications: Ablative rocket nozzles, Combustion chambers, Heat shields, Rocket
motor throat sections
|
|
| ... products without technical information |
| |
|
Carbon-plated conductive fabric can solve some appearance problems such as stains, spots, etc. It also makes the products more resistant to oxidation. Accordingly, the long-term service life of the products is guaranteed.
|
|
|
|
