Reinforced technical fabric G-WEAVE 815P S

fiberglasscarbon fiberaramid fiber

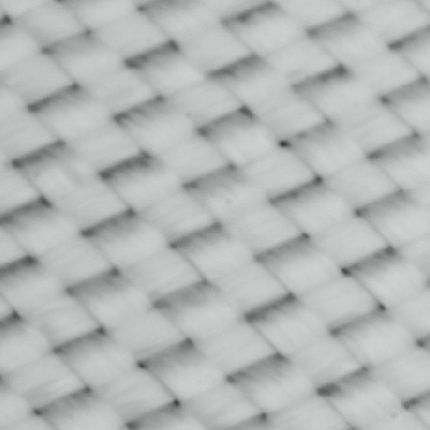

G-Weave 815P S is a plain-weave bidirectional 816 gsm fabric made of high-performance S2 fiberglass. It is primarily intended for use in ballistic protection (armored vehicles). BENEFITS Different fibers can be used: glass, aramid, carbon or hybrid. Possibility to produce from 10 to 325 cm width. Construction Total weight: 816 gsm Fibres orientation: 0°/90° (BT) Warp : 2 ends/cm - 2033 tex Weft : 2 ends/cm - 2033 tex Pattern: Plain Transformation Process Prepreg Conditioning Width(s): 127 cm - 150 cm Roll Length: 300 ml
