Biaxial technical fabric G-PLY™ FX BX800S C3

stitchedglassindustrial

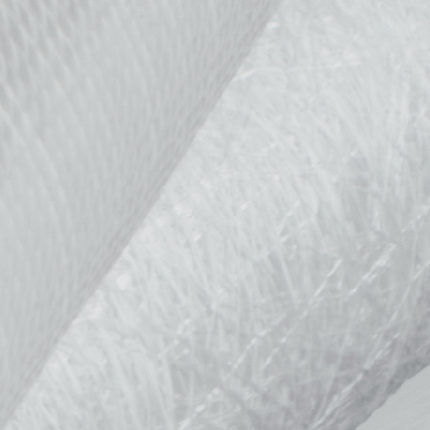

G-PLY™ FX BX800S C3 is a biaxial +45°/-45° 812 gsm stitched glass NCF. The addition of threads at 0° increases the stablility of this reinforcement. An adhesive coating of 10 g / m² gives it a self-adhesive function. FX benefits are numerous: FX is a facilitator of reinforcement positioning and ease lay-up of vertical sections. Consistent quality: FX offers weight regularity, the risk of delamination is controlled. mechanical performance (Interlaminar Shear Strength) is optimal. Lay-up quality is improved. Environmental friendly: FX emits no Volatile Organic Compound (VOC) so it contributes to better working conditions in user facilities. Time and cost saving: FX facilitates the lay-up of parts, saving time and reducing the manufacturing costs. This multiaxial fabric is intended in particular for the Marine industry, primarily for infusion processes but also for HLU processes. BENEFITS Compared to a woven roving, the specific structure of G-PLY™ with its successive stacking of layers of yarn, without interlacing, provides: Better mechanical properties. Optimized resin flow during infusion. Improved surface appearance: less resin rich areas. Construction Total weight: 822 gsm Fibres orientation: +45°/-45° (BX) +45° : 401 gsm - 1200 tex -45° : 401 gsm - 1200 tex Coating Coating - Type: Hot melt Coating - Weight: 10 gsm Assembly Assembly: Stitching Chain Polyester 3mm Transformation Process Infusion RTM HLU Conditioning Width(s): 127 cm Roll Length: 90 ml
