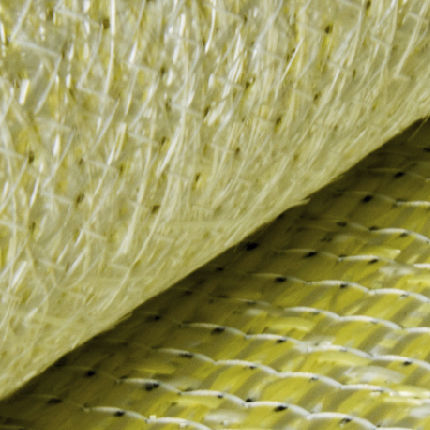

Stitched fabric ARAMAT™ 372K/200
aramidfiberglass

stitched fabric
stitched fabric
stitched fabric
stitched fabric
stitched fabric
Add to favorites
Compare this product

Characteristics

Type
stitched
Material
aramid, fiberglass

Description

DESCRIPTION ARAMAT™ 372K/200 is a 578 gsm multi-layer stitched fabric combining a mixed glass/Kevlar® fabric and a fiberglass mat. Use of Kevlar® fibers helps to reduce the weight. ARAMAT™ is primarily intended for the shipbuilding industry. Product Line Stitched Multi-Layers Material Material(s): Aramid - Glass Construction Total weight: 578 gsm Fibres orientation: 0°/90° (BT) Warp Glass : 120 gsm - 2 ends/cm - 600 tex Warp Aramid : 65 gsm - 2 ends/cm - 316 tex Weft Glass : 120 gsm - 2 ends/cm - 600 tex Weft : 65 gsm - 2 ends/cm - 316 tex Pattern: Twill 2/2 CSM1 Weight: 200 gsm Assembly Assembly: Stitching Tricot Polyester Transformation Process Infusion HLU Conditioning Width(s): 125 cm Roll Length: 50 ml BENEFITS Due to the close bonding between glass and Kevlar® and the increased cohesion between fibers, ARAMAT™ delivers enhanced mechanical properties to laminates. Robustness, durability, safety. Improves impact strength. Reduction in overall weight structure compared to conventional glass laminates, aluminum alloy and steel due to the lower density of Kevlar® (weight reduction approximately 6% – 12%). Substantial reduction in labor (fewer layers). Excellent compromise between cost and performance.
