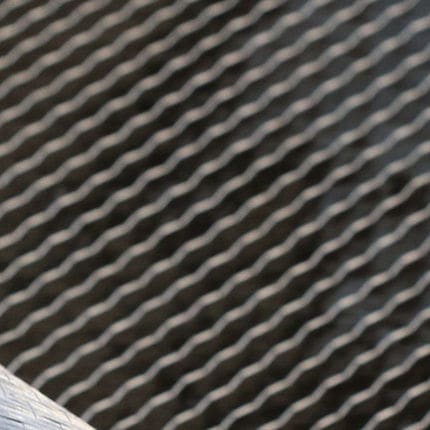

Quadraxial technical fabric C-PLY™ Q800 T2,5 50K TRW40

reinforcedcarbon fiberreinforcement

C-PLY™ Q800 T2,5 50K TRW40 is a 800 gsm quadriaxial carbon NCF, 200 gsm/ply. It is made using TRW40 multi compatible resin carbon fiber. Plies are combined using a tricot stitch. This reinforcement is particularly adpated to marine industry or parts which are resin infused. BENEFITS Gap free technology, no resin rich areas. Non Crimp Fabric, better mechanical properties. Optimization of layer construction, cost savings. Construction Total weight: 800 gsm Fibres orientation: 0°/+45°/-45°/90° (QX) 0°: 200 gsm +45° : 200 gsm -45° : 200 gsm 90°: 200 gsm Assembly Conditioning Width(s): 125 cm Roll Length: 100 ml Options Powdering an epoxy binder will enhance products stability during cutting and preforming operations. The choice of a binder depends on the matrix compatibility and process conditions. Powdering weight ranges from 5 to 30 g/m² and can be adapted to customer requirements (single side, double side) and product constructions. Various Veil (PES, Glass,…) or thin Web (CoPa,…) can be heat set or stitched for Stability, Aspect or Preforming purposes. Online slitting capabilities as narrow as 14 cm (5.5’’).
