Unidirectional technical fabric C-PLY™ U300S7 CT3,4 50K HS

carbonreinforcementfor composites

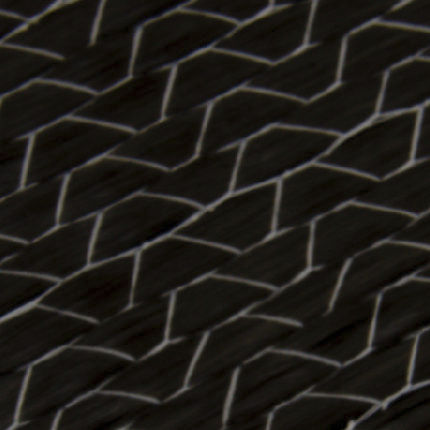

C-PLY™ U300S7 CT3,4 50K HS is a 300 gsm unidirectional spread-tow carbon NCF, with glass stabilization at 90°. It is made using 50K HS carbon fiber. The ply is stabilized at 90° so that it is stable for handling. Construction Total weight: 300 gsm Fibres orientation: UD 0°: 300 gsm Additionnal Treatment(s): Stabilization Additionnal Treatment Weight: 10 gsm Assembly Assembly: Stitching Mix Polyester 3.4mm Conditioning Width(s): 125 cm Roll Length: 100 ml Options Epoxy binder powdering: Powdering an epoxy binder will enhance products stability during cutting and preforming operations. The choice of a binder depends on the matrix compatibility and process conditions. Powdering weight ranges from 5 to 30g/m² and can be adapted to customer requirements (single side, double side) and product constructions. Veil and web: Various Veil (PES, Glass,…) or thin Web (CoPa,…) can be heat set or stitched for Stability, Aspect or Preforming purposes. Slitting services: Online slitting capabilities as narrow as 14 cm (5.5’’).
