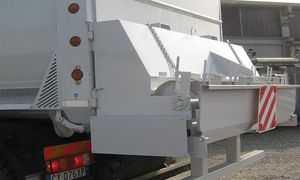

The VEYMONT chipping spreader is a step forward in lorry-mounted chipping spreaders. The system solves the problem of accessing the aggregate when carrying out manual spreading activities.
The SECMAIR solution consists in optimising the operator gangway to minimise obstruction and in facilitating access to the container, which is located at the appropriate working height (the VEYMONT container).
The container enables the aggregate spreader to be loaded by opening trap doors and offers storage space for a shovel, sweeping brush and small tools.
To prevent the risk of operators being knocked down during reversing manoeuvres, the driver is informed that the VEYMONT container is open. A camera can be added as an extra safety precaution.
|
|
|
|
|
|
S-8 & S-10 8'(2.5m) & 10'(3.0m) fixed width screeds
The S series vibratory screeds are available in both 8' (2.5m) and 10' (3.0m) standard paving widths. Standard features include 3' (0.9m) hydraulic strike-offs with electric articulation, dual screed control consoles, power crown control and outlets for heating bolt-on extensions.
EZ-III 8'(2.5m) & 10'(3.0m) front mounted hydraulic extension screeds
The EZ-III hydraulic extendable screed comes in an 8' (2.5m) to 13'6" (4.1m) version or a 10' (3.0m) to 17' (5.2m) version. Features include a 34 kW generator, vibration, adjustable angle of attack, adjustable slide track, berm builder and spring loaded end gates with replaceable runners.
EZIV 8'(2.5m) & 10'(3.0m) front mounted hydraulic extension screeeds
The EZ-IV hydraulic extendable screed comes in an 8' (2.5m) to 15' (4.5m) version or a 10' (3.0m) to 19' (5.8m) version. Features include a 34 kW generator, vibration, adjustable angle of attack, adjustable slide track, berm builder and spring loaded end gates with replaceable runners.
Eagle 8 & 10 8'(2.5m) & 10' (3.0m) rear mounted hydraulic extension screeds
The Eagle-8 can hydraulically extend to 15'6" (4.7m) while the Eagle-10 can hydraulically extend to 19'6" (5.9m). Both have rear mounted extensions facilitating excellent material flow to the ends of the screed and come equipped with a 34 kW generator. A unique feature of these screeds is being able to service the electric heating elements without dropping the screed plates.
|
|
The CHIPSEALER 61 is the product in-between the handle and autonomy. It is ergonomic, securing and esthetic in the same time.
Mechanically, it consists of :
A 3 axle straight truck;
A binder storage capacity from 3500 litres to 6000 litres (emulsion only or all binders);
The chippings are stored in an Amphore tipper from 4 to 6m3 capacity ;
The chipping spreader feds by 2 belt conveyors, works up to 3.10 m (possibility of a 4m spreading with the VINTRAP chipping spreader)
The binder spray bar and the chipping spreader, working up to 3.10 m or can be a telescopic one and spray up to 4.5meter (EXAGEVA spray bar).
When coupled to a trailer it can apply surfacings independently.
The informatization includes :
PLACIDE and GRAVIDOS ensure the control of execution conditions
LOOKRAX : It gives access to storage of the road surface quality before the surfacings are applied - initial photo;
The driver's post is a NEW PILOT one.
|
|
|
|
