After compressing the air, the concentration of particles and moisture increases. This creates an abrasive mixture that can cause extensive damage.
Instruments and tools can malfunction, spray painting and breathing air can be rendered unusable, maintenance costs will increase and products will be spoiled.

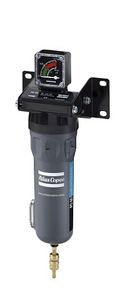

The range of Atlas Copco's DD - PD - DDp and QD filters, when used in the correct combinations, will provide high quality air from 9 to 7200 l/s at nominal working conditions.
|
|
HD High Pressure Filters
HD high pressure filter housings are designed for compressed air and gas applications up to 400 bar. Each housing can accommodate any of our standard range of filter elements for your specific need. Flow capacities from 30 to 720 m³/h nominal at 7 bar g are available. Modifications on request.
|
|
|
A range extended for the air conditioning: AS2 - AS3 - AS5 complete Unit FRL, governor automatically-controlled, filters, membrane drier, pressurization progressive, gate valve. Flow from 150 to 10.500 possible Nl/min. Many accessories for all applications
|
|
The subminiature filters are ideal for a broad range of industrial, medical, and instrumentation applications. The disposable filters are designed to remove most particulate contaminants in compressed air systems. The filter media, a Dutch Weave 316 stainless steel screen, is available in 5, 25,43, and 73 microns. The maximum supply pressure is 125 PSI.
Three models are available: The F-950 Series Filter has barbs for 1/16” or 1/8” I.D. tubing. The F-960 Series Filter is encased in a 10-32 UNF male threaded housing with a barb for 1/16” or 1/8” I.D. tubing. The F-970 Series Filter has the largest effective filter area and is encased in a 10-32 UNF female threaded housing.
|
|
Features:
- Integrated monitoring of the useful lifetime of the filter element to automatically indicate the optimal time of element change
- Easily readable, informative display
- Potential free contact for relaying a fault signal to a control centre
- Condensate discharge at the rear through elbow connector, ideal for installation close to a wall
|
|
Compressed Air Filter
Sizes Available: Miniature Series 1/8", 1/4" NPT, Compact Series 1/4", 3/8", 1/2" NPT, Large Series 1", 1-1/2" NPT
General purpose filter removes water, dirt and dust from the air line.
Manual and Automatic drain types available. The automatic drain operates only when flow change occurs.
Bowl available in transparent polycarbonate or metal zinc die cast.
Filter Element size: Miniature: 5, 25, 100 micron, Compact: 5, 25, 50 micron, Large: 5, 50 micron
|
|
|
As the world’s leading air treatment technology company, Ingersoll Rand set out to find a better way. The solution: re-defining compressor air filter performance and maintenance using proactive time-based element replacement. Ingersoll Rand’s next generation of compressed air filters features our new Element Replacement Indicator (ERI) –an illuminating approach to filter maintenance that yields real, measurable benefits for you, for your company and for our environment.
|
|
Compressed air has many advantages in terms of safety, flexibility and economic use. However, more stringent requirements are continuously being made on the quality of compressed air Airpress compressed air filters are deliverable for many
applications, are easily maintained and are fitted with a differential pressure guage.
This allows easy evaluation of the filter quality and therefore the correct moment to replace the element. The compressed air filters are housed in an aluminium casing with a plastic coating. All filters are provided with an automatic condensate/oil valve, which can also be operated manually. The filters are designed for an operating pressure of 16 bar (Spare element = Item number/E)
|
|
Air treatment system: filter, regulator, lubricator
- A modular, compact range for all types of pneumatic circuits
- Quick mounting and connection on installation: filter, regulator and lubricator functions in a "single unit"
- Lightweight and robust for direct fitting on rigid conduits
Accessories: Softstarter cut-off valves, padlockable manual isolating valves, bypass modules.
|
|
CFF Series Filters 1942
Quality is Built into Every Housing
* Epoxy coated interior and exterior heads and bowls
* Threaded condensate discharge connection
* Bayonet head to bowl connection up to 170 scfm (289 m3/h)
* Thermoset polyurethane liquid level indicator
* Every housing tested to a 5:1 factor of safety
Quality is Built into Every Filter Element
* All stainless steel inner and outer cores
* Complete seam welded cores having a burst pressure of 65 psid (4.5 bar)
* Coated foam sleeves providing protection against chemical attacks
* 100% silicone free
|
|
General Description
316 stainless steel filter for filtration of compressed air in the offshore, food, pharmaceutical and allied industries. Large 40 micron standard element with manual or automatic drain for the removal of liquids and solids.
- Large flow paths minimise pressure drop. 316 Stainless steel throughout.
- Large stainless steel element.
Operating Fluids
- Gases, air, inert gas, sweet (natural) and sour gases.
- Ingress protection Heavy seas / on deck rating
Technical Data
Working Temperature:
- Ambient temperature -20ºC to +80ºC (-4ºF to +176ºF)
- Low temperature version -50ºC ( -58ºF)
Ports:
- 1/4", 1/2", 3/4" and 1" NPT and BSP
|
|
The FRL range is a complete line of components for the treatment of the compressed-air.
FILTER: Thread from 1/8 to 1". Filtration Grade from 5µm to 50µm. Maximum Pressure 15 bar.
REGULATOR: Thread from 1/8 to 1". Regulation Range from 0-2 to 0-12 bar. Max. Pressure 15 bar.
FILTER REGULATOR: Thread from 1/8 to 1''. Regulation Range from 0-2 to 0-12 bar. Filtration Grade from 5µm to 50µm. Max. Presssure 15 bar.
Condensate Exhaust System: Semi automatic - Manual or Automatic to vacuum-operated.
QUICK EXHAUST REGULATOR: Thread 1/8-1/4. Regulation Range from 0-2 to 0-12 bar. Max. Pressure 15 bar.
LUBRICATOR: Thread from 1/8 to 1''. Max. Pressure 15 bar. Oil Loading System: Manual or Automatic to vaccum-operated.
SHOT OFF VALVE: Thread from 1/8 to 1''. Max Pressure 15 bar. Drive System Manual, Pneumatic, Electropneumatic.
SOFT START VALVE: Thread from 1/8 to 1''. Max. Inlet Pressure 3-10 bar. Drive Sytem Electropneumatic.
FR-L, V-FR-L, F-R-L, V-R-L, F-L are available.
|
|
C3
of plastic, modular design
5 and 20 µm, G1/4 - G1
outlet 0 - 8 bar, max. 8500 l/min
|
|
Assembled Combinations
Sizes Available: Miniature Series 1/8", 1/4" NPT and Compact Series 1/4", 3/8", 1/2" NPT
An assortment of filter, regulator, and lubricator combinations available.
|
|
|
|
|
|
Filters, Regulators, and Lubricators (FRLs)
27 Modular Series Assemblies and Accessories
Filter, Regulator, Lubricator, trio (pictured)
- traditional trio design
- gauge packaged uninstalled for installation on either side
- bowl guard supplied standard
- filter, regulator, and lubricator options available
27 Series combo units offer pre-assembled units for fast installations. The integral filter/regulator offers space saving design. Duo and trio assemblies utilize the modular clamping system to ease installation.
Other Filters, Regulators, and Lubricator Products offered by Coilhose Pneumatics:
Economy Regulators
Pre-Set In-Line Pressure Regulators
Adjustable In-Line Pressure Regulators
In-Line Series F, R, Ls
Miniature Series F (also in Coalescing), R, Ls
Miniature Pro Line F, R, L, Assemblies and Accessories
25 Series F, R, L, A and A
26 Series F (also in C), R, L, A and A
27 Series Modular Series F(also in C), R, L, A and A
Heavy Duty Series F (also in C), R, L, A and Accessories
General Purpose Series F (also in C), R, L, A and A
Dessiccant Air Dryers
Mechanical Condensate Drains
Solid State Automatic Drain
Pressure Gauges
Vacuum and Hydraulic Gauges
|
|
The enhanced ARO-Flo products come in four series, varying in port size and maximum standard cubic feet per minute (scfm) for optimal fit to the application and tools used:
-Miniature 1000 Series with 1/8” and 1/4” ports, and a maximum flow of 27 Liters/sec.
-All-new Compact 1500 Series with 1/4” and 3/8” ports, and a maximum flow of 109 scfm.
-Standard 2000 Series with 3/8”, 1/2”, and 3/4” ports, and a maximum flow of 104 Liters/sec.
-Heavy-Duty 3000 Series with 3/4” and 1” ports, and a maximum flow of 180 Liters/sec.
Key advantages of the upgraded ARO-Flo products are optimal performance and improved safety.
Safety
• Tested to ISO standards
• Locking Bowls
Performance
• Top tier flow performance
• Industry’s largest integral gauge
• 5 micron standard filter
Modularity
• Fully modular units and accessories
• Easy installation and maintenance
|
|
airfit comfort (G3/8 - G1/2 - G3/4)
Operating comfort at the highest level. Down to the smallest detail.
That was the main challenge for HOERBIGER-ORIGA in the development of a new G1/2 series. The result is called airfit comfort - and it lives up to its name.
Advantages:
optimum price/performance ratio
high operating reliability
fast bowl change with bayonet fitting
direct wall-mounting possible
connects to G3/4 air lines using special adapter
corrosion resistant through high quality surface treatment of the zinc die-cast housing
modular design for easy interlock between components
comprehensive range of accessories
all environmentally relevant materials are identified
|
|
MD4
Modular Filters, Regulators, Lubricators with space saving design allowing for use in smaller spaces while providing high flow capacity.
MD4 series have modular clamps that can be disconnected from the front instead of the bottom, making filter element replacement and general maintenance much easier. There is also an option for an adsorber that is designed to remove vapors from the air line that cannot be removed by a coalescing filter. It allows for air to be free of oil and hydrocarbons.
|
|
Large Flow Filtration for Air and Gas (1,600 scfm and larger)
Fabricated from high-quality carbon steel, PCC Series Filters are welded to ASME standards to provide large flow applications with exceptional air quality and low pressure drop. Designed specifically for use with our high performance air and gas filter cartridges, these filters can be used alone or as prefilters and afterfilters. D urable and dependable, PCC Series protects your compressed air and gas system and enhances dryer performance.
Flanged lid allows easy filter cartridge access. No need to disconnect drain valve or other tubing when changing cartridges
Sturdy vessel support legs simplify piping installations
Multi-element, carbon steel housing design 1,600 to 15,000 scfm
Easy to read differential pressure gauge standard on all models
Low housing pressure drop saves dollars (1 psi pressure drop costs, on average, $67 per year per 100 scfm at 6¢ per kWh).
|
|
Series 6610 line filters are designed for line mounting in tubing with compression-type fittings. They are ideal for filtering liquids and gases to protect sensitive instruments.
Mott Series 6610 line filters are offered for three tube sizes, in a variety of media grades.
|
|
Air treatment system: filter, regulator, lubricator
- A modular, compact range for all types of pneumatic circuits
- Quick mounting and connection on installation: filter, regulator and lubricator functions in a "single unit"
- Lightweight and robust for direct fitting on rigid conduits
Accessories: Softstarter cut-off valves, padlockable manual isolating valves, bypass modules.
|
|
After compressing the air, the concentration of particles and moisture increases. This creates an abrasive mixture that can cause extensive damage.
Instruments and tools can malfunction, spray painting and breathing air can be rendered unusable, maintenance costs will increase and products will be spoiled.
The range of Atlas Copco's DD - PD - DDp and QD filters, when used in the correct combinations, will provide high quality air from 9 to 7200 l/s at nominal working conditions.
|
|
Cube 100 Regulator
Max. primary pressure: 12 bar/170 psi
Temperature range: 0-60 °C
Pressure gauge connection: G 1/4"
Outlet pressure range: 0-10 bar
Weight: 1235 g
Material: Housing: Aluminium
Top cover: Glassreinfoced polyamid
Other parts: Nitril rubber - Brass
Cube 100 Regulator is a single-acting selfrelieving piston regulator. The regulator is inlet pressure compensated. The regulator is designed for use with compressed atmosphaeric air.
|
|
Even in a new installation compressed air is a heavily contaminated product. Dirt is ingested through the compressor inlet, oil is carried over from the piston, and water condenses out at the higher pressures. The demand for more sophisticated and reliable pneumatic systems can only be met by ultra-clean compressed air.
A well-designed coalescing filtration system will essentially remove all solid and liquid contamination, with minimum maintenance and operating costs. Headline coalescing filters remove 99.99% of solid and liquid particles and aerosols down to 0.1 micron, producing truly clean compressed air.
|
|
FSX Solutions - Cast filters
Features:
* Cast aluminum construction
* Available connections from 1/4" NPT to 3" NPT
* Pressures up to 725 PSIG
* Flow capacities from 30 to 1650 SCFM
* Internal and external corrosion protection
Available with differential pressure gauge, float drains, zero-loss drains, manual drains or oil indicator (for activated carbon filtration) etc.
Typical Applications
Coalescing water/oil removal:
* Compressed air and gas system protection
* Dryer protection
* Paint spray booths
* Air tools protection
* Point of use
Particulate removal:
* Desiccant dryer after-filter
* Prefilter to coalescer
* Systems with higher particulate concentration
* Particulate protection for non-lubricated systems
Hydrocarbon vapor removal:
* Odor removal
* Food packaging
* Powder paint systems
|
|
After compressing the air, the concentration of particles and moisture increases. This creates an abrasive mixture that can cause extensive damage.
Instruments and tools can malfunction, spray painting and breathing air can be rendered unusable, maintenance costs will increase and products will be spoiled.
The range of Atlas Copco's DD - PD - DDp and QD filters, when used in the correct combinations, will provide high quality air from 9 to 7200 l/s at nominal working conditions.
|
|
After compressing the air, the concentration of particles and moisture increases. This creates an abrasive mixture that can cause extensive damage.
Instruments and tools can malfunction, spray painting and breathing air can be rendered unusable, maintenance costs will increase and products will be spoiled.
The range of Atlas Copco's DD - PD - DDp and QD filters, when used in the correct combinations, will provide high quality air from 9 to 7200 l/s at nominal working conditions.
|
|
Compact module
•The main dimensions (width and depth) ofF.R.L. devices have been integrated into a com-pact module. Accurate assembly dimensionsare obtained with simple calculation.
Long-life element
•This element incorporates CKD's originalchemical fiber structure (patent pending), whichhas a rough surface and gradually becomesfiner toward the inside. Clogging is greatly re-duced, and the element life is greatly extended.There is no worry of rust forming.
Embedded pressure gauge for saving space
•The conventional protruding pressure gaugewasted space on the front, and endangeredpersonnel. A neat design and safety have beenrealized by embedding the pressure gauge intothe body.
|
|
|
|
|
|
FRL's - Delta 901 Series Premium Filters
The Numatics Delta Series%u2122 offers premium filtration for applications which require high flows. The standard aluminum end caps on every element, premium manual drain, seals made of Viton®, and available 3 micron internal pleated prefilter sets the Delta Series%u2122 apart from other competitors.
Features:
Inner core - Prevents element from collapsing in backflow conditions
Optional internal pleated prefilter - 3.0 micron media protects the fine borosilicate fibers from large particles, extending the life of the coalescing media
Inner media wrap - Allows crossflow of gas which initiates the coalescing process
Media - Three coalescing media choices for best performance. Proprietary glass fiber blend combines low differential pressures and high efficiencies with maximum holding capacity (3 micron particulate and adsorbing grade also available)
Outer media wrap - Allows crossflow of gas and improves performance
Metal retainers - Supports the media both inside and outside during pressure spikes or high differential pressures
Drain layer - Large pore fibers allow the large coalesced liquids to drain to the bottom of the bowl
End caps - Aluminum end caps provide sturdiness and durability. The design of the bottom caps make inserting a new filter element easy.
|
|
The 10F Miniature Coalescing Filter is designed to remove 99.9% + of the liquid aerosols, both water and oil, and submicron particulate matter from your pneumatic system. These filters will provide oil free air for applications such as spray painting, air gauging, pneumatic instrumentation, printing, and packaging.
FEATURES:
Removes Liquid Aerosols & Sub-Micron Particles
iquid Gravitate to the Bottom of the Element & Will Not Re-Enter the Airstream
Interchangeable Twist & Automatic Pulse Drain
|
|
|
|
