Gas filter P3XF series
compressed airmembranelaboratory

gas filter
gas filter
Add to favorites
Compare this product


Designed for
gas, compressed air
Filtration element
laboratory, welding
Other characteristics
compact, automatic, semi-automatic

0.055 m³/s, 0.075 m³/s (1.942 ft³/s)

Operating pressure

16 bar (232.06 psi)

Filtration size

0.5 µm, 40 µm

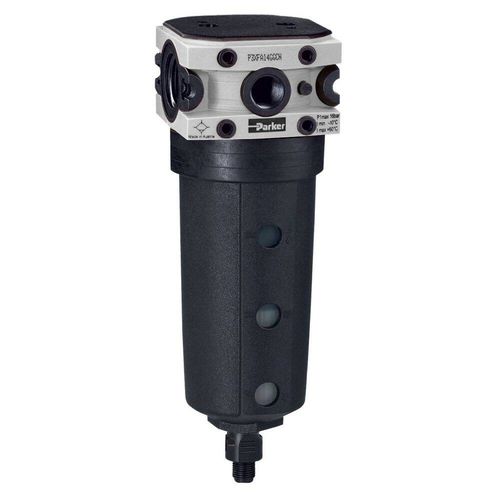

P3XF is a 62mm lightweight particulate filter, 1/2" & 3/4" BSPP (NPT 1/2" only), 5µ & 40µ element, high tech polymer bowl with combi manual/semi-auto or auto drain. Max P1 pressure of 16 bar. Temp from (combined drain) -40°C to 60°C. Parker's P3XF is a lightweight particulate filter that delivers high moisture removal in a compact package. The P3XF is used for the removal of solid particle contaminants down to 5 & 40 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific weight and flow restricted applications this product can provide outstanding performance. The P3XF can also be mounted using body connector kit to other P3X air preparation product. The various options available (such as auto drain and combined manual / semi-auto drain) make this series easy to configure for your application. Markets: • Vehicle assembly Facilities • MRO • Lab Diagnostic • Miscellaneous Processing • Packaging Machinery • Printing & Marking Equipment • Material Handling Equipment • Miscellaneous Industrial • Plastic Processing • Rubber & Tire Processing Features/Benefits: • Integral 1/2 or 3/4” ports • 2 stage filtration • High efficiency 5μ particulate element as standard • Excellent water removal efficiency • Low temperature -40°C with combined manual/semi – auto drain as standard Applications: • Cutting, welding, painting • Machining • Pick and place • Packaging and wrapping systems • Applications for tools • Cylinder and Valve protection • Pneumatic applications • Chemical process • Woodworking process


No catalogs are available for this product.

See all of Parker Pneumatic Division Europe‘s catalogs
