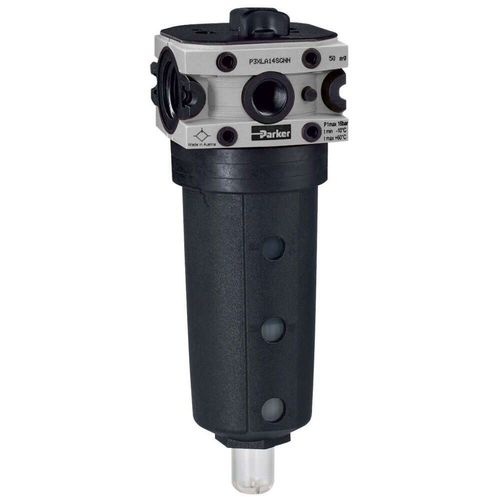

Oil mist lubricator P3XL
pneumaticautomatic

oil mist lubricator
oil mist lubricator
Add to favorites
Compare this product


Characteristics

Type
oil mist
Technology
pneumatic
Other characteristics
automatic
Pressure

16 bar (232.1 psi)

Flow rate

Max.: 0.78 m³/s (27.55 ft³/s)

Min.: 0.01 m³/s (0.35 ft³/s)

Description

P3XL is a 62mm lightweight nano-mist lubricator, 1/2" & 3/4" ported BSPP (NPT 1/2" only), high tech polymer bowl. Max P1 pressure of 16 bar. Temp from -10°C to 60°C. The P3XL nano-mist lubricator is self regulating & automatically adjusts oil feed to the flow demand to give a constant oil/air mixture ratio, this prevents unauthoried adjustment of oil, extending refill periods, giving extended life & performance to air tools/motors & other pneumatic devices. This unit is ideal for high flow applications that demand uniform lubrication in a robust package. For Synthetic oil and glycol based anti-freeze. With 5 & 50mg/m³ atomiser options available the P3XL is easily configurable to other P3X products to suit various applications. This unit is ideal for high flow applications that demand uniform lubrication in a robust package. Shell Cassida Fluid HF-VG15 oil is suggested for lubrication and will allow the product to perform at peak performance. Can be used with synthetic compressor oils & glycol based anti-freeze. Markets • Machine Tools • Misc. Industrial • Misc. Manufacturing • Air and Gas • Appliances • Factory Automation • Entertainment Automation • Molding • Packaging Machinery • Printing and Marking Equipment • Vehicle Assembly Facilities • Wearing Apparel • Food and Beverage • Misc. Processing Features/Benefits • Integral 1/2 or 3/4 ports • Proportional oil delivery over a wide range of air flows • No adjustment necessary (self adjusting) • Fill from top under system pressure • Different liquids can be used Applications • To protect tools and cylinders against corrosion • Reduce friction • For cooling tools or against frost
