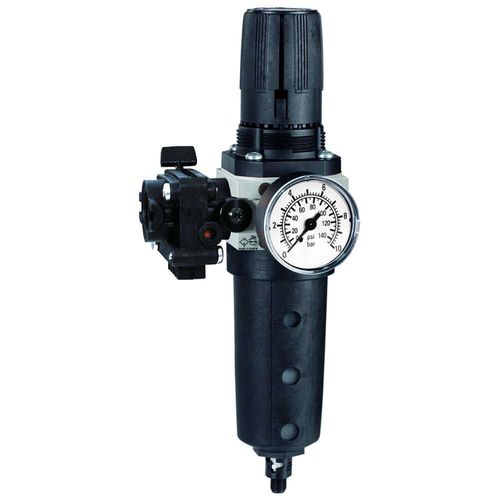

Air filter-regulator P3XAN

air filter-regulator
air filter-regulator
Add to favorites
Compare this product


Characteristics

Designed for
air
Filtration size

5 µm, 40 µm

Operating pressure

Min.: 0 bar (0 psi)

Max.: 16 bar (232.06 psi)

Flow

0.105 m³/s, 0.106 m³/s (3.708 ft³/s)

Description

P3XAN is a 107mm combo, 1/2",3/4" BSPP (NPT 1/2") port, slide valve, 5/40µ, high tech polymer bowl with combined manual/semi-auto or auto drain. Max pressure 16 bar with P2 ranges 0 to 4, 8 & 16 bar. Temp -10°C to 60°C. Parker's P3X series combo is a configured 2-piece unit consisting a slide valve and filter regulator as one part number. The P3X combo provides a lockable slide valve to prevent unauthorised adjustment and accurate pressure regulation with high moisture removal efficiency. This fully featured P3X series combo can be assembled ready for use. Markets • Machine Tools • Misc. Industrial • Misc. Manufacturing • Air and Gas • Appliances • Factory Automation • Entertainment Automation • Molding • Packaging Machinery • Printing and Marking Equipment • Vehicle Assembly Facilities • Wearing Apparel • Food and Beverage • Misc. Processing Features/Benefits • Padlockable • When the inlet pressure is turned off the downstream vents through the exhaust port. • P3X Series Slide Valves provide shut off line pressure to prevent unauthorised adjustment • Integral 1/2 or 3/4 ports • High efficiency 5 micron element as standard • Excellent water removal efficiency • Secondary pressure ranges 8 and 16 bar • Rolling diaphragm for extended life • Secondary aspiration plus balanced poppet provides quick response and accurate pressure regulation • Low temperature -40°C with combined manual/semi – auto drain as standard Applications • To be used in combination with valves and cylinders • At the transfer point from workshop to machine • In combination with tools for assembly and on the Shopfloors
