pneumatic filter-regulator-lubricator
P3XAA

Add to MyDirectIndustry favorites

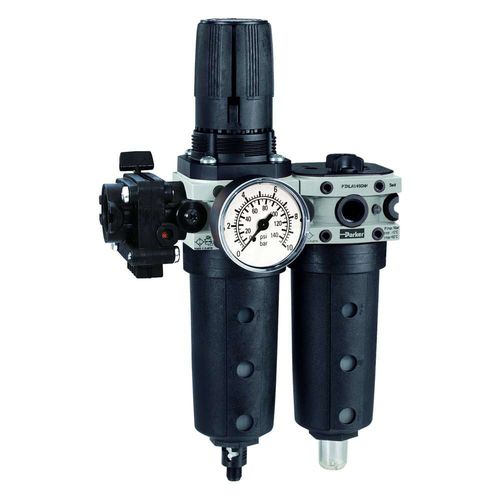

pneumatic filter-regulator-lubricator pneumatic filter-regulator-lubricator - P3XAA
{{requestButtons}}

Characteristics

  • Designed for:

    pneumatic

  • Filtration size:

    5 µm, 40 µm

  • Operating pressure:

    Max.: 16 bar (232.06 psi)

    Min.: 0 bar (0 psi)

  • Flow rate:

    0.076 m³/s, 0.077 m³/s (2.684 ft³/s)

Description

P3XAA is a 169mm combo, 1/2",3/4" BSPP (NPT 1/2") port, slide valve, 5/40µ, high tech polymer bowl with combined manual/semi-auto or auto drain. Max pressure 16 bar with P2 ranges 0 to 4, 8 & 16 bar, nano-mist lub. Temp -10°C to 60°C.
