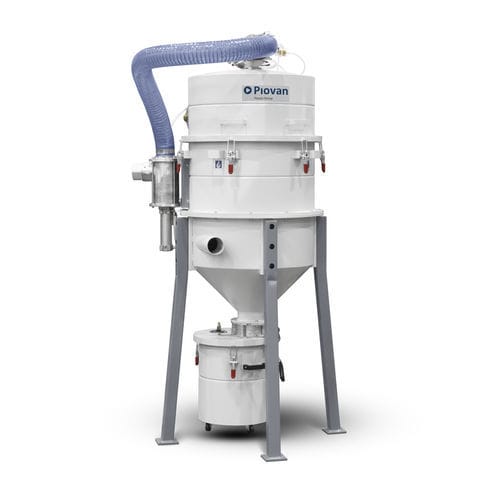

Cartridge filter unit CF 6

with cartridgepaper filterwith filter cartridge

Overview

• Filter with automatic cleaning
• Designed for dusty materials to preserve process continuity
• Reduced maintenance thanks to automatic cleaning
• Available with paper or polyester cartridges

Description
The CF 6 is an automatic-cleaning filter engineered to remove dust from process streams and maintain continuous operation. Piovan’s automatic cleaning system uses timed compressed-air pulses to clean paper or polyester cartridges while the separated dust is collected in removable bins designed for easy emptying. The unit is suited to industrial environments and simplifies routine servicing.

Components / notable elements

• Filter mounted on a separate frame for easy access and maintenance
• Internal paper or polyester filtering cartridges with extractable supports
• Butterfly valve to isolate the collecting bin from the process
• Automatic cleaning device and accumulation tank mounted on the filter body

Characteristics / technical specifications

• Type: Automatic-cleaning filter
• Cleaning method: Automatic compressed-air pulses
• Filter media: Paper or polyester cartridges
• Dust handling: Collected in removable containers designed for easy emptying
• Maintenance: Reduced; designed for easy cartridge extraction and access
• Accessories/components: Extractable cartridge support, butterfly valve, accumulation tank
• Application: For dusty materials to ensure process continuity
• Commercial name: CF 6
