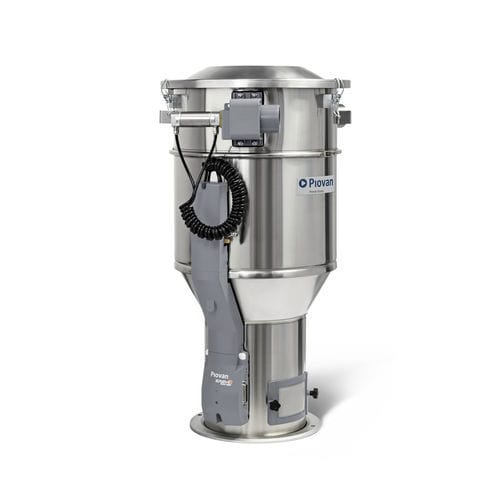

Vacuum receiver for the plastics industry Pureflo

for plastic pelletsfor pneumatic conveying

Product type
VACUUM RECEIVER FOR GRANULES

Product overview
Pureflo is a filter-less vacuum receiver engineered for conveying plastic granules. Available in sizes from 5 to 75 L, it eliminates routine filter cleaning and reduces maintenance requirements in material handling installations.

Key features

• Filter-less, maintenance-free design
• Abrasion resistant construction
• Suitable for ultra-clean environments (e.g., clean rooms)

Design and benefits
The filter-less concept removes mechanical filters that require cleaning and minimises wear from material friction. A rapid air-speed change at the inlet plus an internal right-angle curve dissipate kinetic energy so granules fall into the receiver body with low residual speed, improving discharge and reducing internal abrasion.

Applications / Installation
Recommended for installation sites with limited accessibility such as clean rooms or elevated locations. The compact range of sizes (5–75 L) covers a broad throughput range and facilitates mounting in confined spaces.

Technical specifications

• Model name: Pureflo
• Product type: Vacuum receiver for granules
• Available sizes: 5 to 75 L
• Maintenance: Filter-less, maintenance-free
• Resistance: Abrasion resistant
• Suitable environments: Ultra-clean environments and limited-access/elevated installations
• Design benefit: Right-angle internal curve and rapid air-speed change aid material drop and reduce wear
