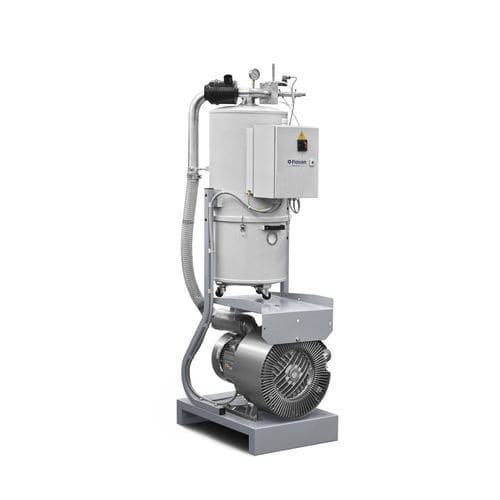

Side-channel vacuum unit F

rotary clawindustrialsilent

Product type VACUUM UNIT

Overview The F Series vacuum units provide low noise (up to 75 dB(A)) and a compact footprint. They are suitable for standalone installation beside the IMM, for feeding intermediate hoppers with high kg/h throughput (e.g. mono drying systems), or for centralized feeding systems with medium kg/h throughput. Integrated filter and maintenance‑friendly configuration support industrial material feeding applications.

Technical range From 0.75 to 12.6 kW

Key features

• Compact footprint and low noise level (up to 75 dB(A))
• Maintenance‑free electric motors
• Quick and simplified filter cleaning operations

Design & options

• High-throughput variants can be equipped with multi-stage side-channel blowers or claw pumps
• CF6 filter can be mounted on a separate frame to facilitate maintenance
• Range covers throughput from a few kg/h up to thousands of kg/h depending on configuration

Technical specifications

• Noise level: up to 75 dB(A)
• Power range: 0.75–12.6 kW
• Throughput: low to medium (from few kg/h up to thousands of kg/h)
• Integrated filter (option: CF6 on separate frame)
• Pumping options: multi-stage side-channel blowers or claw pumps
