On-board weighing system Ryng

continuousfor granulatesfor powders

Overview

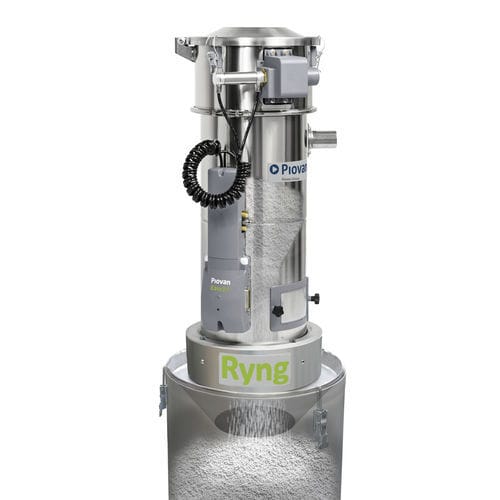

Ryng is a production monitoring weighing system that provides real-time measurement of material transferred into vacuum receivers. It integrates a high-precision load-cell and filtering algorithms to deliver accurate throughput data for consumption analysis and batch traceability via Winfactory 4.0. Typical system accuracy is approximately 1% in installations with vibration.

Key features

• Capacity range: 40–300 kg (granules, flakes and powders)
• Real-time weight measurement with integrated high-precision load-cell
• Throughput logging and production statistics via Winfactory 4.0
• Applicable to any vacuum receiver

Design & operation

• High-precision load-cell integrated into a stainless steel Ryng body
• Load-cells housed inside the unit to minimise risk of damage
• On-board filtering and algorithms reduce vibration effects on measurements

Compatibility & control

• Compatible with Piovan receivers and third-party receivers
• Control and parameter viewing via 7" colour touch panel
• Easy integration with existing conveying and control systems

Technical specifications

• Measurement range: 40–300 kg (granules, flakes, powders)
• Measurement technology: integrated high-precision load-cell
• System accuracy: approximately 1% in typical vibrating installations
• Data recording: throughput data logged to Winfactory 4.0 for consumption analysis and batch traceability
• Construction: stainless steel body with protected load-cells
• User interface: 7" colour touch panel
• Primary application: real-time production monitoring and raw material usage tracking
