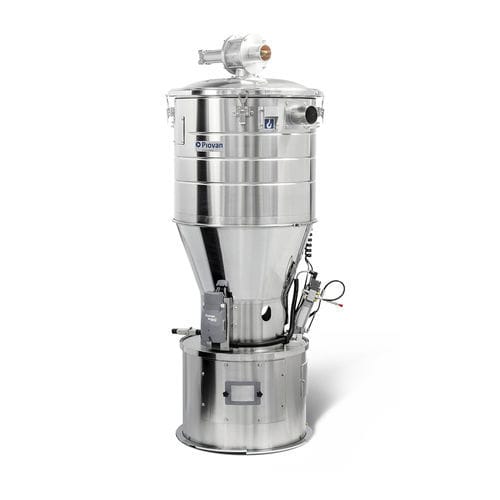

Vacuum receiver for the plastics industry CS

for pneumatic conveying

Overview
CS Series vacuum receivers are engineered for handling flakes that tend to bridge, ensuring reliable discharge and continuous feeding. Capacity range: 30–200 L for flakes.

Main benefits

• Designed for materials with a tendency to bridge
• Ensures material discharge to maintain production continuity
• Suitable for high-throughput feeding systems

Functionality and features

• Cone geometry and optional bridge breakers promote reliable discharge
• Pneumatic flaps available for very light materials
• Body geometry optimized to support flow of difficult or light materials
• Vibrating level sensors can control start/stop of the feeding cycle
• Internal bridge breaker can be added for very light or highly irregular flakes

Applications

• Handling and feeding of flakes in industrial plastic processing
• High-throughput production lines requiring continuous feed
• Feeding of very light or irregular-shaped materials when fitted with appropriate accessories

Technical specifications

• Type: Vacuum receiver
• Capacity range: 30–200 L (for flakes)
• Designed for: flakes and materials prone to bridging
• Discharge aids: cone geometry, bridge breakers (internal or optional)
• Options: pneumatic flaps, vibrating level sensors
• Suitable for: continuous feeding and high throughput
