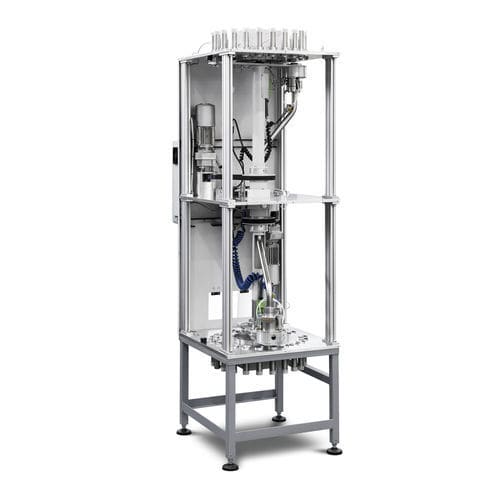

Electric multi coupling Easylink+

pneumaticfor computer-integrated manufacturingtransport

Product overview
Automatic coupling station for centralized material handling. Manages up to 60 inlets/outlets with compatible pipe sizes from 40 to 76 mm and a minimal footprint. Vertical compact design with inaccessible moving parts for operator safety. All internal pipe routing is realised with rigid piping (no flexible hoses).

Main features

• Fast and precise
• Ideal quality traceability
• High flexibility

Integration & operation
Integration with Winfactory 4.0 provides maximum traceability of materials and automatic setting of transport and line cleaning times. Material database, source/destination matrix and line recipes can be created in Winfactory 4.0 to automate Easylink+ configuration. Remote connection and stock monitoring with automatic reorder are supported.

Installation & construction
Available with a supporting frame for floor or mezzanine installation. Internal arm equipped with a local cleaning device to reduce contamination risk in the common circuit. Optional pneumatic slide gates on outlets to prevent residual pellets. Pneumatic fittings positioned by encoders; servo motors with inverters for fast, precise movements.

Technical specifications

• Manages up to 60 inlets/outlets
• Compatible pipe sizes: 40 mm – 76 mm
• Minimum footprint; vertical compact layout
• Internal routing: rigid piping (no flexible hoses)
• Support frame: floor or mezzanine installation
• Integration: Winfactory 4.0 (traceability; automatic transport/cleaning timing)
• Internal arm with local cleaning device
• Optional pneumatic slide gates
• Designed for easy maintenance and operator safety
• Wear-resistant materials for demanding production conditions
