Concrete mixers - Self-loading concrete mixer weighers
Excellent for the mixing of concrete, gravel, mortar...
The rotation of the concrete mixer in the mixing direction allows the loading of aggregates.
A manometer (pressure gauge) can be seen from the driver's cabin. It allows the dosage control at each step.
By keeping the mixer turning, it is possible to keep on mixing while transfering onto the delivery site.
By reversing the direction of rotation the requested quantity is discharged on the chosen place.
|
|
The NUVM 1.5 Compact volumetric mixer is flexible and therefore ideal for precast applications as a static unit, great for remote locations trailer mounted where it can be towed to site and reloaded, and invaluable for towns and cities when mounted on a 7.5t truck where access is a problem for larger mixers.
The NUVM1.25 can produce 1m³ within three minutes and can also be used to produce screed or mortar, with a constant production rate at any cement content.
Available as a:
Static unit
Trailer mounted*
Truck mounted**
- Suitable for small precast applications in static version
- Trailer mounted can be left on site and reloaded
- Ideal for restricted access and small loads mounted on a 7.5t truck
- Mixes 1m³ in under 3 minutes
- Can be used for concrete, screed or mortar
*Trailer weight 2000kgs, suitable towing vehicle required. Amount of material carried will be dependent on gross vehicle towing weight.
** Can be mounted to a suitable 7.5t truck.
|
|
Volumetric concrete mixers
TRUCK MOUNTED MOBILE CONCRETE DISPENSERS - 8m3
QSRMC accreditation
Truck Mounted or Static
* Instant concrete production
* Multi- mix designs from same fill
* Exact quantity ‘drops’
* Nil slump mixes
* Simple to operate and maintain
* Optional silo for bulk cement
* Accurate control of cement to ±1%
Features of all models:
* Resettable counter to show amount of concrete produced
* Fully hydraulic operation of mixer and conveyor
* Weathertight cement bins
* Simple operator controls
* Mounted on skid base or ready for vehicle chassis
Static Mixer
Optional equipment:
* Colouring additive systems
* Mixer power swivel
* Push-button automatic controls
* Admixture systems
* Exclusive CemenTech Fibre feeder
* Water systems
* Additional Cement or aggregate bins
* Onsite commissioning and calibration carried out by qualified ARMCON personnel.
|
|
Volumetric concrete mixers
TRUCK MOUNTED MOBILE CONCRETE DISPENSERS - 6m3
QSRMC accreditation
Truck Mounted or Static
* Instant concrete production
* Multi- mix designs from same fill
* Exact quantity ‘drops’
* Nil slump mixes
* Simple to operate and maintain
* Optional silo for bulk cement
* Accurate control of cement to ±1%
Features of all models:
* Resettable counter to show amount of concrete produced
* Fully hydraulic operation of mixer and conveyor
* Weathertight cement bins
* Simple operator controls
* Mounted on skid base or ready for vehicle chassis
Static Mixer
Optional equipment:
* Colouring additive systems
* Mixer power swivel
* Push-button automatic controls
* Admixture systems
* Exclusive CemenTech Fibre feeder
* Water systems
* Additional Cement or aggregate bins
* Onsite commissioning and calibration carried out by qualified ARMCON personnel.
|
|
Volumetric concrete mixers
TRUCK MOUNTED MOBILE CONCRETE DISPENSERS - 4m3
QSRMC accreditation
Truck Mounted or Static
* Instant concrete production
* Multi- mix designs from same fill
* Exact quantity ‘drops’
* Nil slump mixes
* Simple to operate and maintain
* Optional silo for bulk cement
* Accurate control of cement to ±1%
Features of all models:
* Resettable counter to show amount of concrete produced
* Fully hydraulic operation of mixer and conveyor
* Weathertight cement bins
* Simple operator controls
* Mounted on skid base or ready for vehicle chassis
Static Mixer
Optional equipment:
* Colouring additive systems
* Mixer power swivel
* Push-button automatic controls
* Admixture systems
* Exclusive CemenTech Fibre feeder
* Water systems
* Additional Cement or aggregate bins
* Onsite commissioning and calibration carried out by qualified ARMCON personnel.
|
|
Volumetric concrete mixers
Static Mixers
Nine models to suit every application.
Output capacities from 8m³ to 34m³ per hour, based on a concrete content of 300kg/m³
|
|
Already in the year 1888 the first BHS Twin-Shaft Batch Mixer was manufactured and filed for patent. Since then, BHS has fabricated several thousands of Twin-Shaft Mixers and is now the leading company worldwide concerning the number of machines which are installed in the concrete industry.
Our customers benefit from our wealth of experience. We offer perfected and reliable solutions based on state-of-the-art technology.
BHS supplies manifold batch sizes to cover any specific need. A wide choice of accessories and options enables us to adapt the mixer exactly to your requirements.
|
|
|
The turbomixer MT 130 E mixes water and cement. The unit is powered by an electric motor that transmits the motion to the centrifugal pump by V-belts. The electric motor is equipped with belt tension screws. The carter protects the belt/pulley unit. The turbomixer is complete with inspection door.
|
|
Mixers
Towable Mixers
Multiquip's plaster/mortar and concrete mixers are the preferred brand for contractors and the equipment rental industry nationwide because no other manufacturer delivers such an extensive range of features, quality and engineering excellence.

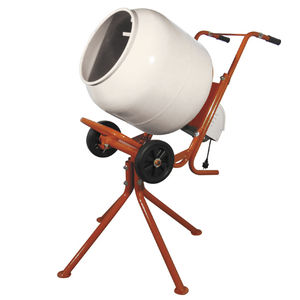

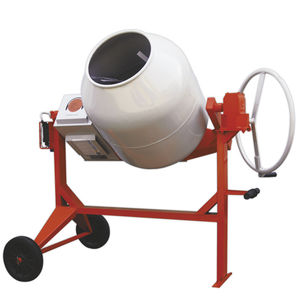

Portable MIxers
The portable Mix-N-Go mixers, available with polyethylene or steel drums, are ideal for jobs including small footings and bases, binding block and concrete patching. They're sturdy enough to mix 3 cubic feet (85 liters) of material.
Stationary Mixers
This 12-cubic-foot (340 liters) capacity plaster/mortar mixer is a stationary model that eliminates the bulky undercarriage on tow-behind mixers. This, along with standard forklift pockets, allows a forklift to pick up, and safely move, the mixer.
|
|
The BHS Twin-Shaft Continuous Mixer represents an effective and reliable solution for continuous mixing processes, particularly with a high proportion of aggregates.
The mixer is suitable to produce aggregate mixes, RCC, landfill sealings, lean concrete etc.
Notable features are reduced wear, simple maintenance and low energy consumption.
The cured material on the trough wall serves as a wear protection. You just have to readjust the mixing tools from time to time. As an alternative we also offer hardcast tiles as wear protection or a rubber trough.
|
|
The development of new types of concrete lead to the consequence that apart from quality control also development and research work is being performed more and more frequently in a concrete laboratory. Thus, the concrete laboratory is gaining a new strategic importance. Hence, it is important that the laboratory test results are representative and can be translated into practical applications without any problems.
At the requests of numerous customers, BHS has therefore developed a laboratory mixer with 60 l volume, which is a truly scaled down version of a real BHS Twin-Shaft Batch Mixer. Lab tests thus correlate to actual field performance.
The lab mixers are available in 3 kW or 2 x 5,5 kW power rating and with a frequency converter (optional).
|
|

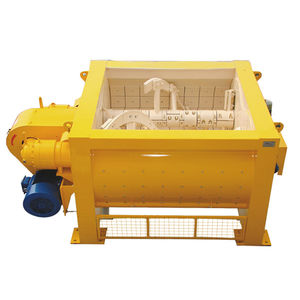

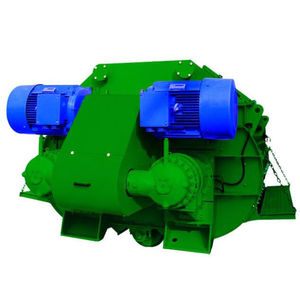

Twin Shaft Batch Mixer
8, 10 & 13 cu yd or 6, 7.5 & 10 m 3
Mixing System
* Reaches 85% uniformity after only 15 seconds, 95% uniformity after 30 second.
* Approximately 30% of one mixing blade rotation is exposed to ear on the mixer trough bottom.
* Crossover of two mixing circles creates a high degree of turbulence.
* The mixing arms are arranged on hexagonal mixing shafts forming an interrupted spiral to produce an intensive mixing motion.
Details
* Mixers are equipped with high-quality hexagonal shafts for optimum torsional and flexural rigidity.
* The mixer drive has a single electric motor driven reduction/timing gearbox to insure uniform distribution of power to the twin mixing shafts.
* Mixers are equipped with oversized round body discharge gate(s). This increases production capacity because more rapid discharge will yield more cycles per hour.
|
|

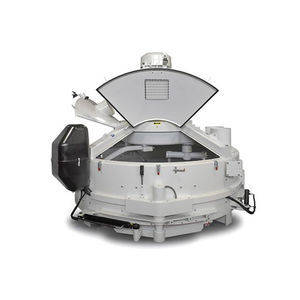

Liebher ring-pan mixers distinguish themselves by producing the best mix quality and are available with various whirler tools.
The Liebherr twin-shaft mixers distinguish themselves via their high discharge outputs.
|
|
|
These 4x4 concrete mixers feature high stability, even with a full load and on difficult and rough stretches. High-tensile electrowelded steel frame, articulated with oscillating bridge for greater stability, and double soft-system jack. Even though small, the concrete mixers of the DB 110 and DB 180 series confirm the high standard of the equipment designed to assist the operator. Stan-dard production includes automatic mechanical closing of the loading shovel to prevent material spillage during loading into the drum. Water tank positioned at the front for better weight distribution in order to always operate in safety conditions. FIORI makes enormous and continuous efforts to improve the safety of the concrete mixers. Unique in its 1 cu m category the DB 110 is fitted standard with 3 windows and driving reversibility. The DB 180 can also have a closed cabin.
|
|
|
|
|
|
|
The cabin is mounted on a silent block to prevent vibrations inside the cabin. Both water tanks are also mounted on a silent block.Radiator in alluminium. Thanks to the patented system the drum turns until the unloading mouth is directly at the front near the driver’s seat. In this way, the material can be unloaded keeping an eye on the casting area while driving. This is particularly useful when unloading on the wrong side. In addition, again for the safety and convenience of the operator, the texture of the concrete can be checked directly from the driver’s seat without having to get out of the cabin. Easy accessibility for maintenance on the engine and the components of the hydraulic circuit. Thanks to the particular design, studied to reduce manoeuvres during loading with the shovel, the Zeta kinematic mechanism makes the self-loading system look like a sort of “wheel-loader” shovel with enormous advantages and time saving. Lifting system with double-acting return and soft-stop braking system.
|
|
CARMIX 5.5 XL
Drum Capacity: 7.600 liters
Concrete output: 5,5 m3 per batch
Maximum speed: 33 km/h
Road transfer from 0 to 30 km/h
Transmission: Hydrostatic, Hydromatic-Rexroth. 4 wheel driving
Engine: Cummins Turbo-Diesel B5.9 TAA, 150 HP
4 wheel steering
ROPS-FOPS driving seat complete with double closing door
Weighing: Electronic System. “Load Cells” acting on the drum, display and printer in the cab (on request)
|
|
CARMIX 2.5
Drum capacity: 3400 liters
Concrete output: 2,5 m3 per batch
Productivity: 4 cycles/hour
Transmission: Bosch Rexroth. 4 wheel driving
Engine: Diesel PERKINS 1104 C-44 water-cooled, 4 cylinders, 85 HP
The mixing unit is slewing hydraulically through 300° for high discharge at 1,9 m to the four sides of the vehicle
Front cab on side of loading shovel. ROPS-FOPS type complete of double closing door
Electronic weighing system (on request)
|
|
CARMIX 3.5T4
Drum Capacity 4.750 l
Concrete output: 3,5 m3 per batch
Productivity: 4 cycles/hour
Transmission: Bosch Rexroth. 4 wheel driving
Engine Diesel PERKINS 1104C-44TA Turbo, water-cooled, 4 cylinders
The mixing unit is slewing hydraulically through 300° for high discharge over 2 m to the four sides of the vehicle
Front cab on side of loading shovel. ROPS-FOPS type complete of double closing door
4 wheel steering
Electronic weighing system (on request)
|
|
CARMIX 25FX
Drum capacity: 3450 liters
Concrete output: 2,5 m3 per batch
Productivity: 4 cycles/hour
Transmission: Bosch Rexroth. 4 wheel driving
Engine: Turbo diesel JCB 444TC, water cooled, 4 cylinders. Power 63 KW (85HP) set at 2200 r.p.m.
Reversible driving seat with automatic inversion of hydraulic steering circuit and ROPS/FOPS canopy
|
|
CARMIX ONE
Drum Capacity: 1400 liters
Real concrete output: 1 m3 per batch
Articulated chassis
Hydrostatic transmission. 4 wheel driving
Engine: Diesel Cummins, A1700 water-cooled, 37 HP
Reversible seat with automatic inversion of hydraulic steering circuit. ROPS-FOPS Canopy
|
|
AUTO CONCRETE MIXER. MAX. WORKING LOAD: 1.000 LITRES. ENGINE: 50 H.P. TRANSMISION: HYDROSTATIC. SWIVEL CABIN.
Auto concrete mixer. Single drive. Hydrostatic transmisión. Perkins diesel engine, model 404 C, four cylinders. 50 H.P. Water cooled. Hydraulic steering. Hydraulic brakes. Electrical start and stop. Mixing drum volume: 1000 L. Front and loading. Swivel cabin. Water self-supplying (300 litres) by automatic suction pump and litres meter (200 l/m). Aceleration level. Cleaning equipment. High pressure pump with pistol. Flashing beacon. Conductor’s protective ceiling. Hour meter. Audible reverse warning signal. Safety belt.
|
|
The name PUMI comes from Pump and Mixer. It places small amounts of concrete within the shortest of time and at lowest costs.
The PUMI transports concrete like a common truckmixer. And - on the construction site - it pumps and places the material like a truck mounted concrete pump.
The advantages of the PUMI at a glance:
Ideal for small and average-sized construction sites.
Driven and operated by one and the same person.
Truckmixer, pump and placing boom as a compact unit.
This means for you new markets, more profit and the guarantee for future turnover
Minimum space requirement
|
|
|
The BOOMIX® truck mixer pumps are a high-quality and functional concrete casting system. Each detail is thought-out, designed and built for operating the truck-mounted pumps in perfect harmony with the frames of the vehicles designed to carry them. The accurate design and the use of special steels guarantee a sturdy structure with a high resistance to wear.
|
|
IVECO NEF - TC - Diesel 4 cil. 102 HP - Direct inyection, water cooled, turbo + aftercooler. With antipollution norms PERFORMANCE Drum capacity 4700 Litres Mix production 3500 Litres Loading shovel 600 Litres
Weight of empty machine 6400 Kg.
|
|
Merlo self-loading concrete mixers: all the benefits of a tried and tested technology that is both economical and efficient for concrete preparation, transportation and casting.
Merlo has forty years of experience behind it in the design and manufacture of self-loading concrete mixers, and offers a complete range to meet every kind of operational requirement. The DBM range permits the rapid preparation of various types of concrete mixes, from the most fluid mortar to low slump concrete, in the precise quantities required and just when needed, the advantages being clear as compared to the traditional pre-prepared concrete.
|
|
|
|
|
|
Stetter Light Line
An optimised drum geometry and arrangement of the mixing spirals as well as additional weightreduced
equipment are the reason for an extremely light mixer body. A payload of up to 8 m3 concrete
can be reached in combination with “low-weight” 4-axle vehicles.
The new mixing spirals which a patent was applied for enable the application of the higheststrength
wear resistant steels available in the market.
Beside a higher payload, this does also mean a substantially longer lifetime compared to all
known light-weight versions. For economic transport of concrete over many years.
■ Drum walls made of high-strength wear resistant steel with a hardness of approx.
300 HB (Brinell)
■ Mixing spirals made of hardened high-strength wear resistant steel with a hardness of approx.
500 HB (Brinell)
■ Wear protection (5/6 mm) made of hardened high-strength wear resistant steel with a
hardness of approx. 550 HB (Brinell)
The result:
■ Approx. 10 % more payload
■ Extremely extended drum lifetime
■ Most economic transport of concrete
|
|
FBP truck mixer pumps are the ideal completent to a fleet of concrete pumps and are always ready for a trip to the smaller jobsites. They not only bring the concrete to site, but also pour it into place. SCHWING-Stetter FBP truck mixer pumps are available in various sizes and configurations. But all of them with genuine SCHWING-Stetter quality, efficiency and robustness built in.
- 24 m boom with 125 mm pipeline, or 26 m boom with 100 mm line
- Long-stroke pump cell means low cycle frequency and minimum wear
- Pump cell fitted lengthways under the mixer drum
- Featuring the SCHWING "Baby ROCK" – economical, strong, re-buildable
- Minimum rear overhang and increased ground clearance and gradeability
- Proportional boom controls
- Fingertip-easy radio remote control for pump and boom
- Level sensor in hopper prevents overspill
- Robust outriggers fully protect the jacking cylinders
- 4 m end hose
- Super 2000 pipeline as option
- Short rear deflector bumper for optimum skip filling
|
|
Truck Mounted Concrete Pumps
Product Range The product range of Putzmeister Concrete Pumps covers all fields of applications starting with the small, versatile concrete pump and ending with the concrete pump with the highest reach and best manoevrability. There are available a Trunk- or S-Tube-system pumps with different equipment. The main chassis used are MB-Atego, MB-Actros and MAN. Other chassis are available on request.
|
|
|
|
