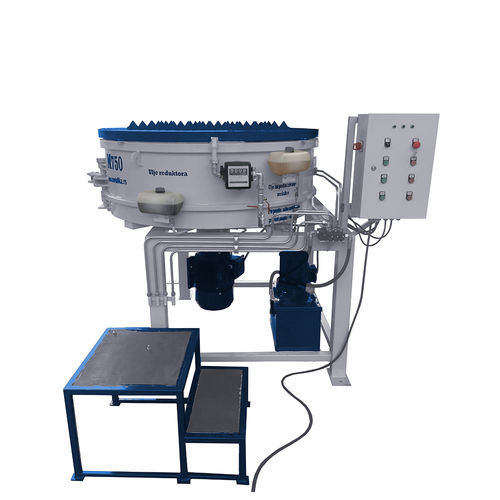

Hydraulic concrete mixer M-750

mobilevertical

concrete mixer with vertical rotation axis and forced concrete mixing, suitable for all concrete mix types. Aggregate, cement, and water is loaded from upper side, and concrete is unloaded from door on the pans bottom. Mixing blades are made from material which is wear resistant. METALIKA designed concrete mixer M-750 Basic type and M-750 Advance type. Basic type M-750 concrete mixer is without hydraulic for opening door of mixer, water meter for water dosing and oiling system for easy maintenance. Advance type M-750 concrete mixer is with hydraulic for opening door of mixer, water meter for water dosing and oiling system for easy maintenance. Technical data Total length of the mixer with a load basket [mm] 4200 Total height of the mixer with a load basket [mm] 3500 Total width of the mixer [mm] 1700 Total width of the mixer with platform [mm] 2700 Mixer weigh with load basket [kg] ~1750 Installed power [kW] 11 or 14 Drive Hydraulic Total capacity of the mixer 0,75m3 (750 l) Working capacity of the mixer 0,33m3 (330 l)
