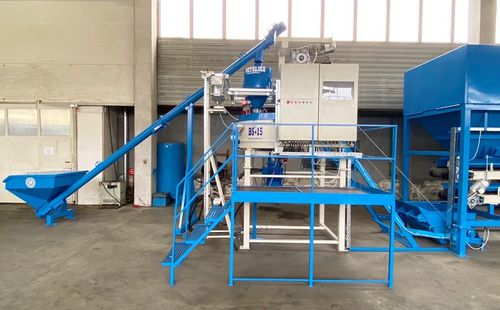

Stationary concrete batching plant BS-15

specialautomaticcompact

Compact concrete batching plant with vertical rotation axis concrete mixer suitable for all kinds of concrete mixture. Concrete batching plant is automatic, with aggregate lifting basket, volumetric aggregate measurement, water gauge with electromagnetic valve, pneumatic or hydraulic door opener and snail cement transporter with scale for cement. Aggregate feeding is performed directly from bunker through conveyor belt dosing unit. Volumetric aggregate dosing. BS-15 is modular, and number of aggregate hoppers can be changed (from one hopper to 4 pcs hoppers for aggregate storage). Cement can be dosed from cement silo or from special basket PT-10 that have 1.000 kg capacity for storage of cement, which is mounted on cement snail transporter. Water is dosed through water gauge (stabile pressure connection to water supply is required), optionally can be upgraded with water scale instead of volumetric water dosing unit. Optionally can be equipped with belt scale for aggregate measurement. features Automatic operation mode (PLC) PAN type of concrete mixer M-750 (750l – 0.33m3) made by „METALIKA“ Aggregate hopper capacity 7.5m3each Cement snail transporter Belt conveyor without scale Extra rigid frame construction Hydraulic for door opening Drive: Electro / Hydraulic Concrete mixer M-750 (geometrical volume): 0.75m3 / 750 L Concrete mixer M-750 (production volume): 0.33m3 / 330 L Dosage of cement: Scale Dosage of aggregates: Volumetric or Scale Water dosage: Volumetric or Scale Number of separate aggregates: 1 / 2 / 3 / 4 Door opening: Hydraulic
