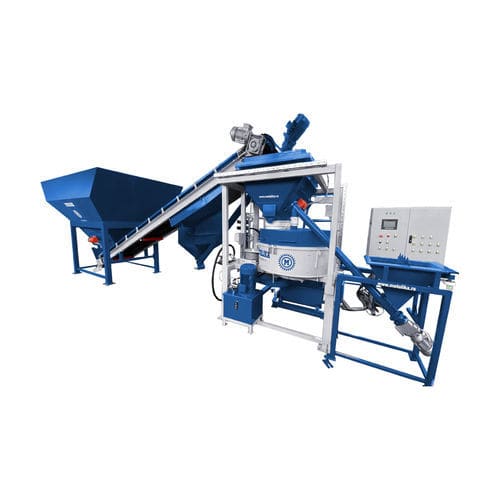

Stationary concrete mixing plant MBT-450V

automatic

MBT-450V Planetary concrete mixing plant contains PLANETARY type concrete mixer.
Manganese blades are changeable and adjustable in order to presume constant quality of mixed concrete. Scale for material (aggregate) and scale for cement (or other powder material) is positioned above mixer, and through measuring cell is connected to PLC which controls concrete production. Water is dosed through water meter (stabile pressure connection to water supply is required).
Aggregate from hopper to scale above the concrete mixer is loaded by belt conveyor. AUTOMATIC OPERATION MODE, ONLY ONE OPERATOR IS REQUIRED ON PLC. METALIKA designed MBT-450V Planetary concrete mixing plant in order to be suitable for mixing face mix concrete for concrete product making machines. Planetary mixer is best concrete mixing technology for face mix concrete. Main Features Concrete mixer is PLANETARY type MP-450 produced by METALIKA (450L / 0.225m3) Scale for aggregate and cement (above mixer) Hydraulic for door opening (automatic) Automatic operation mode (PLC with touch screen panel) Snail cement transporter Hopper for material storage 1,2,3 or 4 hoppers Mixers geometrical volume 450l Mixing volume – output 225l Aggregate and cement scale Yes, above mixer Automatic operation Yes (PLC) Door opening Hydraulic Drive Hydraulic
