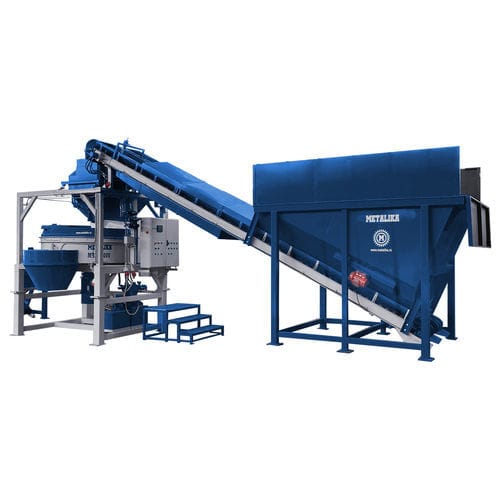

Stationary concrete mixing plant MBT-1000V

automaticcompactvertical

Compact concrete mixing plant contains mixer with vertical rotation axis (PAN concrete mixer made by METALIKA).
Manganese blades are changeable and adjustable in order to presume constant quality of mixed concrete. Scale for material (aggregate) and scale for cement is positioned above concrete mixer, and through measuring cell is connected to PLC which controls concrete production. Water is dosed through water meter (stabile pressure connection to water supply is required). Aggregate from hopper to mixer is loaded by belt conveyor. ALL OPERATIONS ARE AUTOMATIC, AND ONLY ONE OPERATOR IS REQUIRED. METALIKA designed MBT-1000V Concrete mixing plant in order to be suitable for mixing coarse mix (base mix) concrete for concrete block machines as RVP-3000, RVP-2000, or SVP-12. Mixers geometrical volume 1000l Mixing volume – output 500l Number of hoppers for storage aggregates 1 Aggregate and cement scale Yes, above mixer Automatic operation Yes (PLC) Door opening Hydraulic Drive Hydraulic Capacity (maximum output) 25 m3/h Concrete mixer type M-1000 „METALIKA“ (1000L / 0.5m3) Scale for aggregate and cement (above mixer) Hydraulic for door opening (automatic) Automatic operation mode (PLC touch screen panel) Snail cement transporter Hopper for material storage 1 / 2 / 3 or 4 hoppers
