Stationary concrete mixing plant MBT-750

automaticcompactvertical

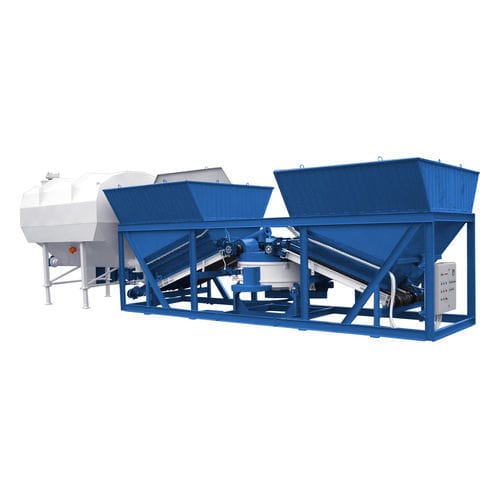

Compact MBT-750 Automatic concrete mixing plant contains mixer with vertical rotation axis. Manganese blades are changeable and adjustable in order to presume constant quality of mixed concrete. Scale for measure is positioned under the concrete mixer, and through measuring cell is connected to PLC which controls concrete production. Water is dosed through water meter (stabile pressure connection to water supply is required). Aggregates from hoppers to mixer is loaded by belt conveyor. AUTOMATIC WORKING MODE (PLC touch screen panel). METALIKA designed MBT-750 Compact concrete mixing plant in order to be suitable for mixing concrete on construction sites or near concrete block making machine. Easy for manipulate and transport by truck, forklift required. Concrete mixer type M-750 „METALIKA“ (750L / 0.33m3) Scale for aggregate and cement (under the mixer) Automatic operation mode Snail cement transporter with hopper for cement storage Hopper for material storage 1,2,3 or 4 hoppers Mixers geometrical volume 750l Mixing volume – output 0.33m3 Aggregate and cement scale Yes, under the mixer Automatic operation Yes Door opening Manual Drive Hydraulic
