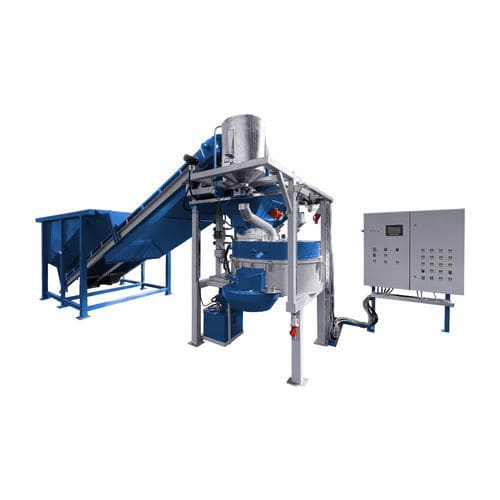

Stationary concrete mixing plant MBT-500V

automaticvertical

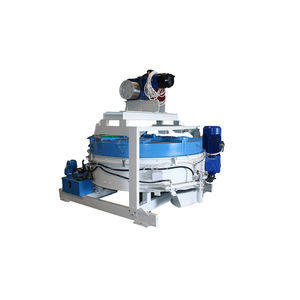

MBT-500V Concrete mixing plant contains mixer with vertical rotation axis (Basic PAN concrete mixer made by METALIKA).

Manganese blades are changeable and adjustable in order to presume constant quality of mixed concrete. Scale for material (aggregate) and scale for cement is positioned above mixer, and through measuring cell is connected to PLC which controls concrete production. Water is dosed through water meter (stabile pressure connection to water supply is required). Aggregate from hopper to mixer is loaded by belt conveyor. AUTOMATIC OPERATION MODE. METALIKA designed MBT-500V Concrete mixing plant in order to be suitable for mixing face mix and base mix concrete for concrete product making machines. One of the best seller concrete mixing plants at our company, long durability. Main Features Concrete mixer type M-500 „METALIKA“ (500L / 0.25m3) Scale for aggregate and cement (above mixer) Hydraulic for door opening (automatic) Automatic operation mode (PLC touch screen panel) Snail cement transporter Mixers geometrical volume 500l Mixing volume – output 250l Aggregate and cement scale Yes, above mixer Automatic operation Yes (PLC) Door opening Hydraulic Drive Hydraulic Hopper for material storage 1,2,3 or 4 hoppers
